1
3
5
7
9
11
13
2
4
6
8
10
12
14
TDO/TDI
TDI/VPP
TMS
TCK
GND
TEST/VPP
JTAG
VCC TOOL
VCC TARGET
J1 (see Note A)
J2 (see Note A)
V
CC
R1
47 k
(see Note B)
Ω
C2
10 µF
C3
0.1 µF
V /AV /DV
CCCC CC
RST/NMI
TDO/TDI
TDI/VPP
TMS
TCK
TEST/VPP (see Note C)
V /AV /DV
SS SS SS
MSP430Fxxx
C1
10 nF/2.2 nF
(see Notes B and E)
RST (see Note D)

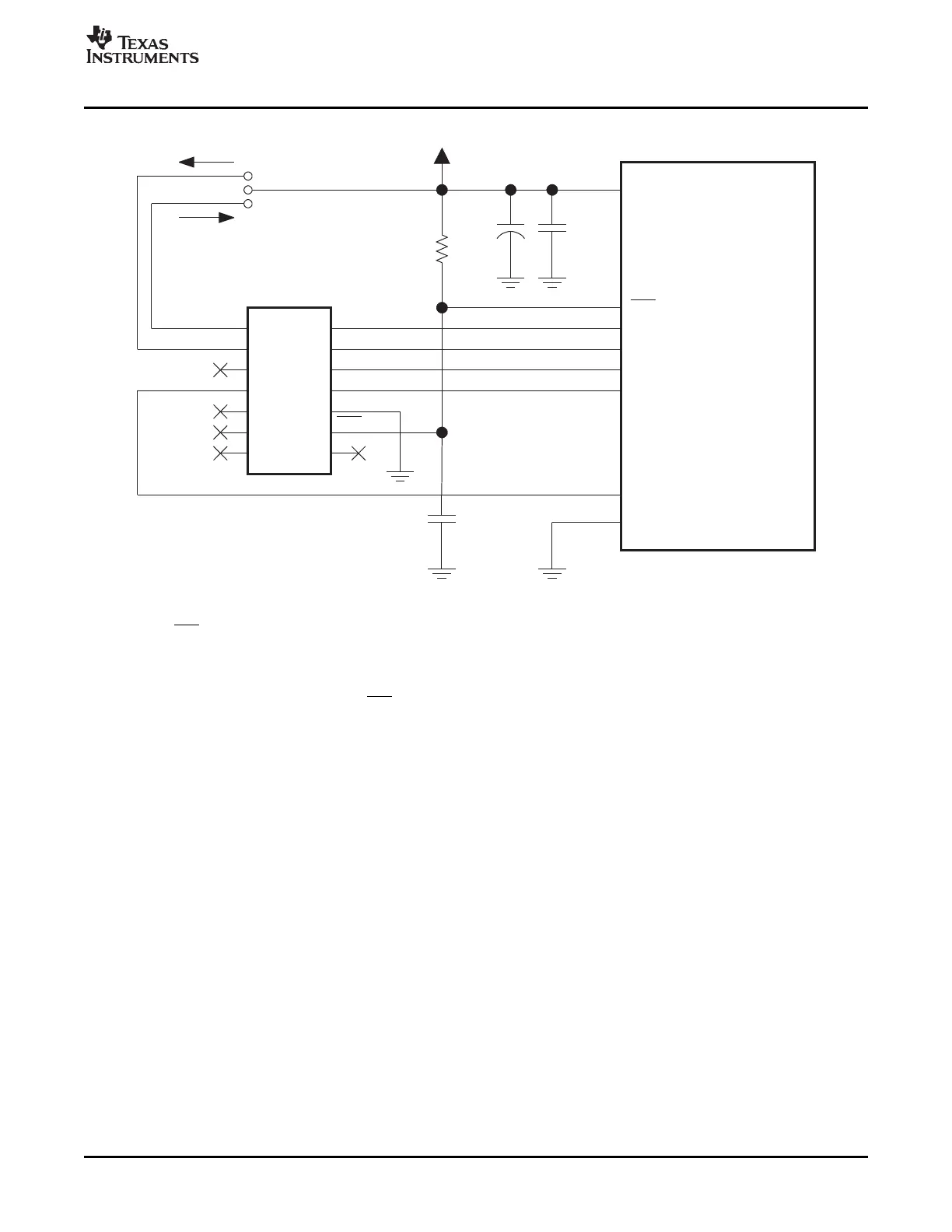

Signal Connections for In-System Programming and Debugging, MSP-FET430PIF, MSP-FET430UIF, GANG430, PRGS430
A Make either connection J1 (if a local target power supply is used) or connection J2 (if powering the from the
debug/programming adapter).
B The RST/NMI pin R1/C1 configuration is device-family dependent. See the respective MSP430 family user's guide for
the recommended configuration.
C The TEST/VPP pin is only available on MSP430 family members with multiplexed JTAG pins. See the device data
sheet to determine if this pin is available.
D The connection to the JTAG connector RST pin is optional when using 4-wire JTAG communication mode
capable-only devices and is not required for device programming or debugging. However, this connection is required
when using 2-wire Spy-Bi-Wire communication mode capable devices in 4-wire JTAG mode.
E When using 2-wire Spy-Bi-Wire communication capable devices in 4-wire JTAG mode, the upper limit for C1 should
not exceed 2.2 nF. This applies to both TI FET interface modules (LPT/USB FET).
Figure 3-1. Signal Connections for 4-Wire JTAG Communication
SLAU138F – June 2004 – Revised March 2007 Design Considerations for In-Circuit Programming 25
