www.ti.com

Connector J5

External power connection

Remove R8 and jumper R9

LED connected to pin 12

Jumper J6

Open to disconnect LED

Orient Pin 1 of MSP430 device

Jumper J7

Open to measure current

Schematics and PCBs

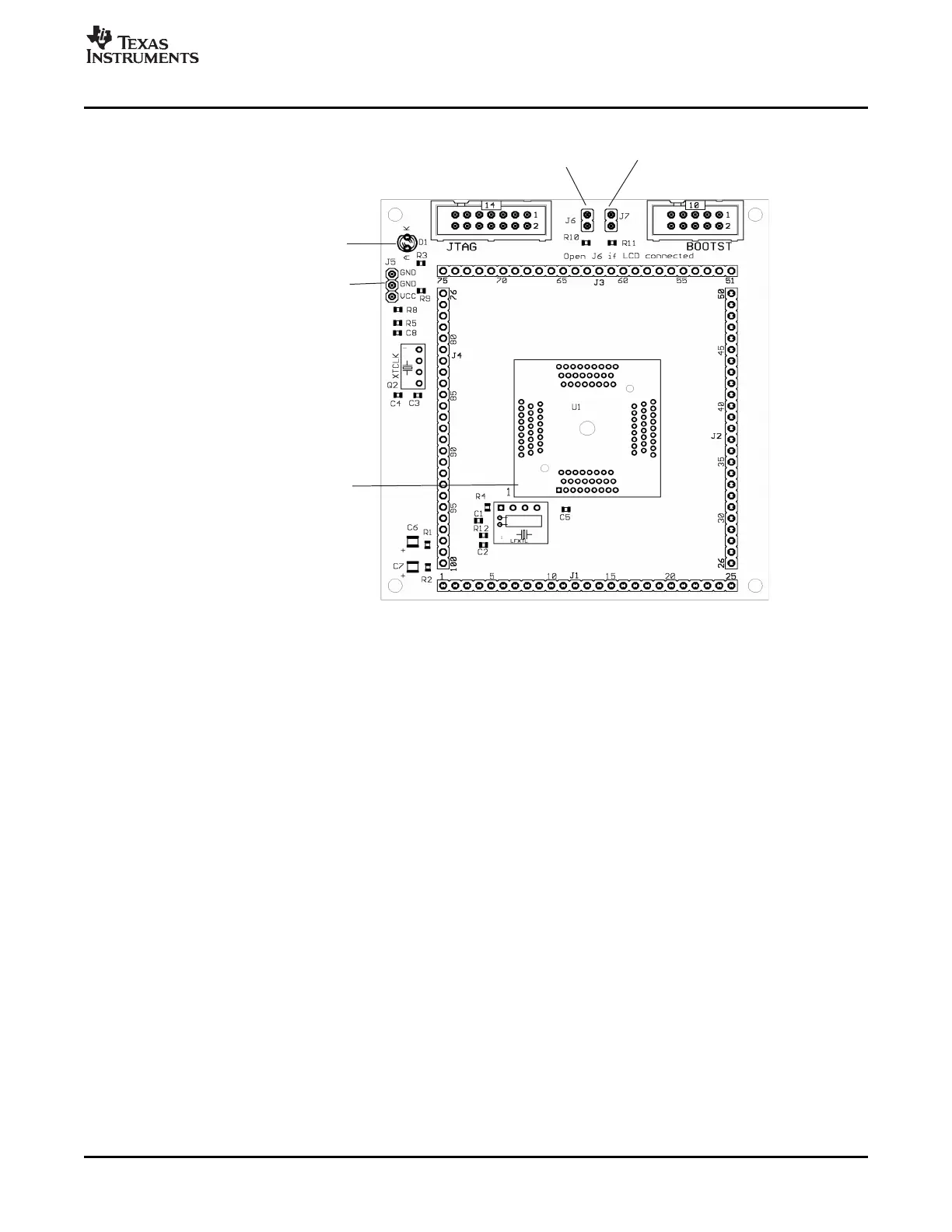

Figure B-18. MSP-TS430PZ100 Target Socket Module, PCB

SLAU138F – June 2004 – Revised March 2007 Hardware 55

Submit Documentation Feedback
