www.ti.com
LED connected to P1.0
Jumper J5
Open to disconnect LED
Orient Pin 1 of
MSP430 device
Connector J4
External power connector
Jumper J1
Open to measure current
R6
Ensure value is 82 Ω
Schematics and PCBs

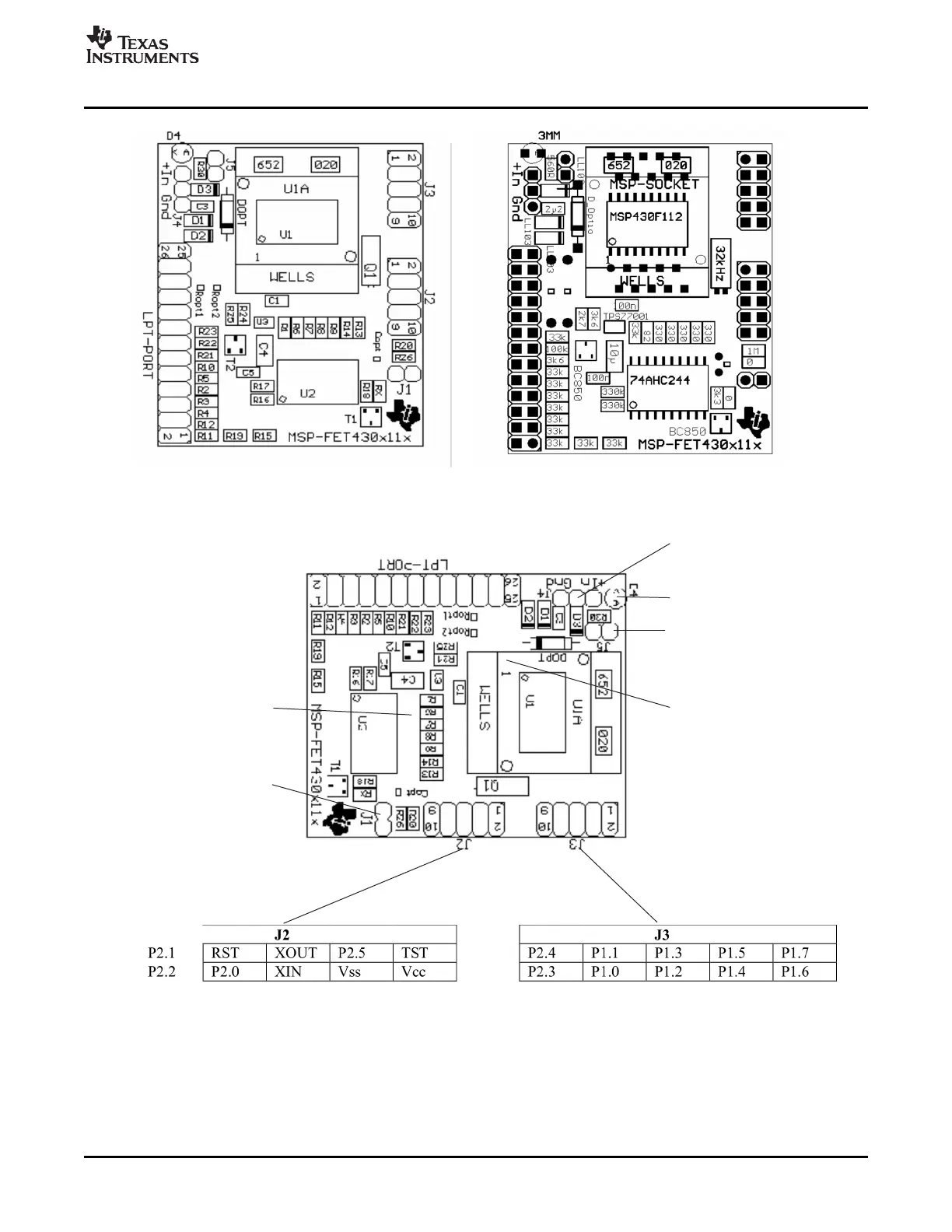

Figure B-2. MSP-FET430X110, PCB
SLAU138F – June 2004 – Revised March 2007 Hardware 39
Submit Documentation Feedback
