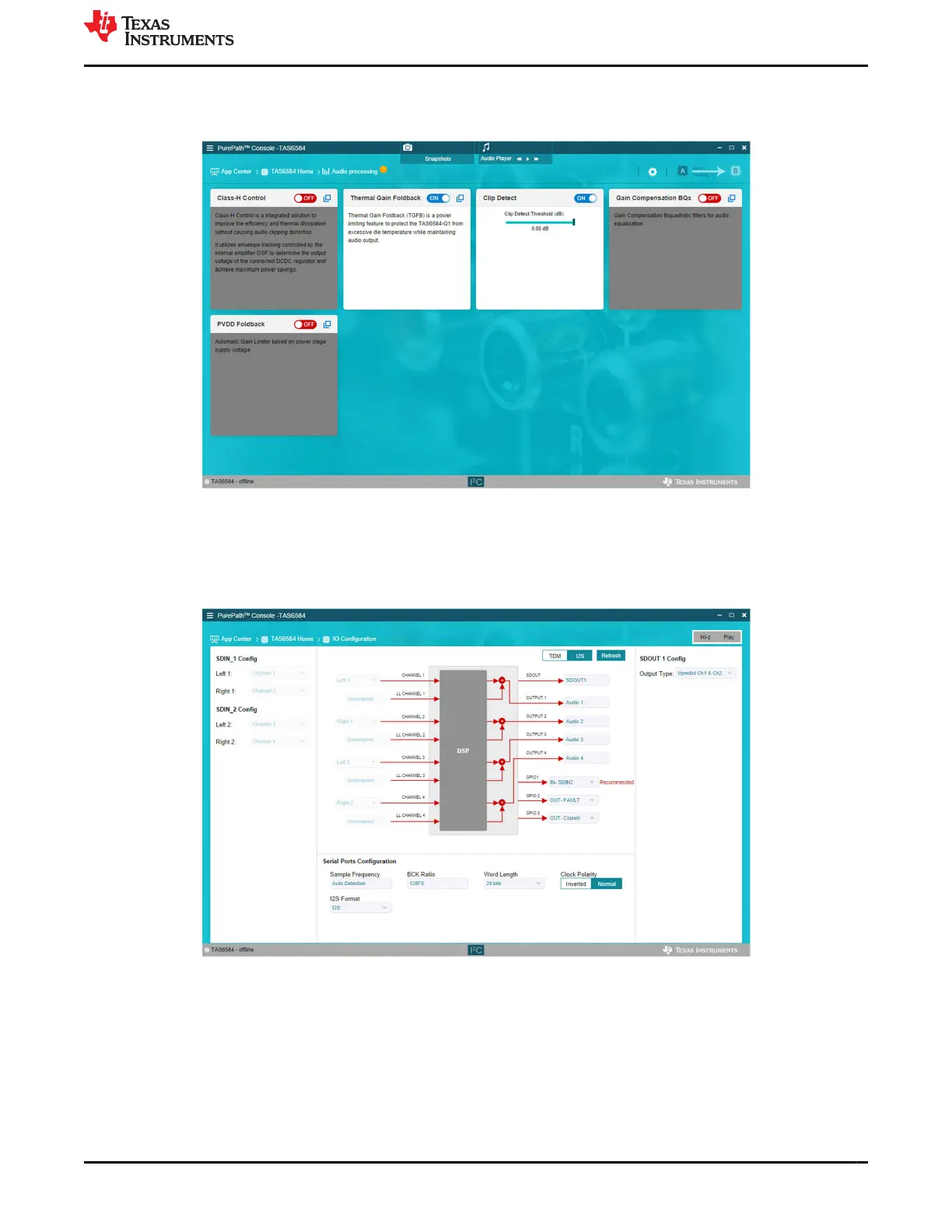

2.5 Audio Processing Window
Click on the Audio Processing Options box in the Home Window and the following window is displayed.
Each box has a defined process. Click on the on/off slider to turn a process. Each box can be opened to modify
the process. The Clip Detect box is modified at the Audio Processing Window level.
2.6 IO Configuration Window
Click on the IO Configuration box in the Home Window and the following window is displayed.
Although this window is configured at the start up of the GUI, the values can be updated after the initial
configuration process. This window allows all the input and output setting for the device. I2S and TDM can be
selected as well as the Normal digital audio path and the Low Latency paths. The speaker connections and
GPIO settings can be selected.
TI Confidential - Maximum Restrictions
www.ti.com Software Overview
SLOU527 – DECEMBER 2021
Submit Document Feedback
TAS6584-Q1 EVM User's Guide 7
Copyright © 2021 Texas Instruments Incorporated
