DDR2CLKOUT
DDR2CLKOUT
DCE0
DSDCKE
DSDRAS
DSDWE
DSDDQM[3:0]
DSDCAS
DBA[2:0]
DEA[13:11,9:0]
DEA[10]
www.ti.com Peripheral Architecture
2.4.4 Deactivation (DCAB and DEAC)
The precharge all banks command (DCAB) is performed after a reset to the DDR2 memory controller or
following the initialization sequence. DDR2 SDRAMs also require this cycle prior to a refresh (REFR) and
mode set register commands (MRS and EMRS). During a DCAB command, DEA10 is driven high to
ensure the deactivation of all banks. Figure 6 shows the timing diagram for a DCAB command.

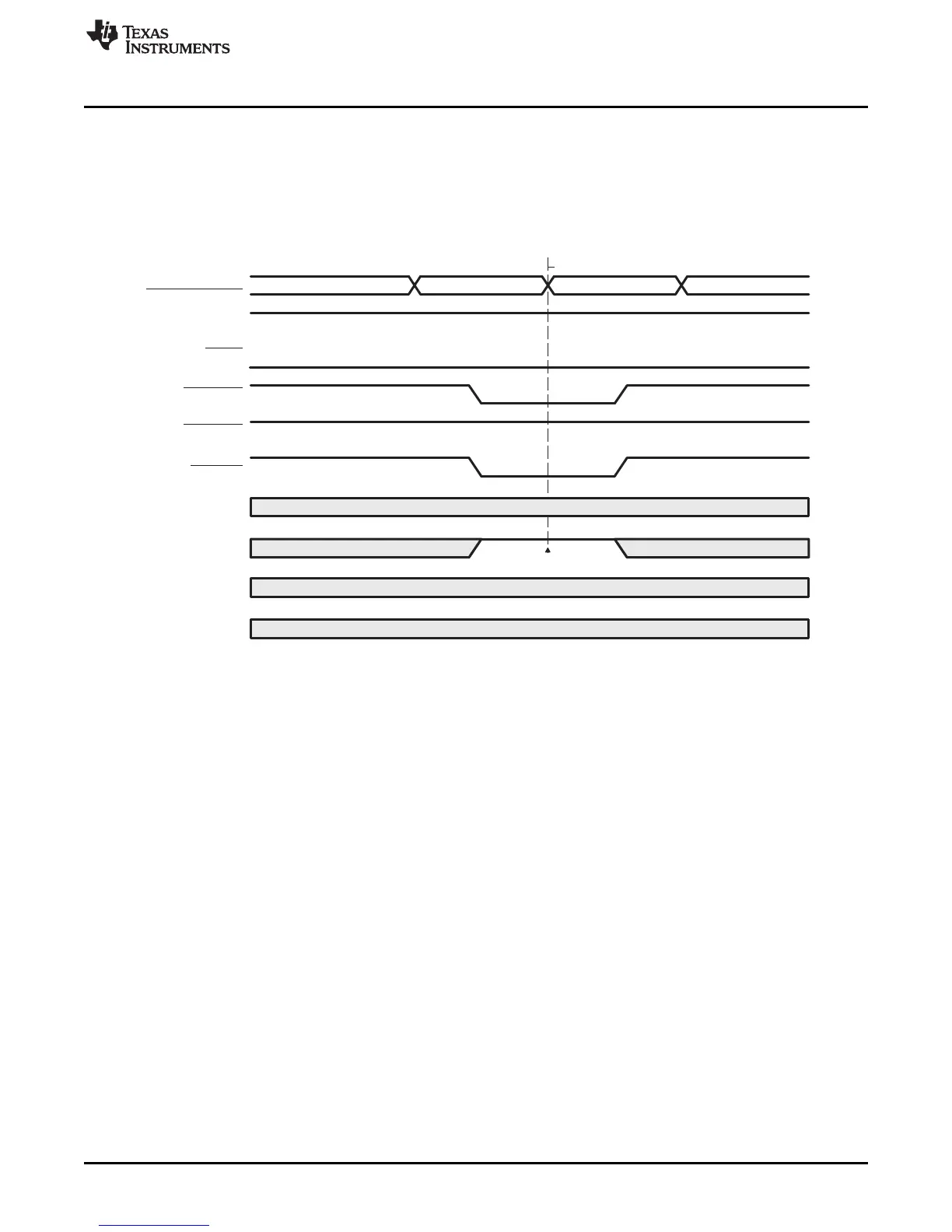

Figure 6. DCAB Command
17
SPRU970G– December 2005– Revised June 2011 C6455/C6454 DDR2 Memory Controller
Submit Documentation Feedback
Copyright © 2005–2011, Texas Instruments Incorporated
