Texas Instruments TMS320C6455

DEAC
DDR2CLKOUT
DDR2CLKOUT
DCE0
DSDCKE
DSDRAS
DSDWE
DSDDQM[3:0]
DSDCAS
DBA[2:0]
DEA[13:11,9:0]
DEA[10]
Peripheral Architecture www.ti.com

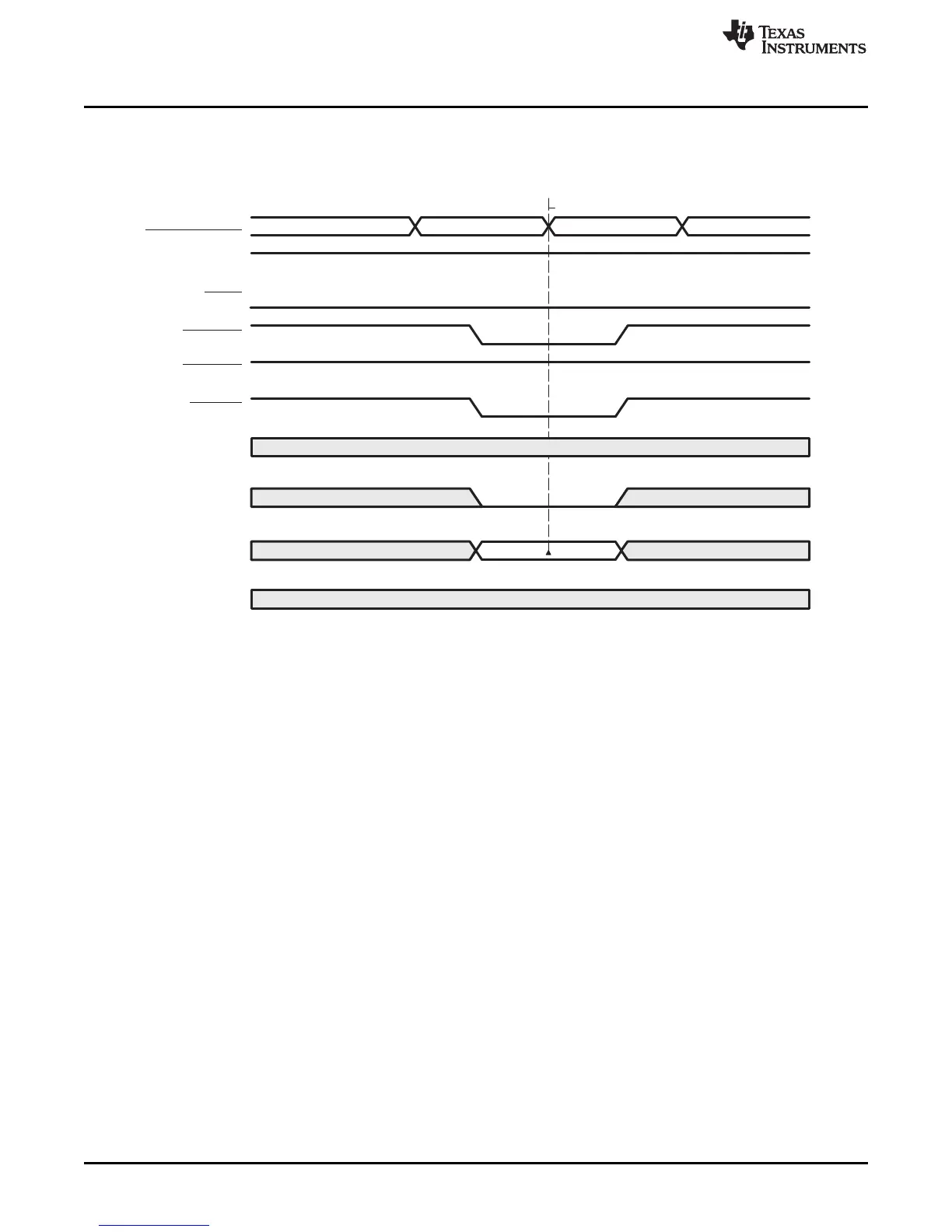

The DEAC command closes a single bank of memory specified by the bank select signals. Figure 7 shows
the timings diagram for a DEAC command.
Figure 7. DEAC Command
