The 2004 computer features NEMA 4 packaging and
electronics contained in a sealed compartment cooled by
a unique moving air heat exchanger.

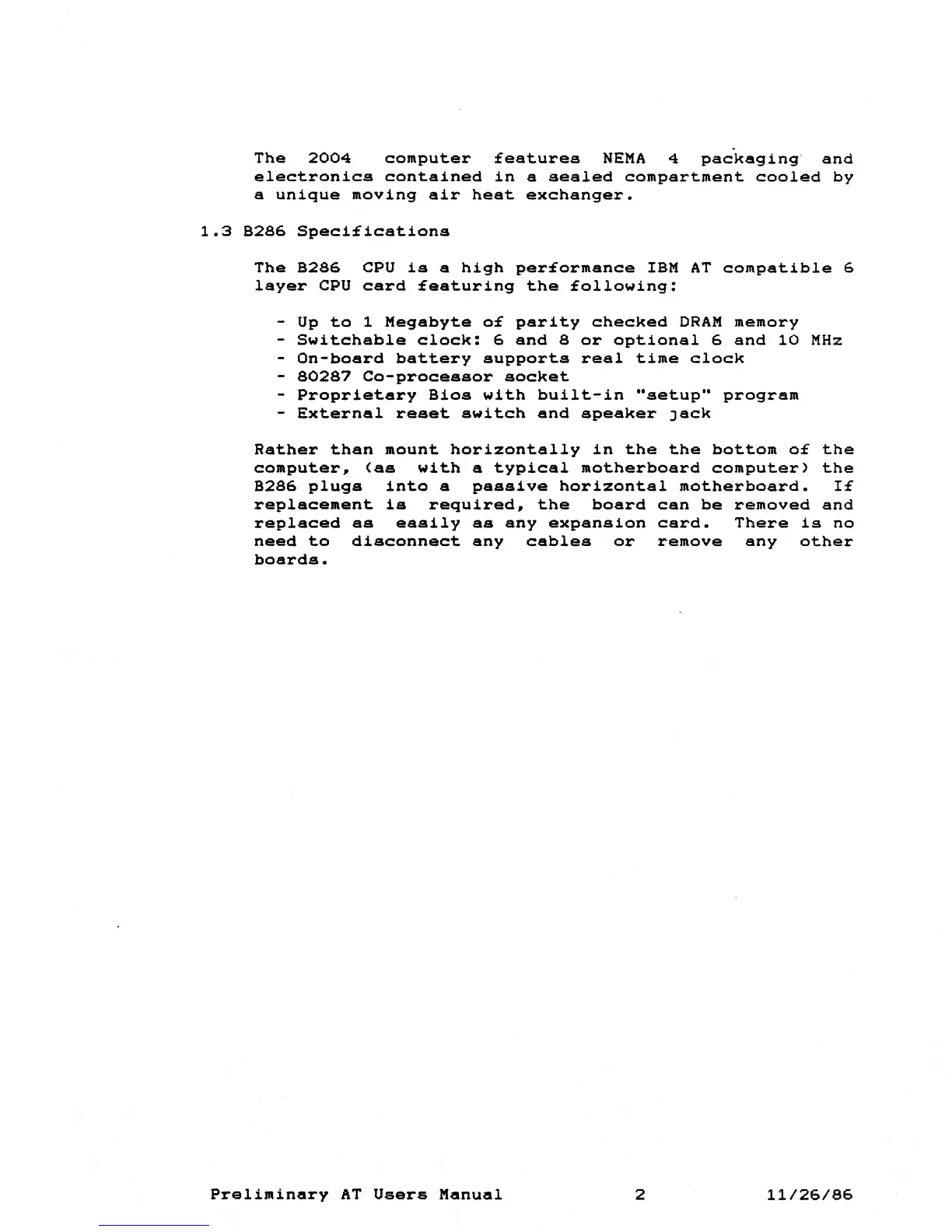

1.3 B286 Specifications
The B286 CPU is a high performance IBM AT compatible 6
layer CPU card featuring the following:
- Up to 1 Megabyte of parity checked DRAM memory
- Switchable clock: 6 and 8 or optional 6 and 10 MHz
- On-board battery supports real time clock
- 80287 Co-processor socket
- Proprietary Bios with built-in "setup" program
- External reset switch and speaker Jack
Rather than mount horizontally in the the bottom of the
computer. (as with a typical motherboard computer) the
B286 plugs into a passive horizontal motherboard. If
replacement is required, the board can be removed and
replaced as easily as any expansion card. There is no
need to disconnect any cables or remove any other
boards.
Preliminary AT Users Manual
2 11/26/86
