B. If you use bobbin thread, before placing it on the stand you should take the plastic cap out of the thread stand.
C. In order to sew correctly on the machine, the thread should be run exactly as shown on Figure 9.
If you are using a thread tensioner, first you must thread the thread through the rear eye of the thread guide (1). Then lead
the thread between the two tensioner discs (2), as per Figure 9. Thread the thread from the back of the front eye of the
thread guide. Lead thread to the front of the machine, lead it from the top to the thread guide (3) and eye (4).

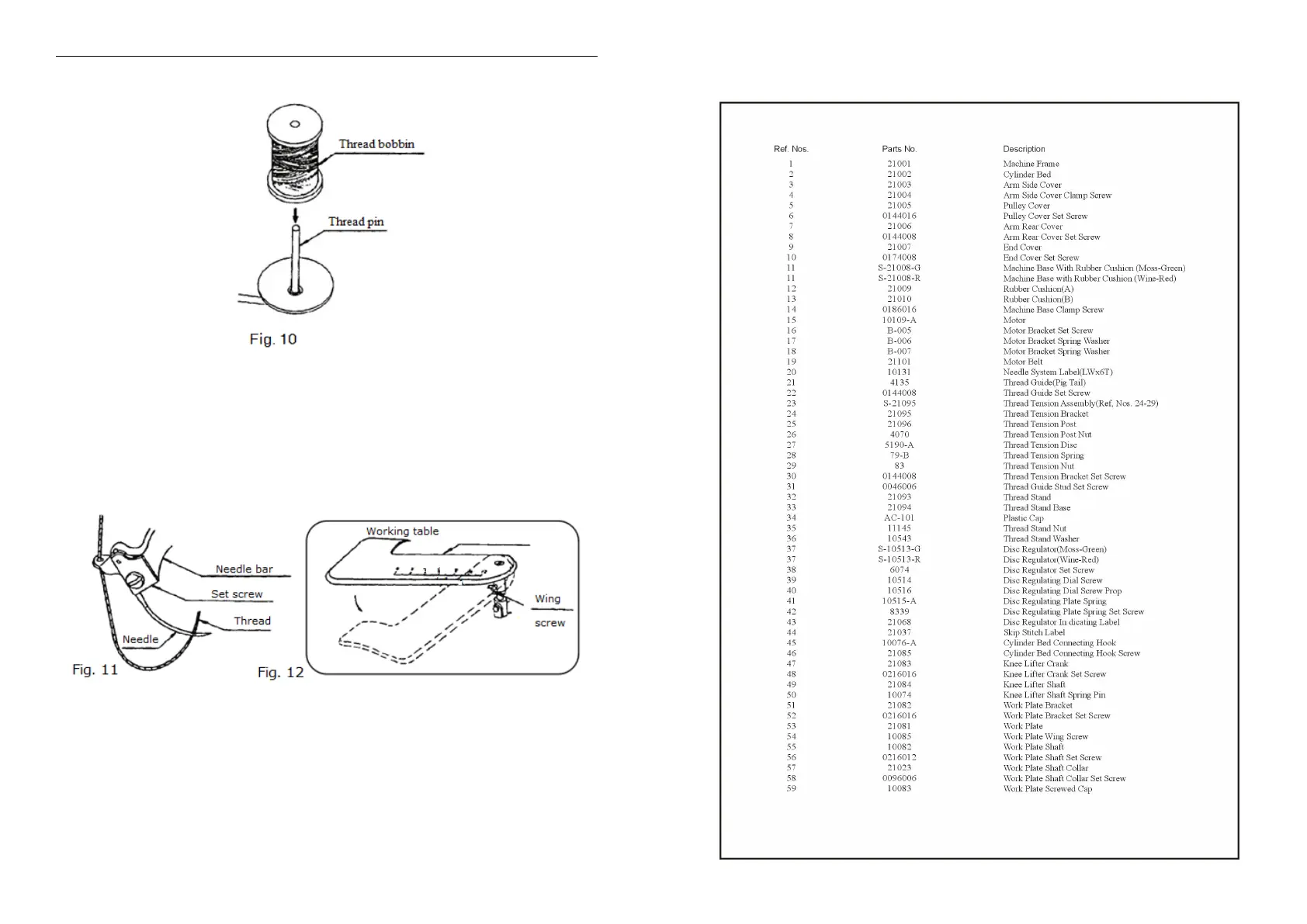

Then make sure that the needle is at the extreme left position. Thread the thread from the bottom, through the needle’s eye,
as shown on Figure 11.
It is easier to thread the needle eye, when the working table is open after loosening the set screw (Figure 12).
8
EN
TEXI Compacta
