TEXI Compacta
3. Setting the machine in a working place
Unpack the machine together with all parts and accessories.
A. Positioning
Set the machine on a stable surface, preferably on its right, front corner. Fasten the machine to the table edge with clamps,
which are attached to the equipment. The clamp is slipped into front or right groove in the machine.
Choice of locking groove depends upon how user wants to set the machine on the table. Make sure the machine is fixed and

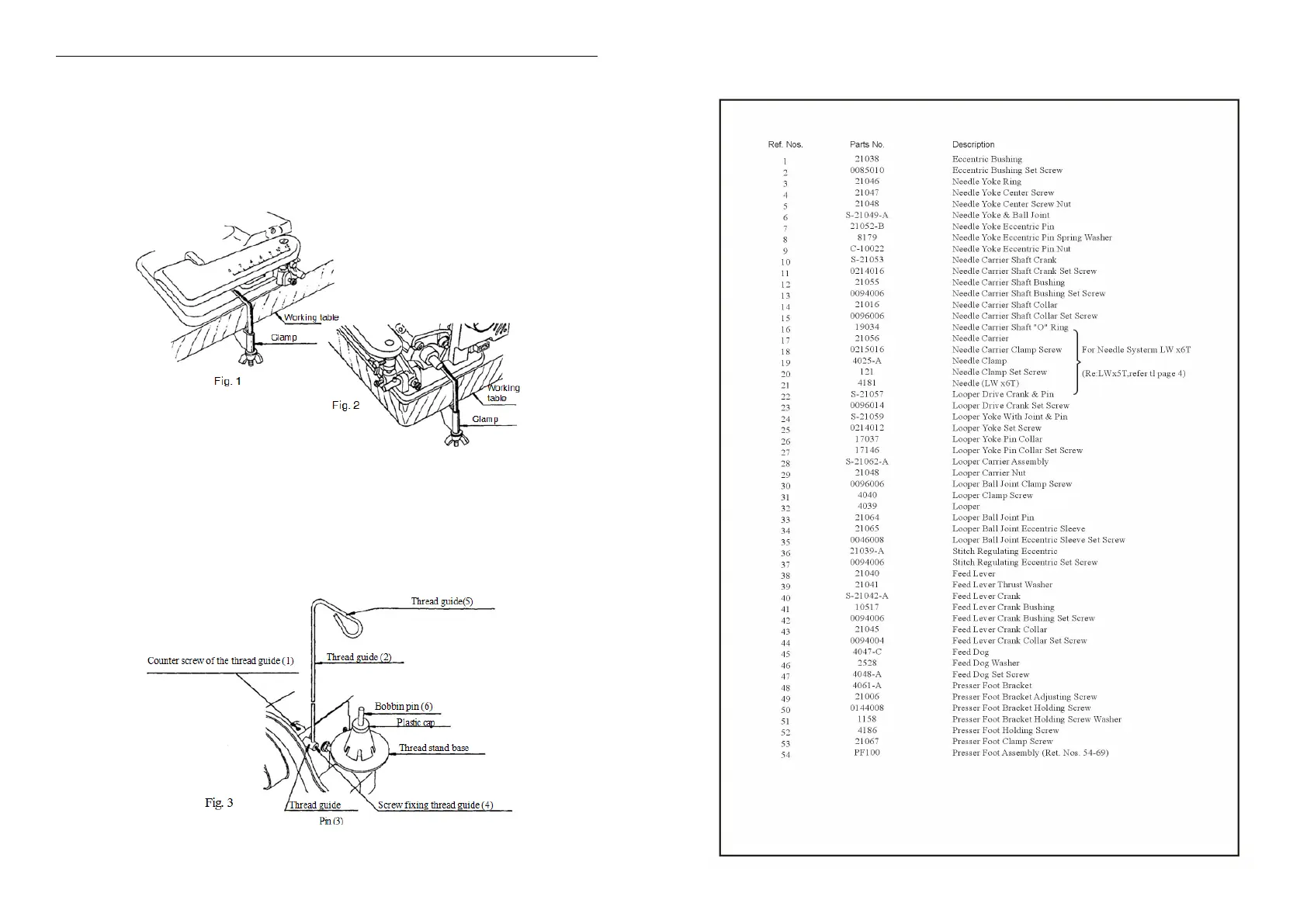

will not fall down from the table during work. Figure 2 shows how to fix the machine.
B. Installation of thread stand
First, loosen the set screw of the thread guide (1) and place the thread guide (2) and bolt assembly (3) in the hole at the back
of the machine. Then tighten the set screw (1).
Loosen the screw (4) and adjust the guide head (5) in the direction of the spool pin (6). Then tighten the screw (4).
