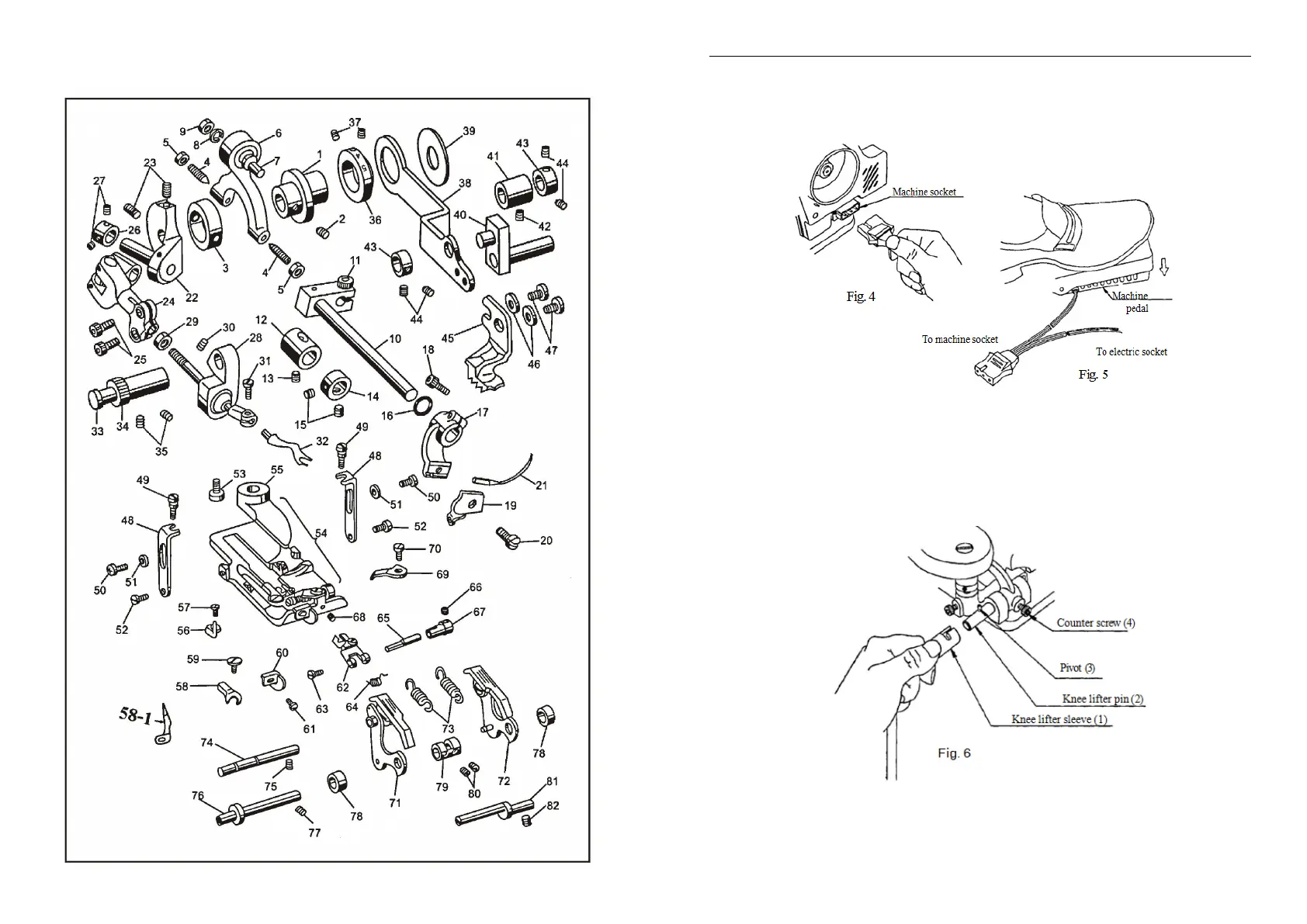

D. Knee lifter installation
Put the sleeve (1) on the free end of the shaft (2) and put the pin (3) into the groove of the L-shaped sleeve.
In case of adjusting of the knee lifter, unscrew the set screw (4) and adjust the knee lifter angle. Then tighten the set
screw (4).
5
EN
TEXI Compacta
C. Pedal installation
Insert the plug of the pedal, with three holes, into an outlet on the right side of the machine, and the electrical plug insert into
the wall outlet.
Put the pedal on the floor and try to set the speed of the machine by pressing on the pedal.
