8
Gear
Drive
Midsize

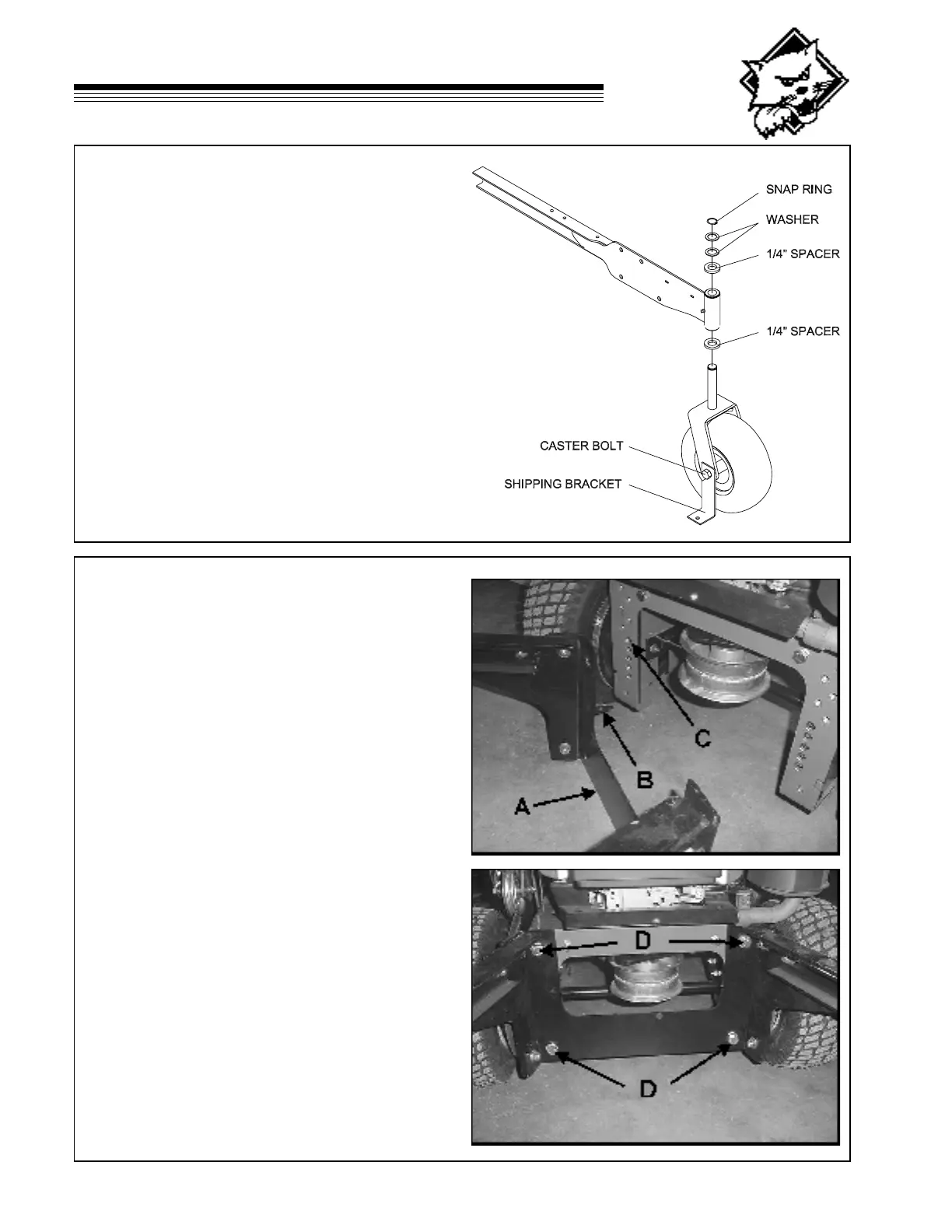

ASSEMBLY/SET-UP INSTRUCTIONS
6. Remove belt cover from cutterdeck cradle.
7. Remove the cutterdeck cradle A from the crate
and insert guide pins B into top hole C in power
unit.
8. Attach cutterdeck cradle to power unit using (4)
M12-1.75 X 35 bolts at D and tighten securely.
9. Remove support from rear of power unit.
FLOATING CUTTERDECK ATTACHMENT
1. Unbolt the caster wheels and the shipping
brackets from the crate.
2. Remove the shipping bracket from the caster
wheel by loosening the caster bolt and sliding the
shipping bracket off and retighten caster bolt.
3. Remove snap ring, (2) washers and (1) 1/4"
spacer from one caster wheel assembly.
4. Insert caster yoke through cradle bushing from
the bottom up and place (2) washers and (1) 1/4"
spacer removed in Step 3 back onto the shaft
above the cradle bushing and secure using the
snap ring removed in Step 3 as shown.
5. Repeat for other caster wheel assembly.
