9
Gear
Drive
Midsize
ASSEMBLY/SET-UP INSTRUCTIONS
5. Position power unit behind the crate and
cutterdeck.
6. With the cradle raised above the cutterdeck, roll
the front of the cradle and power unit up and over
the cutterdeck and crate.

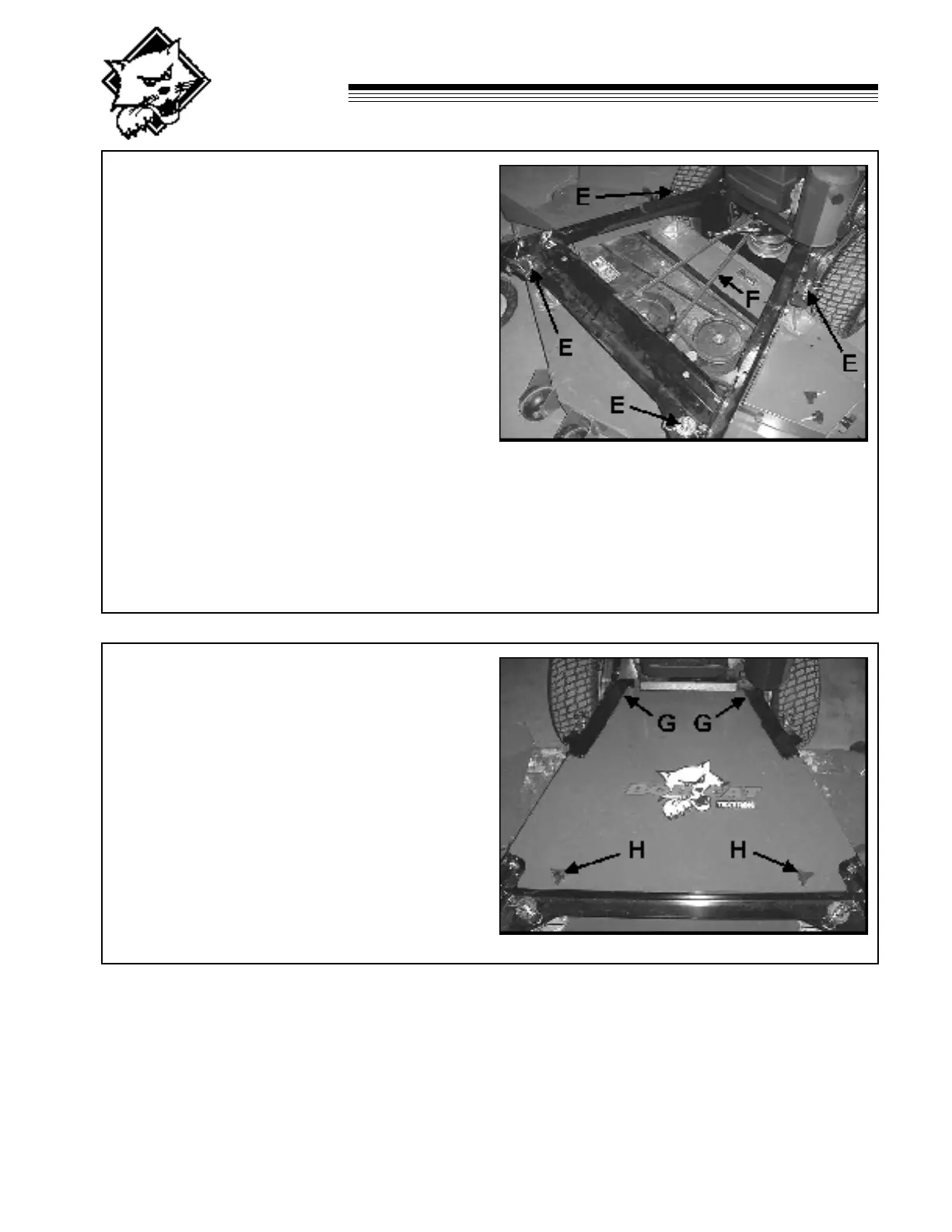

7. Align height of cut pins E on cutterdeck with the
bushings on the cradle and lower the cradle so
pins pass through bushings.
8. Install washers and hairpins through the height of
cut pins at the appropriate hole for the desired
height of cut.
NOTE: Height of cut chart is located on each
side of the cutterdeck or in the Operation &
Safety Manual.
9. Loop the PTO belt F around the electric clutch
pulley. Using a 3/8" ratchet wrench or 3/8"
breaker bar rotate the PTO belt idler while looping
the PTO belt around the cutterdeck pulley.
10. Install belt cover by inserting tabs at the rear of
the belt cover underneath the side rails at G and
fasten with knobs H.
