ADJUSTMENTS
REAR DECK ROLLERS

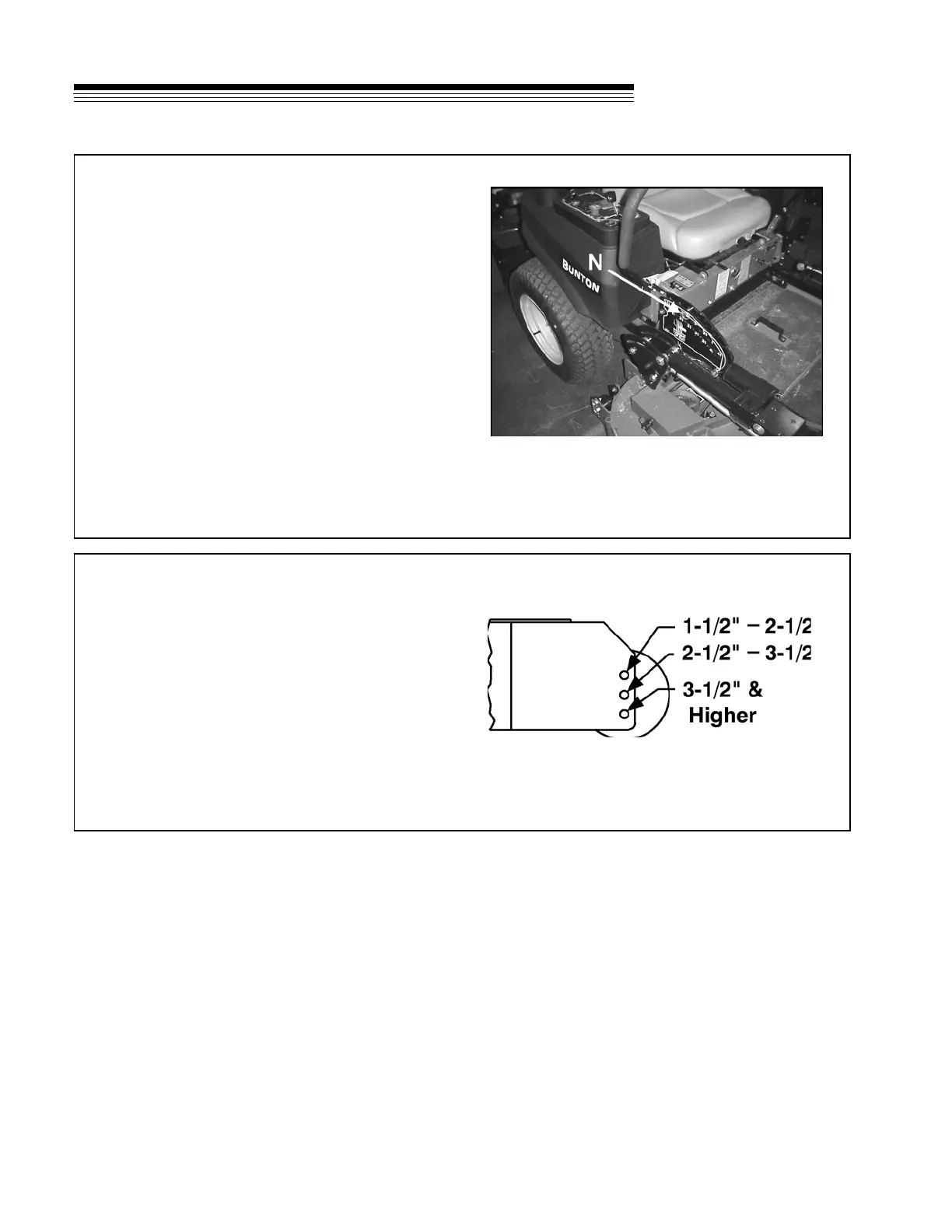

The rear outside deck rollers are adjustable up and
down to provide improved deck flotation and scalping
protection at various heights of cut. They are not
intended to ride continuously on the ground. Adjust
no closer than 3/8" (10mm) to the ground.
Height of cut ranges for roller adjustment
HEIGHT OF CUT
The height of cut is set by moving height of cut pin N
to the hole designated for the height of cut desired.
To change the height of cut:
1. Raise the deck to the highest position.
2. Move pin N to the selected hole.
3. Lower the deck until the lift lever is stopped by
the pin.
NOTES:
– Height of cut may vary due to the amount of tread
on the tires, tire diameter or inflation pressure.
– For best results, adjust the rear deck rollers for
the height of cut to be used (see below).
