PUSH ARMS
The push arm rod ends must be adjusted evenly to:
– locate the deck perpendicular to the front-to-rear
axis of the machine; and
– so the notch at the front of the engine deck clears
the push arm bracket on the rear of the
cutterdeck when the cutterdeck is raised to the
transport position.

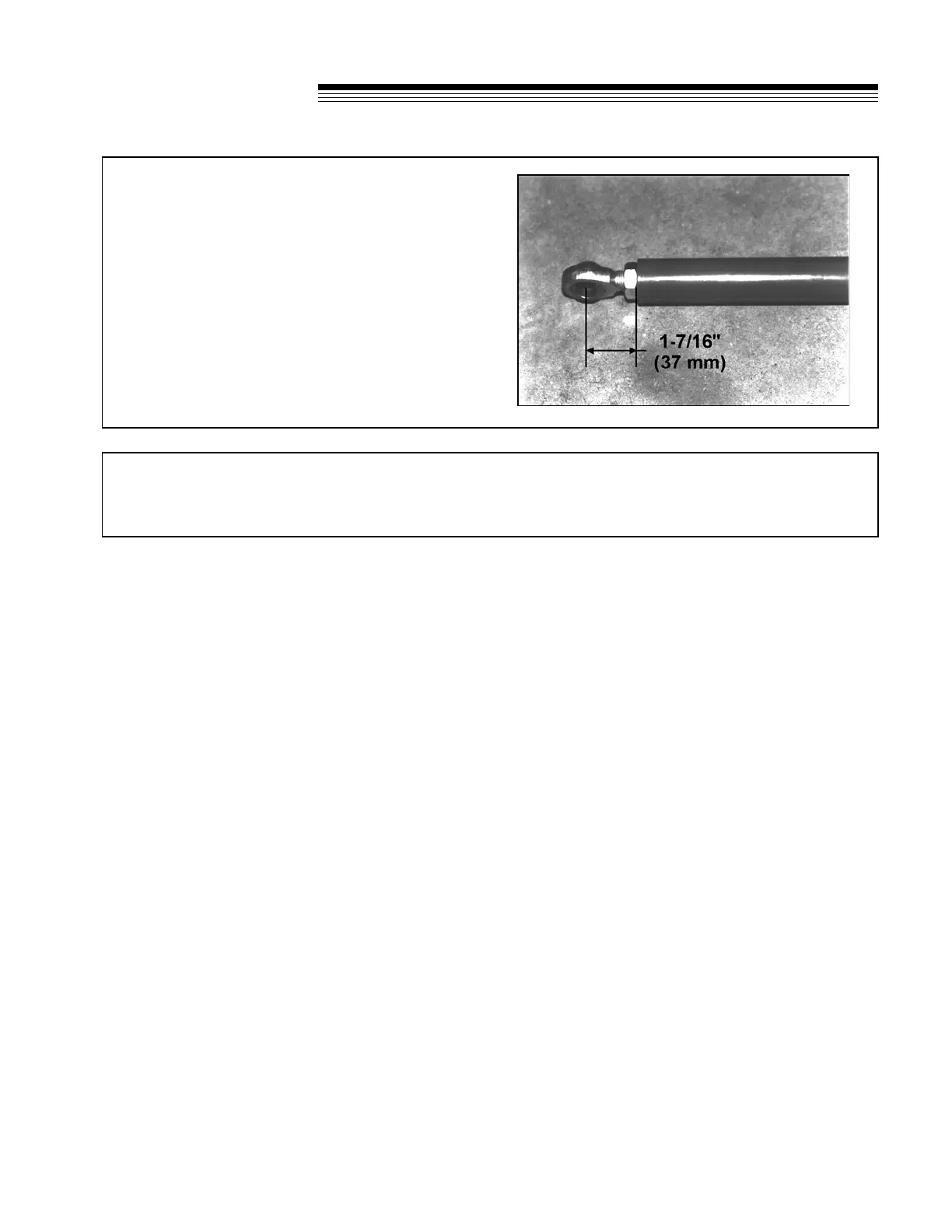

Adjust the rod end length to 1-7/16" (37 mm) to start.
If any additional adjustment is required, adjust both
rod ends so the same number of threads show.
BELTS
All belts are tensioned by spring loaded idlers. No adjustment is required.
ADJUSTMENTS
