BZT 2000
Series
ASSEMBLY AND SETUP
2. Set tire pressures to 14 lbs/in
2
(1.0 kg/cm
2
). Tires are overinflated for shipping.
3. LEVEL CUTTERDECK
To level decks, follow Steps a-d:

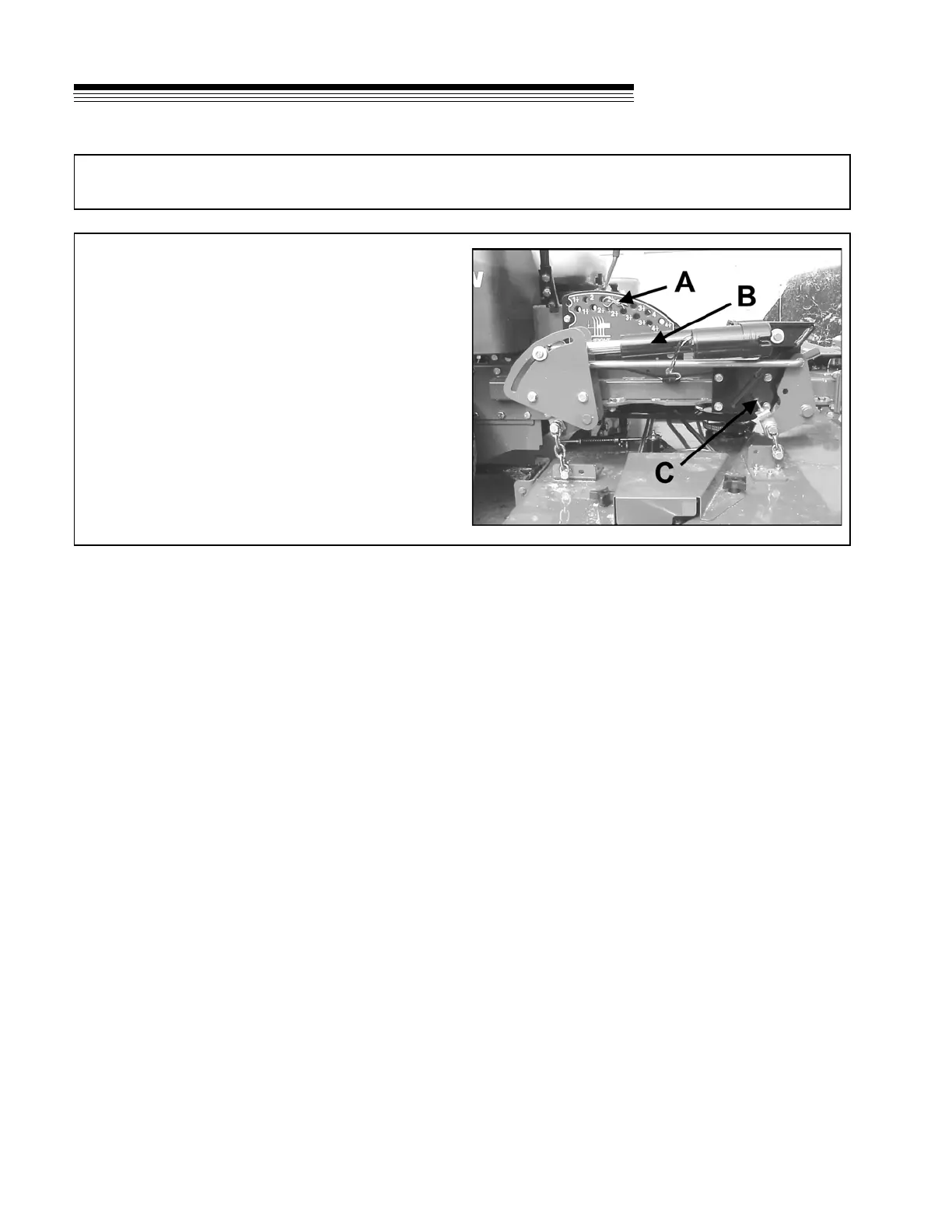

a) Remove the height of cut pin A and raise the
cutterdeck to the 3" height of cut position.
b) Locate (2) 3" tall blocks just inside the front rollers
and (2) 2-7/8" tall blocks just inside the rear
rollers.
c) Lower the deck until it is resting on the blocks and
there is plenty of float for the actuator B.
d) Loosen the jamnuts on the height of cut clips.
Adjust the thread rolling screws C on the front
and rear chains until the chains just become tight.
Tighten the jamnuts against the clips.
