3. In stall the two 90 de gree fit tings
in the side ports of the se lec tor
valve with the hose con nec -
tions fac ing up.
(See Photo C--9)
4. In stall the straight fit tings in the
bot tom of the se lec tor valve
with the with the 1/4" pipe nip -
ples and quick con nec tors.
(See Photo C--9)
5. In stall the 45 de gree fit tings in
the top ports of the se lec tor
valve with the an gles point ing in
to wards the trac tor.
(See Photo C--9)
6. Se cure the valve on the mount ing bracket us ing the 3/8 locknuts. The side ports of the valve should be
on the in side, to ward the trac tor, with the se lec tor knob to ward the rear. (See Photo C--9)
7. Lo cate the two hoses that were mounted to the quick con nec tors. Con nect the one from the front of the
aux il iary valve to the front side port of the se lec tor valve. Con nect the hose from the rear of the aux il iary
valve to the rear side port.
8. Con nect the hoses from the 3 point hitch to the top ports, plac ing the hose from the rod end of the the lift
cyl in der on the top rear port, and the re main ing hose on the top front port. When prop erly con nected
the 3 point hitch will drop and float when the aux il iary lever is pushed to the full for ward “FLOAT” po si -
tion.
SELECTOR VALVE appendix C-6

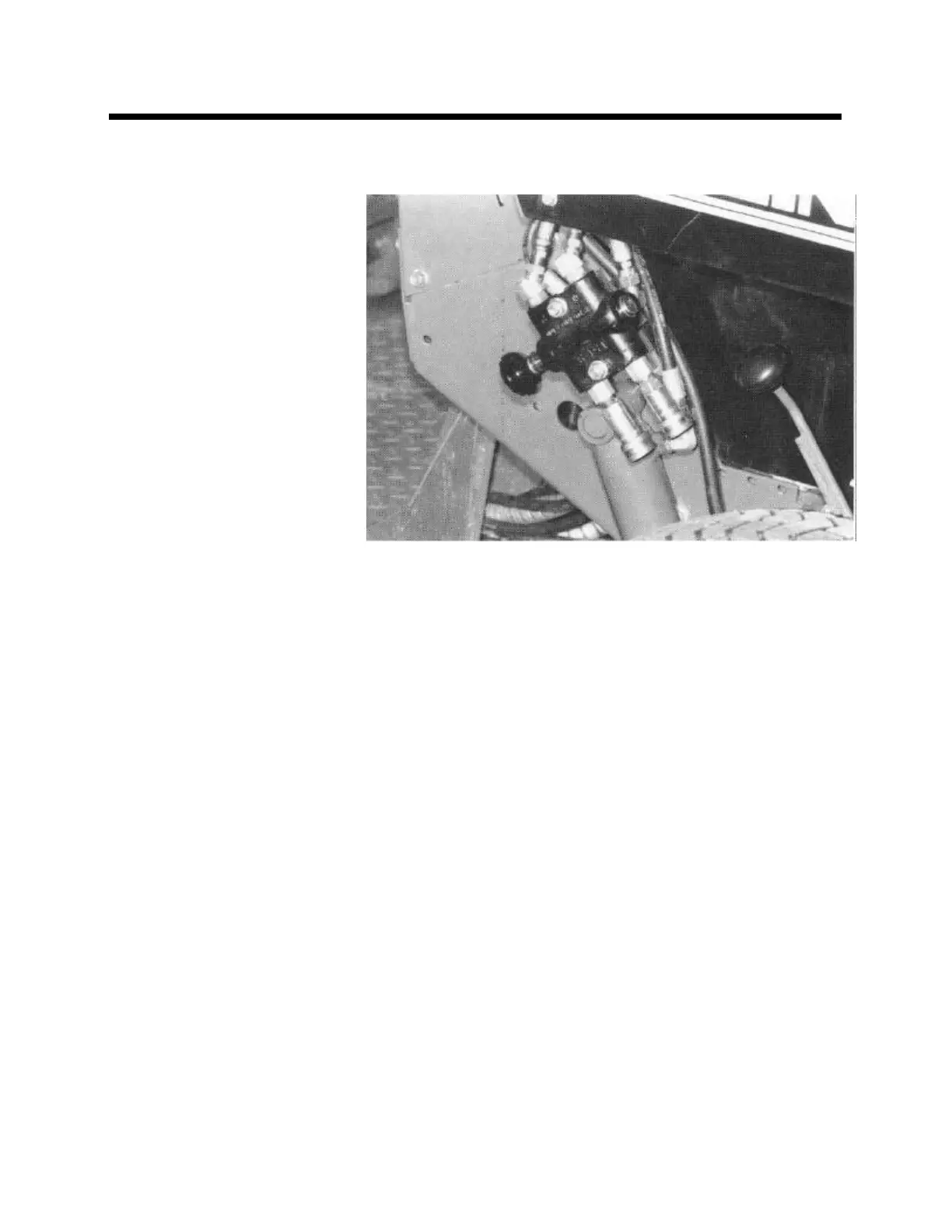

Photo C-9
