In addition to the above components, it is recommended to install the following components for easy
operation and maintenance,
A deaerator for the leakage of oxygen or other gases from the steam source.
Shut-off valves.
A manometer for measuring the pressure of the steam in the heating coil.
A thermometer pressure resistant for indication of the temperature of the steam
A filter for contaminants.

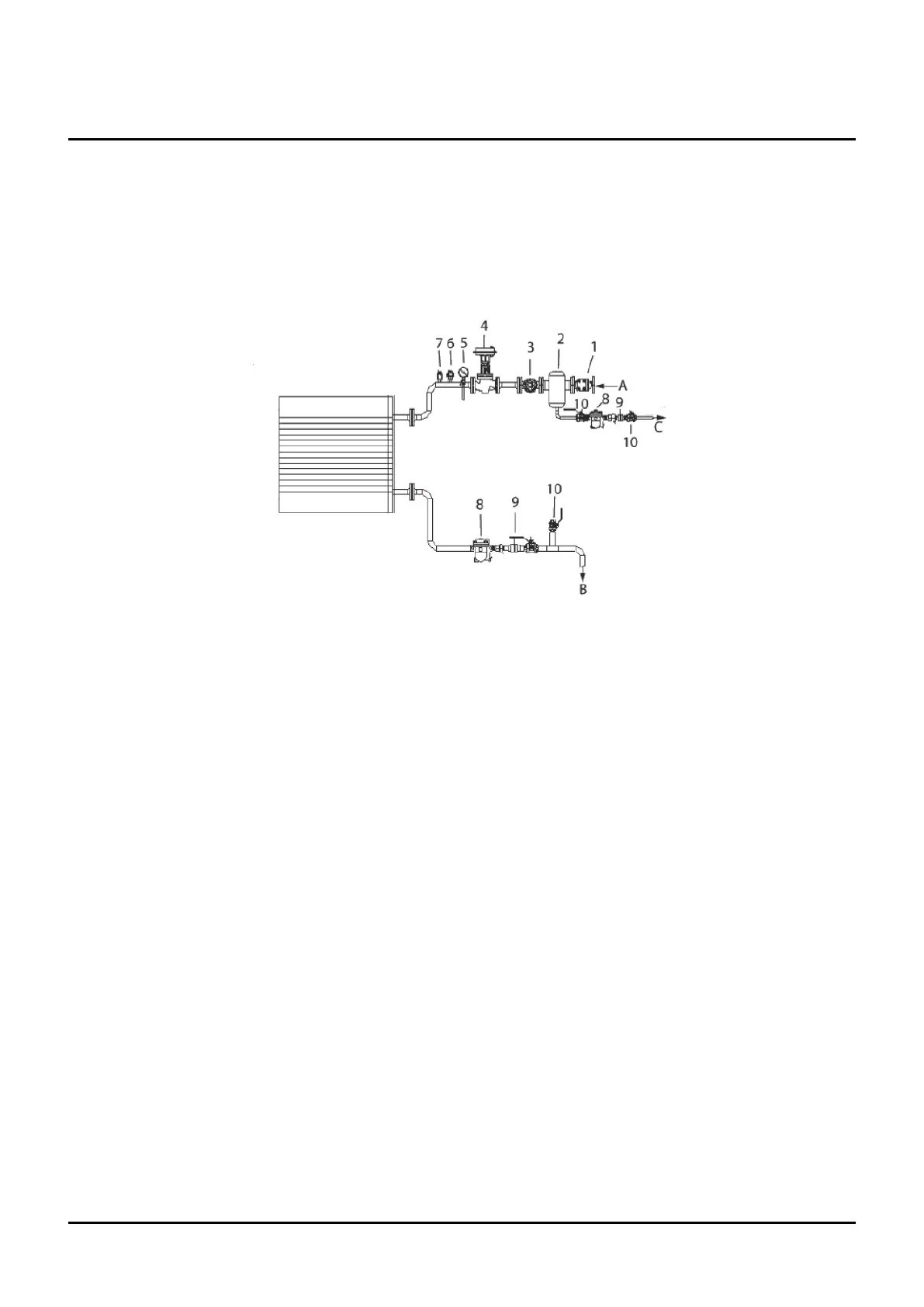

A. Steam source - B. Dehumidifier return - C. Drain condensate return
1. Filter steam
2. Droplet separator
3. Poppet valve
4. Steam valve
5. Manometer
6. Thermal deaerator
7. Vacuum breaker condensation
8. Condensate drain (body floating)
9. Modulation check valve
10. Ball valve (stop)
Information about connections.
Note the following considerations when connecting a source of steam to dehumidifier
If a manometer is installed on the steam pipe, its measurement range cannot be less than the
maximum pressure of the point at which it is installed.
It is recommended to install an additional shut-off valves on the output of the heat exchanger
after a drainage of condensation to facilitate the installation of a pressure gauge. This pressure
gauge is used to quickly indicate any counter-pressure can occur in the condensate system in case
of functional deviations during operation.
