TFT Tornado Series User Manual

10
INSTALLER SUPPLIED
TERMINAL BOX
**Note
To avoid excessive voltage drop at monitor operator
station, do not lengthen factory supplied monitor
cable. Power cable selection is critical.
Voltage supplied to TERMINAL BOX should not fall
below 13 volts when monitor is in operation.
RED
RED
BLACK
BLACK
BLUE
BLUE
WHITE
WHITE
RED
BLACK
TYPICAL TERMINAL BOX
CONNECTIONS
Max Length
Recommended Cable Gauge
40ft...........14AWG
Gauge
13/C-20
POSITION DISPLAY
(sec 5.7)
BLUE
WHITE
INSTALLER SUPPLIED INPUTS:
CANBUS
TOGGLE SWITCH
JOYSTICK
-or-
65ft...........12AWG
80ft..........2-14AWG
105ft..........10AWG
130ft.........2-12AWG
MULTIPLE OPERATOR STATIONS MAY BE INSTALLED. ALL
COMMUNICATION PAIRS (BLUE & WHITE) AND POWER
PAIRS (RED & BLACK) MUST BE CONNECTED IN TERMINAL
BOX OR ANOTHER OPERATOR STATION.
INSTALLER SUPPLIED
AUXILIARY FUNCTIONS:
WATER VALVE
LIGHTS
REMOTE AUX FUNCTION
RELAY INTERFACE
(sec 5.8)
*2/C-14,2/C20CABLE
MONITOR MOUNTED
OPERATOR STATION

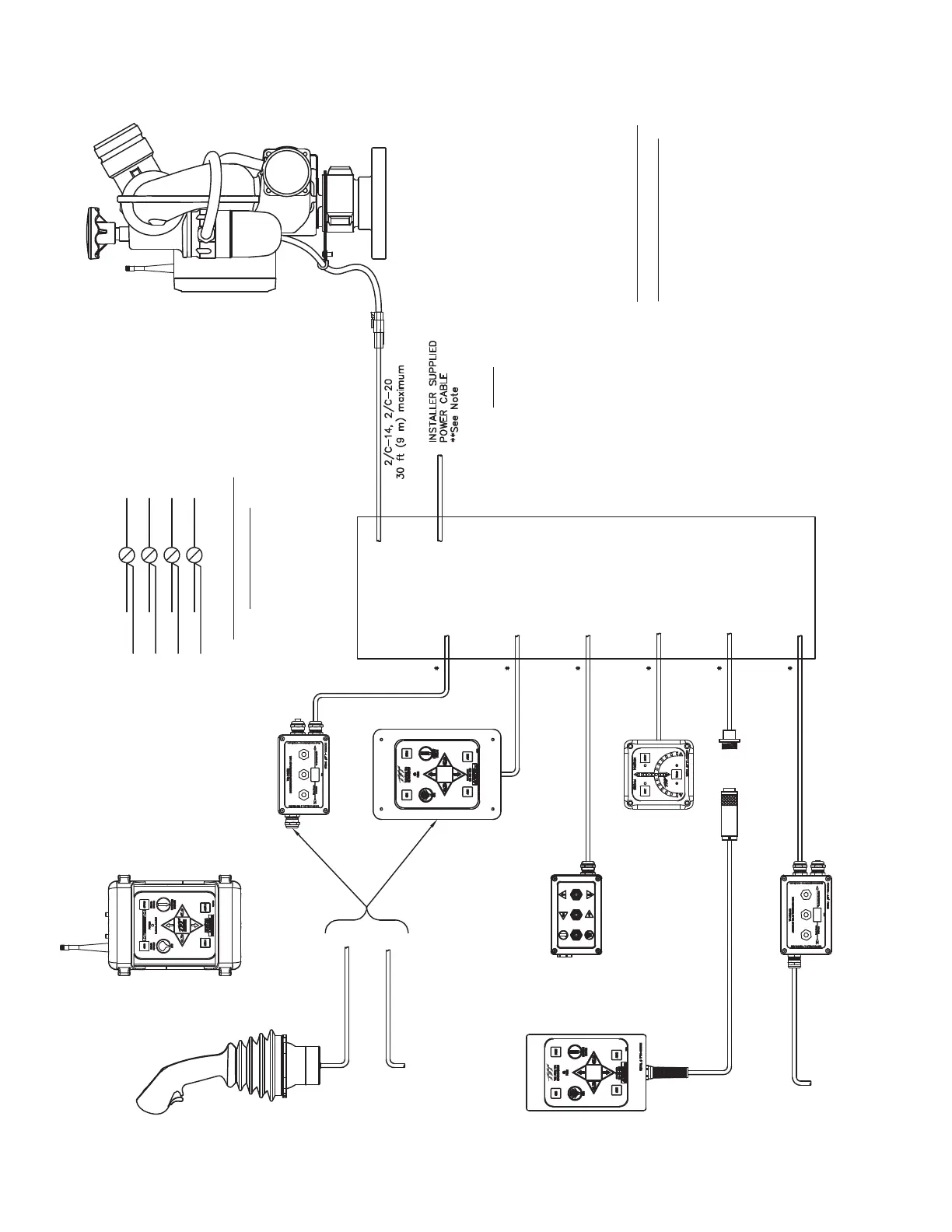

Fig 5.0 Electrical Components
(non-aerial installation)
TOGGLE SWITCH OPERATOR
STATION (sec 5.5 & 6.2.1.6)
COMMUNICATION INTERFACE
BOX (sec 5.6)
JOYSTICK OPERATOR
STATION (sec 5.4)
(sec 6.2.1.5)
TETHER OPERATOR
STATION (sec 5.2)
(sec 6.2.1.3)
PANEL MOUNT OPER.
STATION (sec 5.1& 6.2.1.2)
WIRELESS OPERATOR
STATION (sec 5.3)
(sec 6.2.1.4)
NO WIRING REQUIRED
