TFT Tornado Series User Manual

16
5.4.2 ELECTRICAL WIRING
The joystick operator station must be connected to the included Y4E-COMM Communication Interface Box or a separately supplied
Y4E-RP Panel Mount Operator Station. By connecting the joystick to a communication interface box, a panel mount operator
station is not required and the installer has the option to enable the joystick operator station with the master override feature (see
Section 6.2.2). Consult factory for connecting joystick to a Panel Mount Operator Station.
INSTALLER SUPPLIED
TERMINAL BLOCK OR SPLICES
GREEN
ORANGE
BROWN
YELLOW
BLUE
WHITE
RED
GREY
BLACK/WHITE
TAN
PINK
BLUE
GREEN
RED
ORANGE**
BLACK, NOT
USED
BLACK/WHITE
GREY
TAN
PINK
GREEN BLUE
ORANGE
(trigger)
USING TRIGGER TO CONTROL WATER VALVE
• TRIGGER ACTUATION SWITCHES ORANGE WIRE TO +12/24 VDC
•
•
•
•
TRIGGER SWITCH CONTACT RATING, 5 AMPS
INSTALL A SUPPRESSION DIODE WHEN SWITCHING A RELAY OR SOLENOID COIL
(SEE DIAGRAM BELOW)
TO CONTROL WATER VALVE WITH AUX1 OR AUX2 INPUTS, CONSULT FACTORY
FOR APPLICATIONS REQUIRING TRIGGER SWITCHING ORANGE WIRE TO
GROUND (negative), CONSULT FACTORY
+
-
SUPPRESSION DIODE EXAMPLE
5.4.2.1 WIRING TO A COMMUNICATION INTERFACE BOX
The joystick cables will be connected to the factory supplied 10' cable from the Communication Interface Box. See figure 5.4.2.1.
NOTE: The factory supplied cable can be removed and the joystick cable can be installed directly to the interface box.

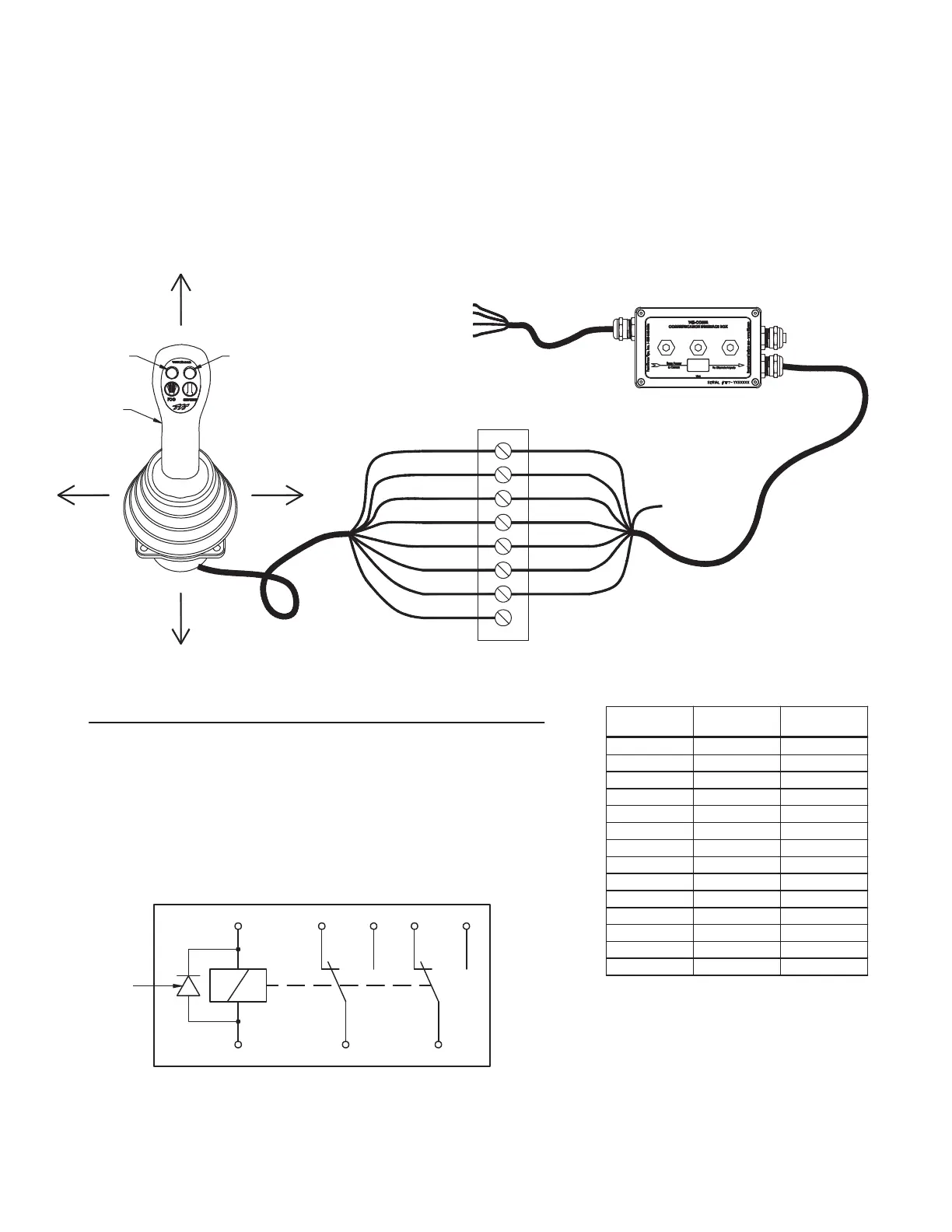

Fig 5.4.2.1
Joystick Operator Station Wiring to Communication Interface Box
(Trigger Operation +12/24 Volts)
Do not connect 12/24VDC to Communication
Interface Box wires if configured for GROUND
(negative) inputs. This could result in damage to
the communication board. See section 5.6.3.
NOTE
Function
Joystick
Cable Color
UP
Grey
DOWN Black/White
LEFT Tan
RIGHT Pink
STREAM Blue
FOG Green
+12/24 V Red
not used White
not used Brown
not used Black
not used Purple
not used Yellow
Interface Box
Cable Color
White
Blue
Yellow
Brown
Orange
Green
Red
n/a
n/a
n/a
n/a
n/a
not used
n/a
Black
TRIGGER Orange n/a
Y4E-COMM COMMUNICATION INTERFACE BOX
FACTORY CONFIGURED FOR VOLTAGE (positive) INPUTS
•
POWER & COMM CABLE
SEE SECTION 5.6.2
AND FIGURE 5.0
DIODE
