TFT Tornado Series User Manual

4.2 QUICK CONNECT INLET MOUNTING AND TRAVEL RANGES
Figure 3.3 shows the various Inlet Adapters used on the Tornado. These Inlet
Adapters must be oriented upon installation so the Tornado will point in the
desired direction. Figure 4.2A shows examples of Inlet Adaptors and the
location of a “Straight Ahead Reference Mark”. This figure also gives some
information about securing the Tornado to the Inlet Adapter. Travel ranges
relative to the Straight Ahead Reference Mark are shown in Figure 4.2B. Figure
4.2C gives the location of the “Stop Bolts”, which are used to limit the travel.

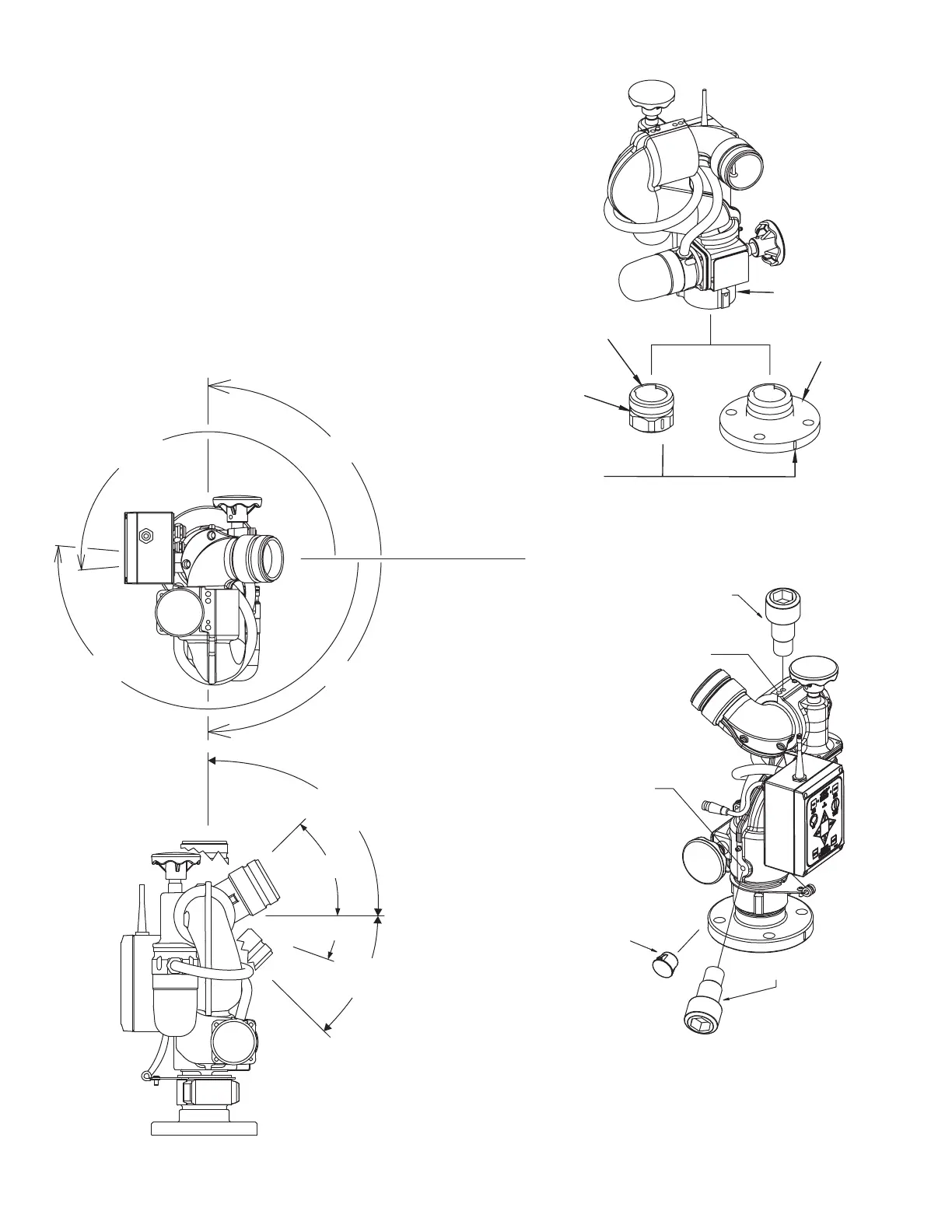

Fig 4.2A Inlet Adapter and
Straight Ahead Reference Mark
Fig 4.2B Travel Ranges Relative to
Straight Ahead Reference Mark
8
IMPORTANT: Install so Straight Ahead
Reference Mark is facing
the desired direction.
Female Threaded
Inlet Adapter
Straight Ahead
Reference Mark
2-1/2” NH Coupling
on Tornado Inlet
Internal Ear on Tornado RC
engages this slot on the adaptor
to give rotational alignment.
Flanged
Inlet Adapter
Fig 4.2C Stop Bolt Use
ELEVATION
TRAVEL
90°
ABOVE
45° ABOVE
45°
BELOW
20° BELOW
Pry out plastic plug and install Stop Bolt to obtain
desired travel limits.
RC model with no stop bolts installed has 185°
left and right travel limits.
Tiller model has continuous 360° horizontal
rotation. Stop Bolts are not used on Tiller model.
90° LEFT
90° RIGHT
185° LEFT
185° RIGHT
HORIZONTAL
TRAVEL
Location of Straight
Ahead Reference Mark
STOP BOLT #Y4145
Install Stop Bolt here
to limit elevation travel
to 45° above and 20°
below on RC model.
Install Stop Bolt here
to limit horizontal travel
to 90° left and 90° right
on RC model.
PLASTIC PLUG
#VM4124
STOP BOLT #Y4145
