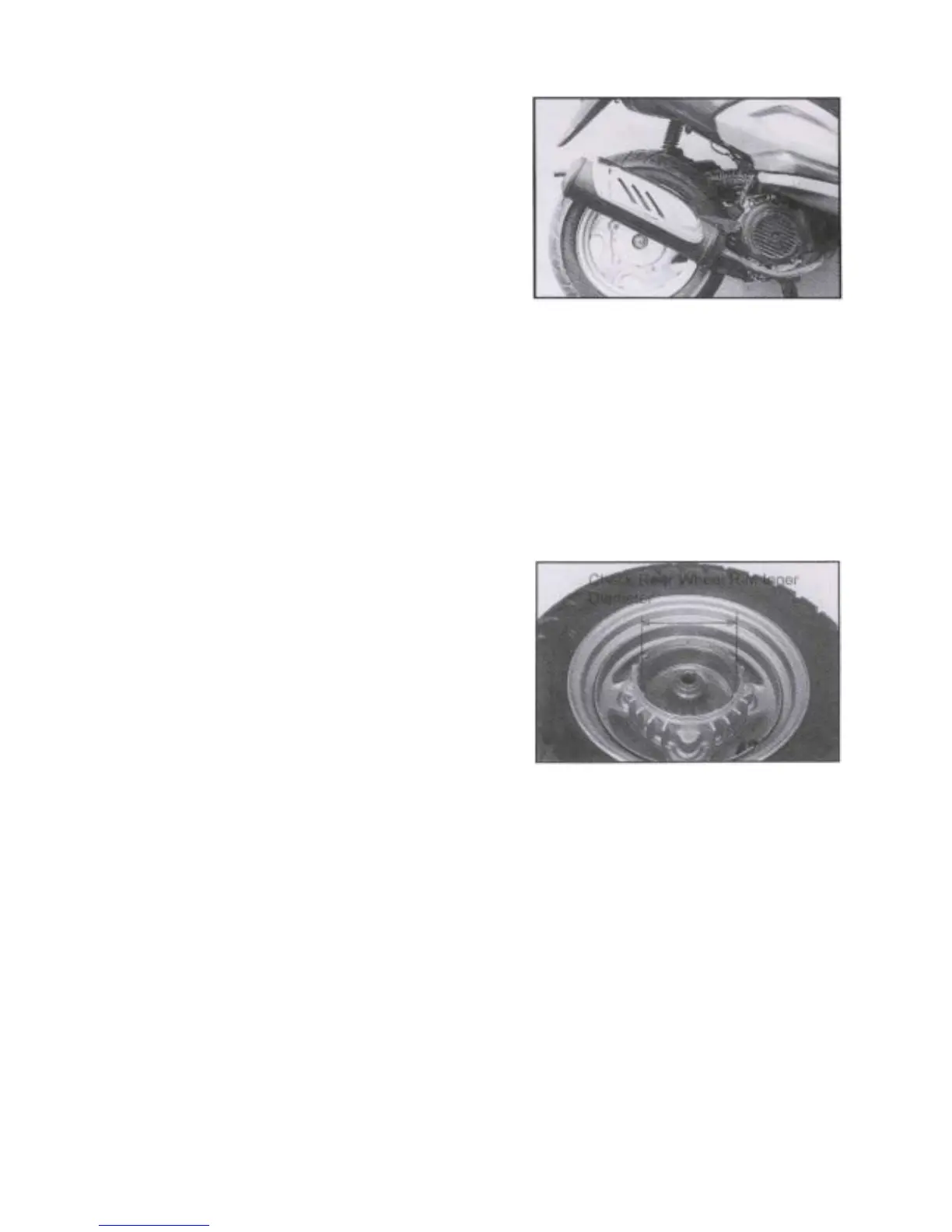

G. Inspection of Brake Lining and Wheel
Rim
Inspection: Check the wear indicator plate. If
the index is higher than the limit, please check
the wear of wheel rim and brake lining.
Disassembly:
2 tightening bolts on exhaust pipe ◎
connector.
2 tightening bolts between exhaust pipe ◎
and right crankcase.
Tightening nut on rear wheel axle.◎
Washer.◎
Rear wheel.◎
Inspection: check rear wheel rim inner
diameter. If it is badly worn, please replace
with new one.
Note:
(1) Please use vacuum to clean wheel rim and
lining. Try to reduce the contamination of
asbestos fiber, which may affect the human
breath system or lead to cancer.
(2) Use the Vernier calipers to measure the
diameter of wheel rim. If the diameter is
larger than 111 mm, then replace with new
one.
