62

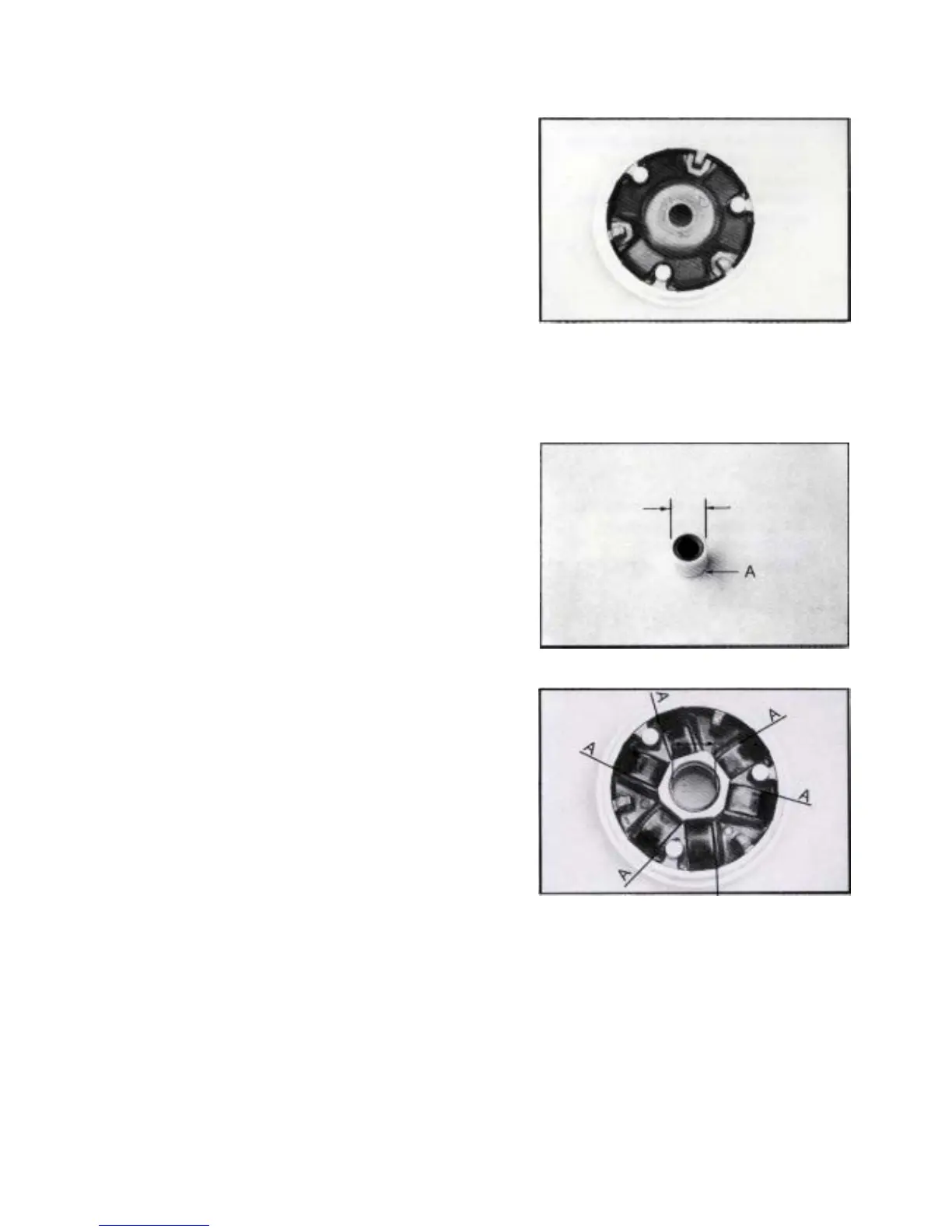

-Remove the movable drive plate guide
blocks and rollers.
Take care to make the mark on the rollers and groove of drive face in order to install rollers
correctly.
*Rollers
Inspection that the rollers should not to be
damaged or worn.
*BH8*
Wear limit Ø18.0mm minimum.
*BR8/BF8/BR9/BF9*
Wear limit Ø17.4mm minimum.
*Roller Bush
Inspection that the internal bushing of drive
bush should show no signs of anomalous
wear and with bore meter to measure its
inside diameter.
*BH8*
Wear limit Ø25.0mm maximum.
*BR8/BF8/BR9/BF9*
Wear limit Ø24.06mm maximum.
Note: Take care to replace the rollers in their
original positions.
