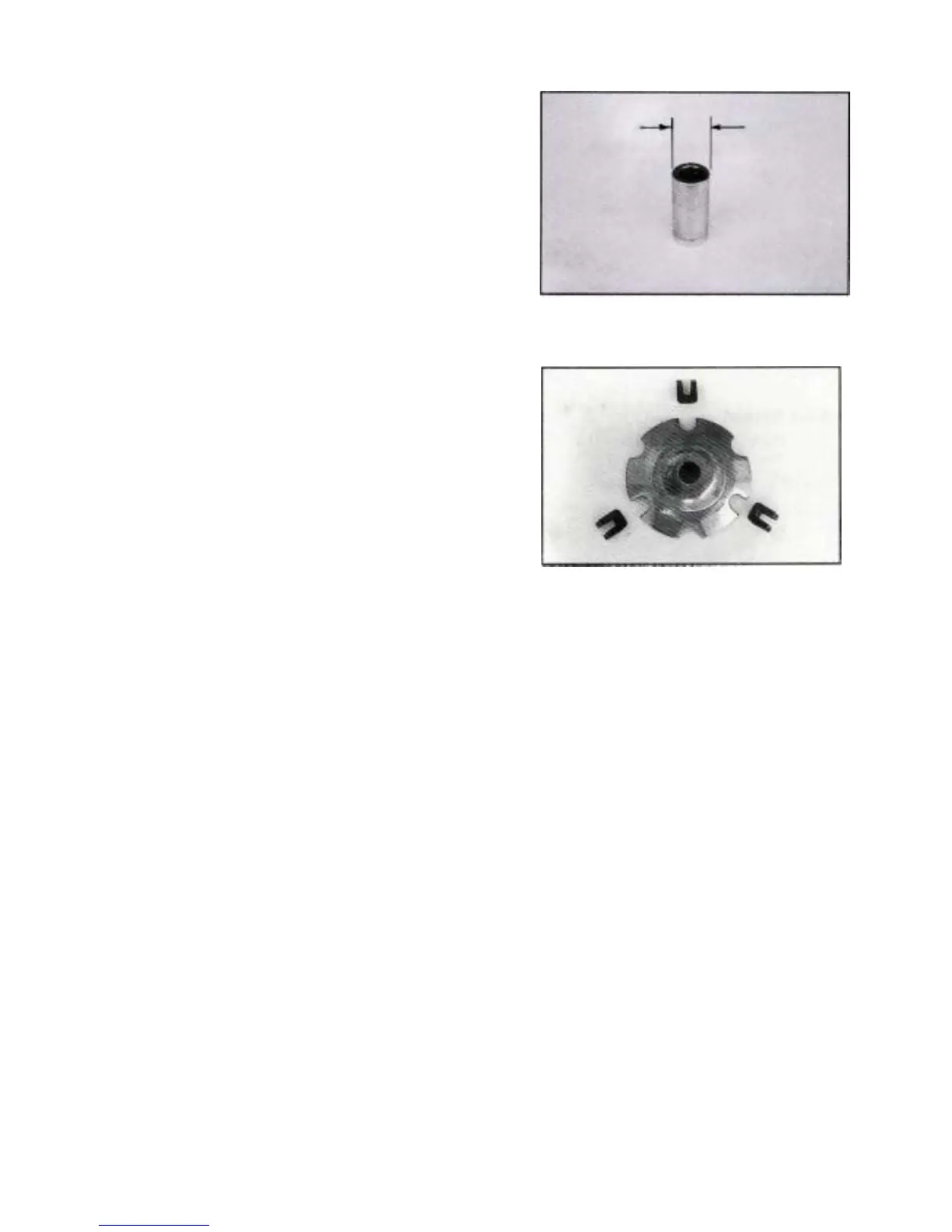

*Spacer
-Make sure the spacer surface should not be
damaged.
-Measure the outside diameter of the spacer.
*BH8*
Wear limit Ø26.0mm minimum.
*BR8/BF8/BR9/BF9*
Wear limit Ø23.94mm minimum.
3-7-5 Guide shoes
-Inspect the guide blocks should not be worn
and then inlay them into the movable drive
plate.
Assemble the movable drive plate cover.
