B. Pulse Coil Inspection
Disassembly: The pulse coil connector.
Measure:

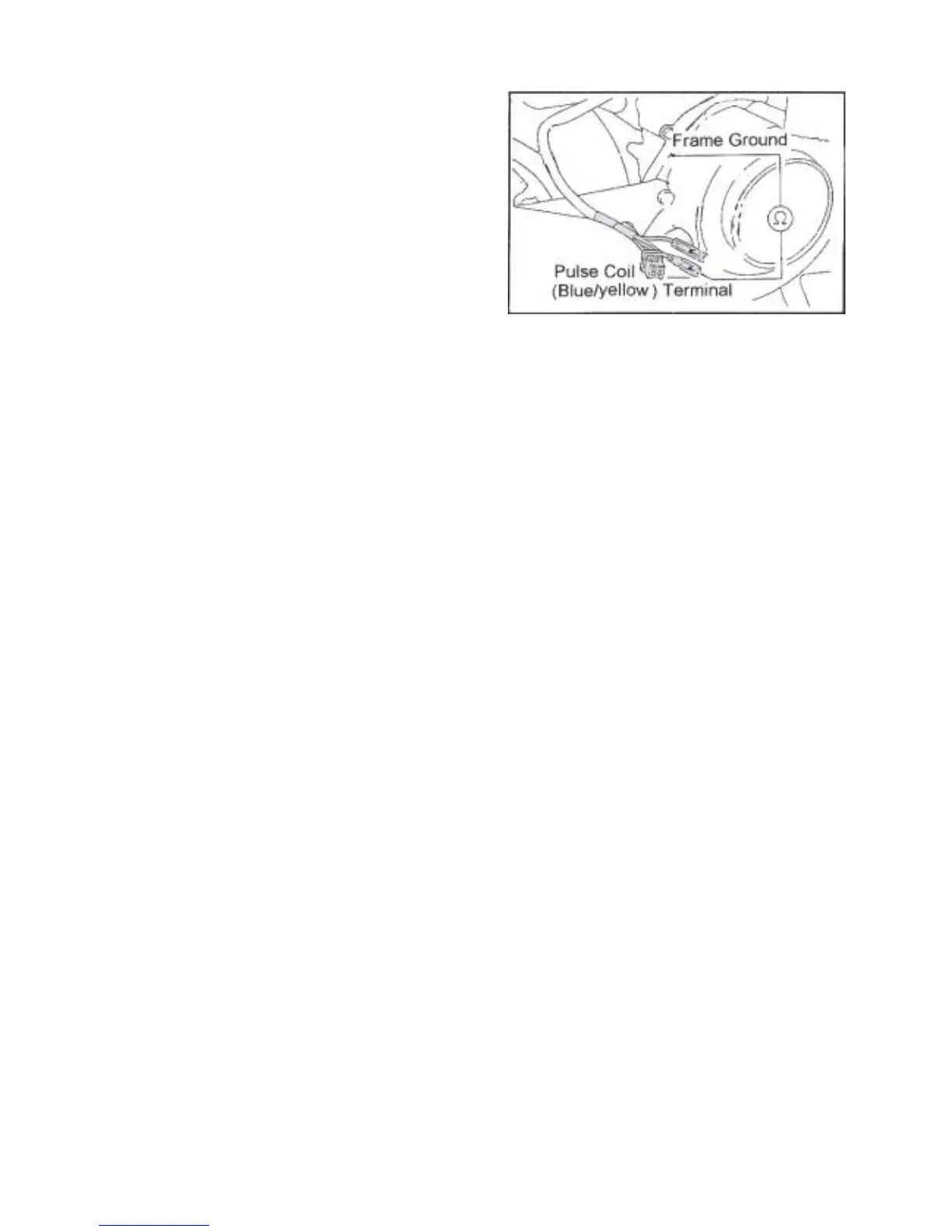

A. Use megga meter‘s positive terminal
to connect pulse coil’s blue/yellow
terminal.
B. Connect the megga meter‘s negative
terminal with body ground and
measure the resistance.
Note:
(1) The standard resistance: 40~300
Ohm (20
o
C).
(2) If the resistance is higher than
standard, then it is broken. Please
replace with new one.
