97

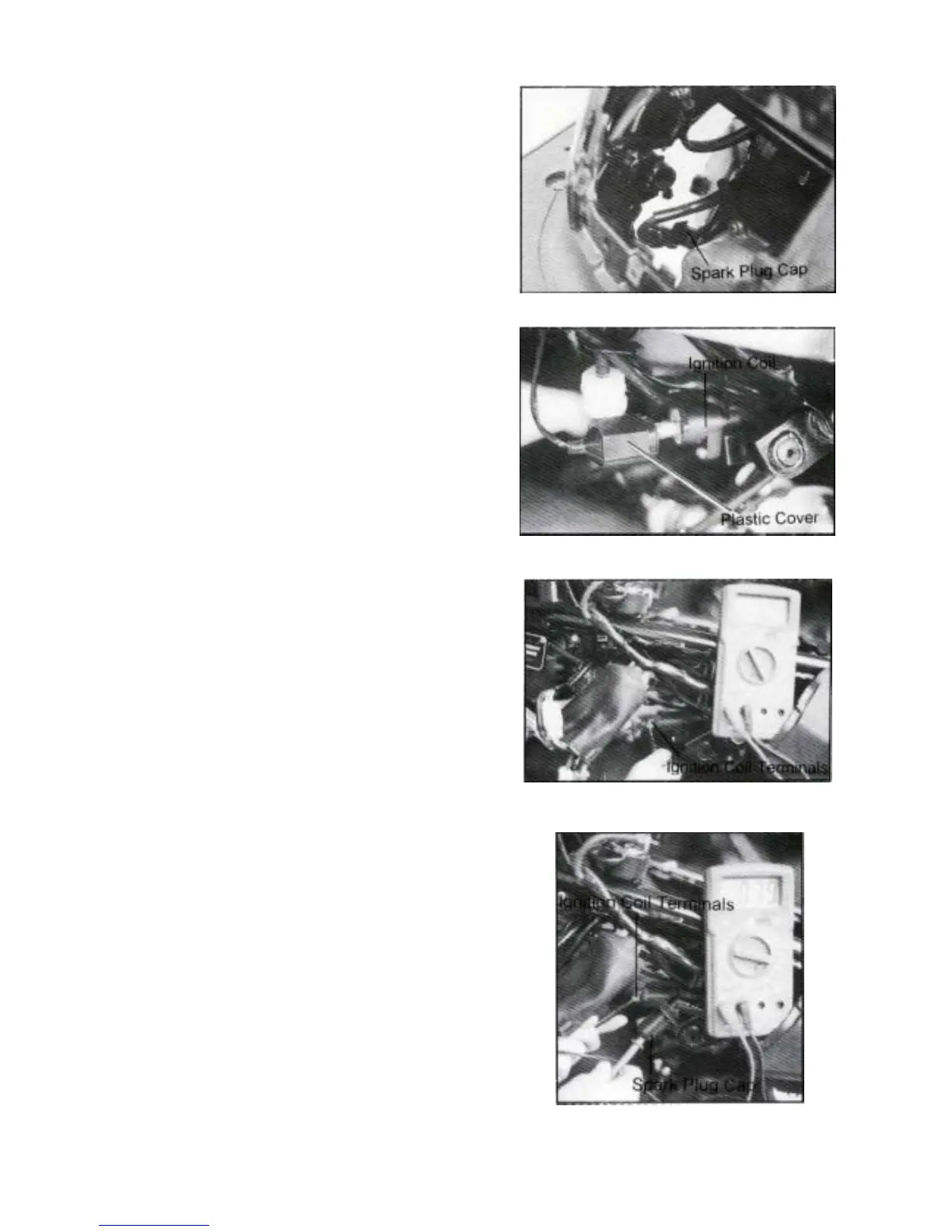

C. Ignition coil Inspection
Disassembly:
◎ Remove spark plug.
Remove ignition coil‘s plastic cover.◎
Ignition coil‘s p◎ rimary coil.
Ignition coil‘s tightening attaching ◎
bolt.
◎ Ignition Coil.
Assembly: Assembly is in reverse
order of disassembly procedures.
Note: Connect the black/white wire to
black terminal, and green wire to green
terminal.
D. Primary Coil Inspection
Measure: Connect the electric tester as
Fig. and measure the resistance.
Note:
(1) Standard resistance: 0.1~1.0 Ohm
(20
o
C).
(2) If the resistance is“Infinity”, then the
coil is broken. Replace it with new one.
E. Secondary Coil Inspection
Measure:
Connect the electric tester with spark plug
cable and ignition wire terminal (as shown
in Fig.), and measure the resistance.
Note:
(1) Standard resistance: 0.1~1.0 Ohm
(20
o
C).
(2) If the resistance is “Infinity”, then the coil
is broken. Replace it with new one.
