6
Installation Instructions

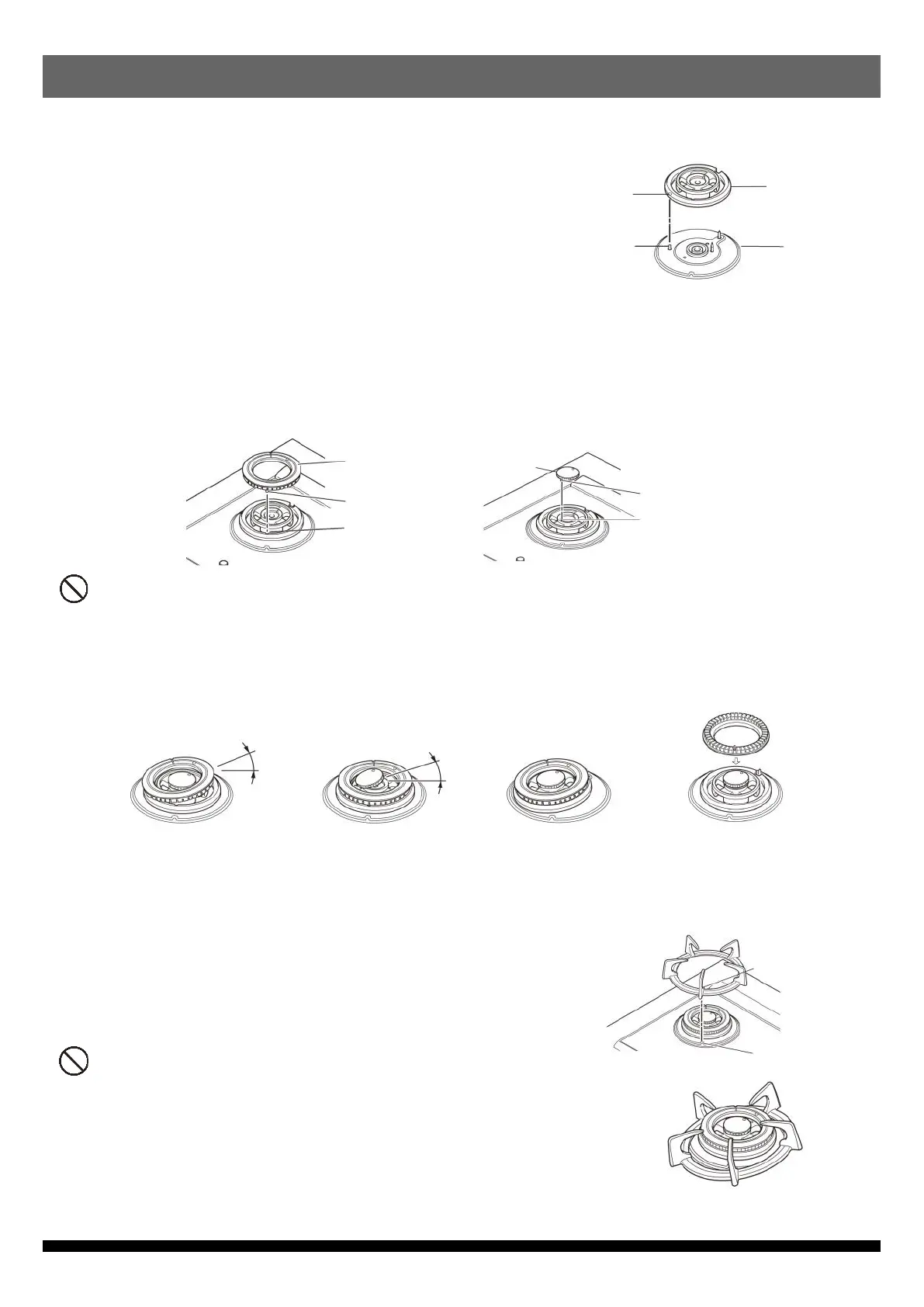

5. Placement of Burner Bodies
 Align bottom guide slots of burner bodies with guide pins of
cover discs.
 Place the burner bodies without tilting.
6. Placement of Burner Caps
 Place the outer ring burner caps and simmer burner caps on burner bodies without tilting.
 Guide pins of burner caps should be inserted into guide slots of burner bodies.
Do not use appliance with burner caps and burner bodies positioned improperly.
 It may not be ignited if burner caps are positioned improperly.
 It may cause incomplete combustion, risk of carbon monoxide poisoning and burner
deformation, due to uneven flame shape and lighting back.
 Flame may get into the appliance and damage it.
7. Placement of Pan Supports
 Place the pan supports to the appliance properly.
 Align guide pins of pan supports with guide slots of cover discs
without tilting.
Do not use appliance with pan supports positioned
improperly. Due to improper placement of pan support,
cooking utensil may become unstable and cause hazard.
Inclined Outer Ring Burner Cap
Gap
Inclined Simmer Burner Cap
Gap
Inclined Burner Body
Reversed Outer Ring Burner Cap
Burner Body
Guide slot
Guide Pin
Inclined Pan Support
Guide Pin
Guide Slot
Outer Ring Burner Cap
Guide Pin
Guide Slot
Simmer
Burner Cap
Simmer Burner Cap
Cover Disc
Outer Ring
Burner Cap
Guide Pin
Guide Slot
