3 Audio Codec Adapter Setup
3.1 Assembly with DSB75 and AH6-DSB75 Adapter
The Audio Codec Adapter setup with DSB75 and AH6-DSB75 Adapter is based on the refer-
ence environment for development, test and approval purposes that is described in the Startup
User Guide of a specific module. For detailed information on the startup environment please
refer to [4]. The Audio Codec Adapter setup comprises the following hardware components:
DSB75 Development Support Board, AH6-DSB75 Adapter, Evaluation module as well as Au-
dio Codec Adapter. The below Figure 11 shows how these hardware components are assem-
bled - with all jumper settings and switches in their default positions.

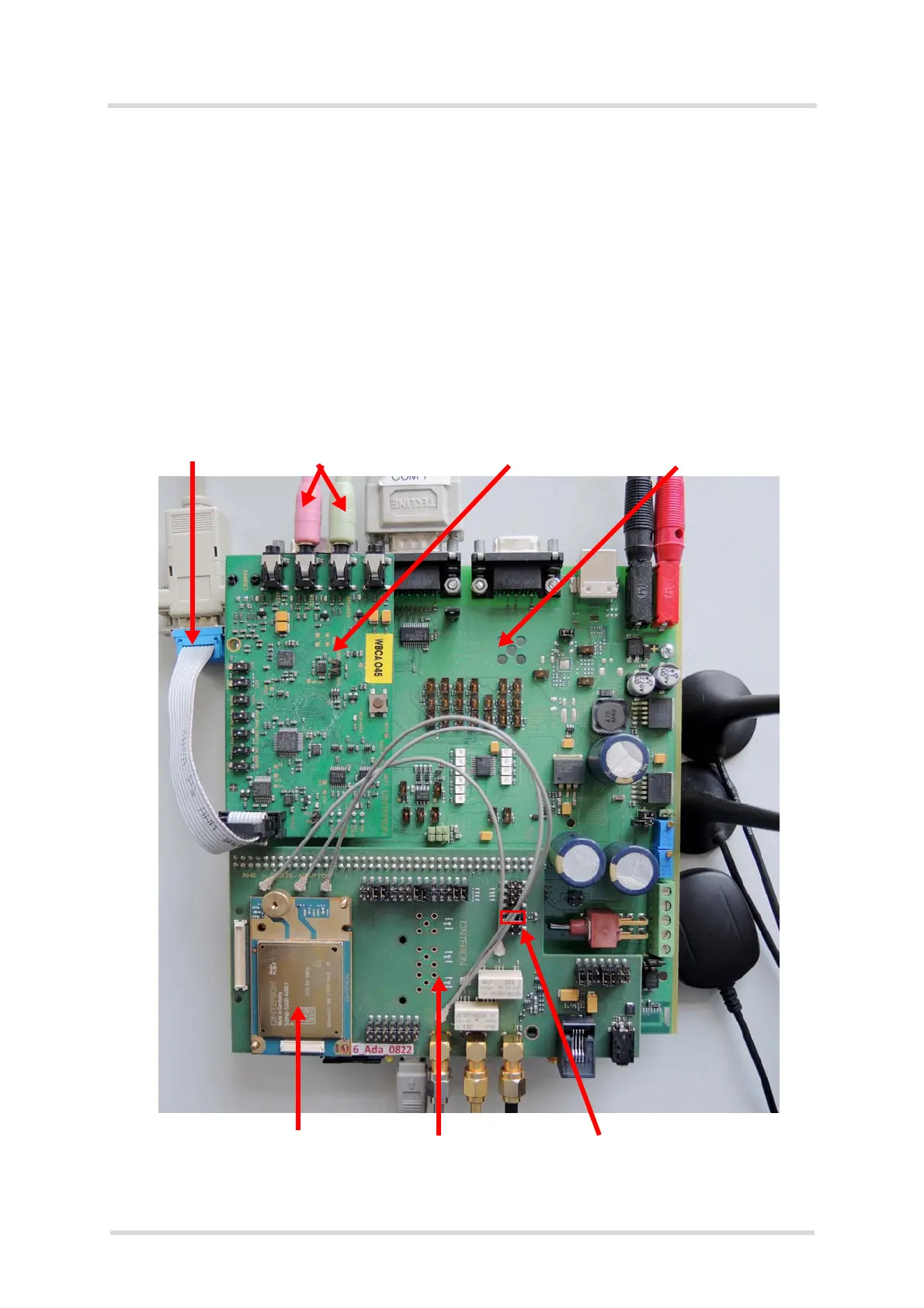

Figure 11: Audio codec adapter setup
DSB75Audio Codec Adapter
AH6-DSB75 AdapterEvaluation Module
Crimped cable to access
Audio Codec Adapter
Headsetvia RS232 interface
(PLS8-E sample)
MS-AGND jumper
