Audio Codec Adapter Setup for Cinterion
®
Modules
4 Appendix A - DAI Signal Timings at Oscilloscope
33
 audio_codec_adapter_setup_v04 2019-10-16
Confidential / Released
Page 25 of 34

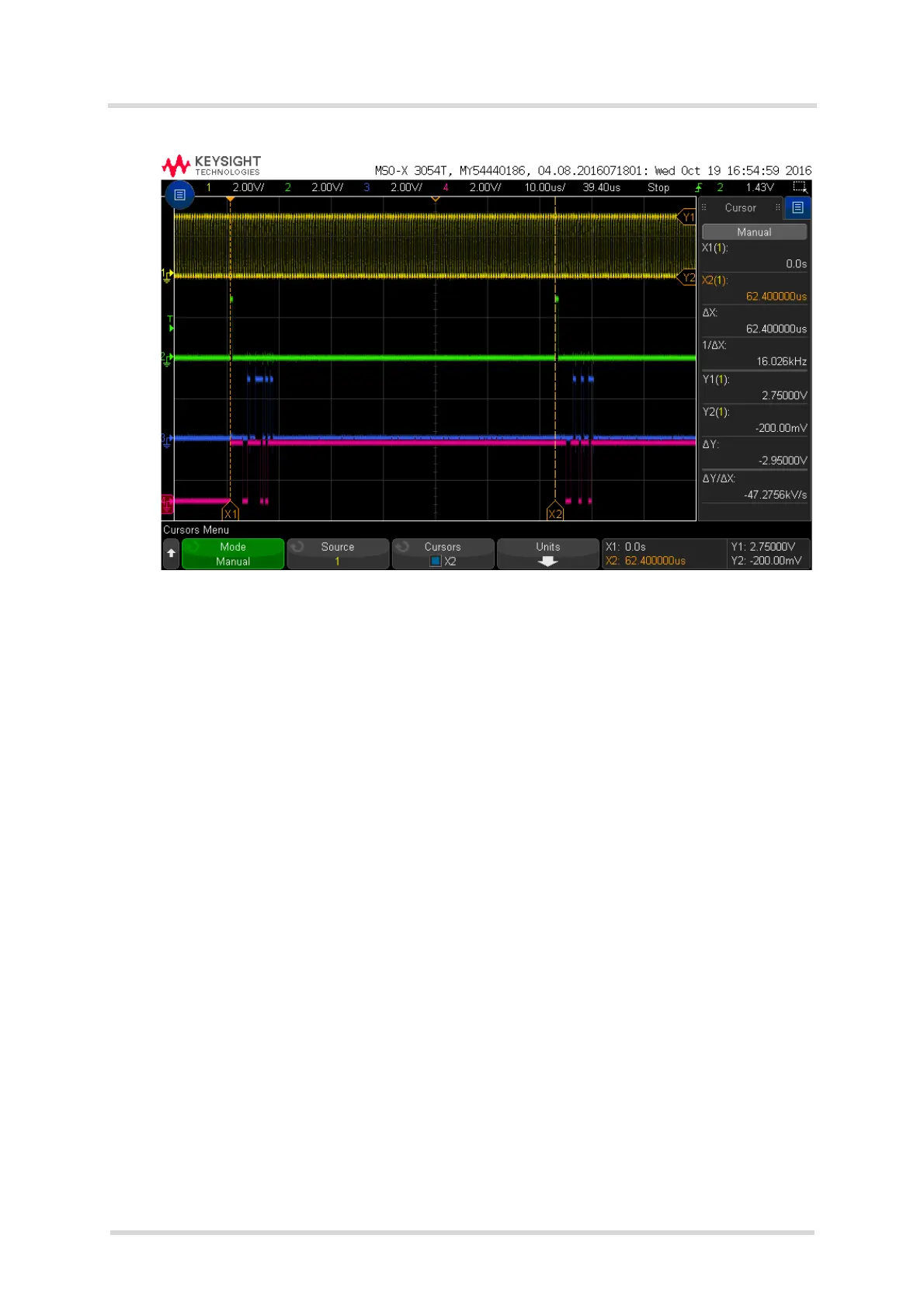

Figure 14: Timing sample (short frame - 62,5µs; wide band) for DAI signal lines
BCLK
FSC
Dout
Din
