The application programmes RAMSES 718 P/S
RAMSES 718 P / RAMSES 718 S 72

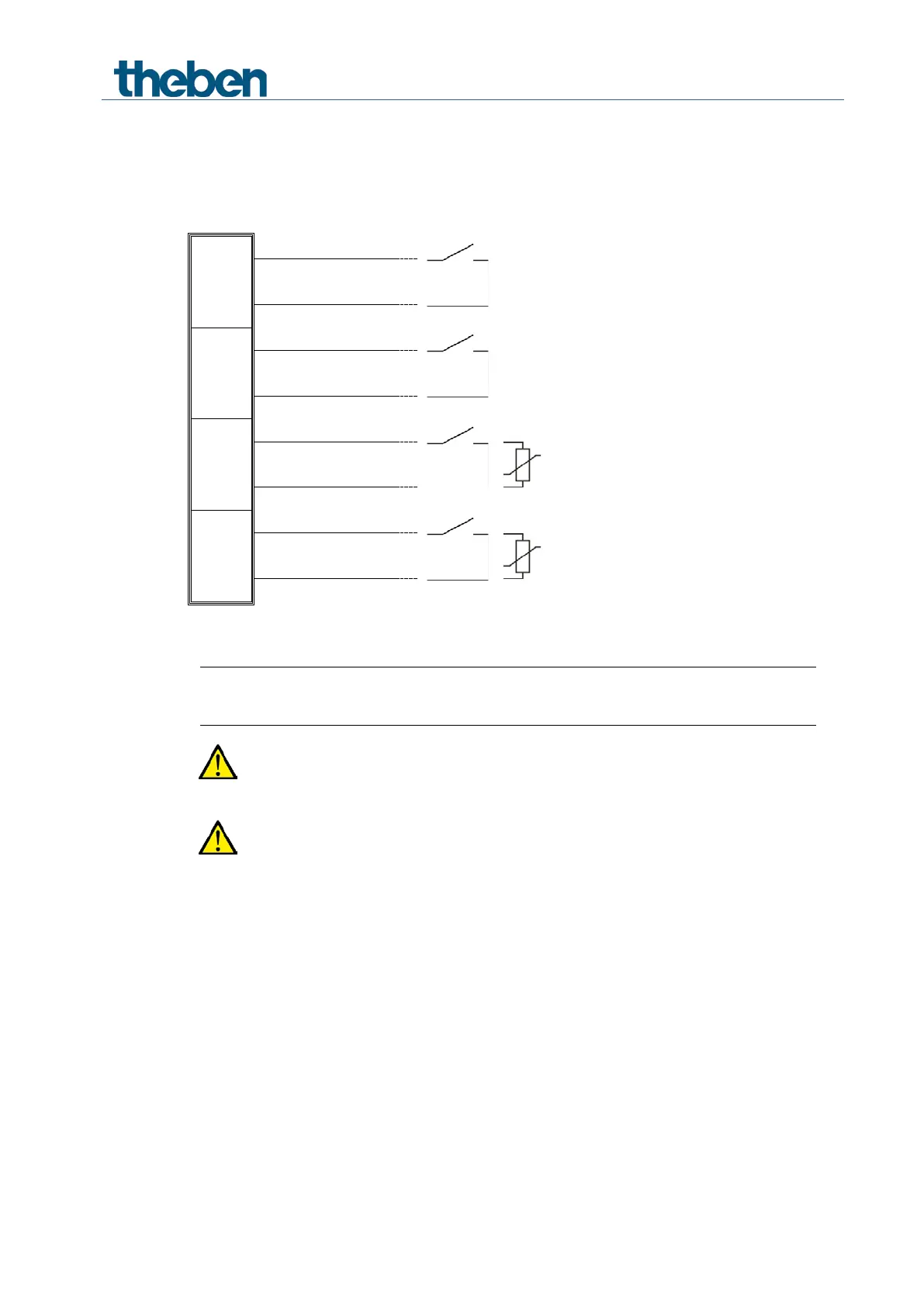

4.7.6 Connection of the external inputs
I1
Blue/white
Blue
I2
Brown/white
Brown
I3
Red/white
Remote sensor 1 (9070191)
Remote sensor IP 65 (9070459)
Red
I4
Green/white
Remote sensor 1 (9070191)
Remote sensor IP 65 (9070459)
Floor sensor (9070321)
Green
Contact voltage: 5V SELV
Contact current: 0.5 mA (mean value), 5 mA (peak value)
Only connect floating contacts or Theben temperature sensors.
CAUTION! Observe extra-low voltage/distances!
