Theben KNX Series User Manual

Appendix
RAMSES 718 P / RAMSES 718 S 87

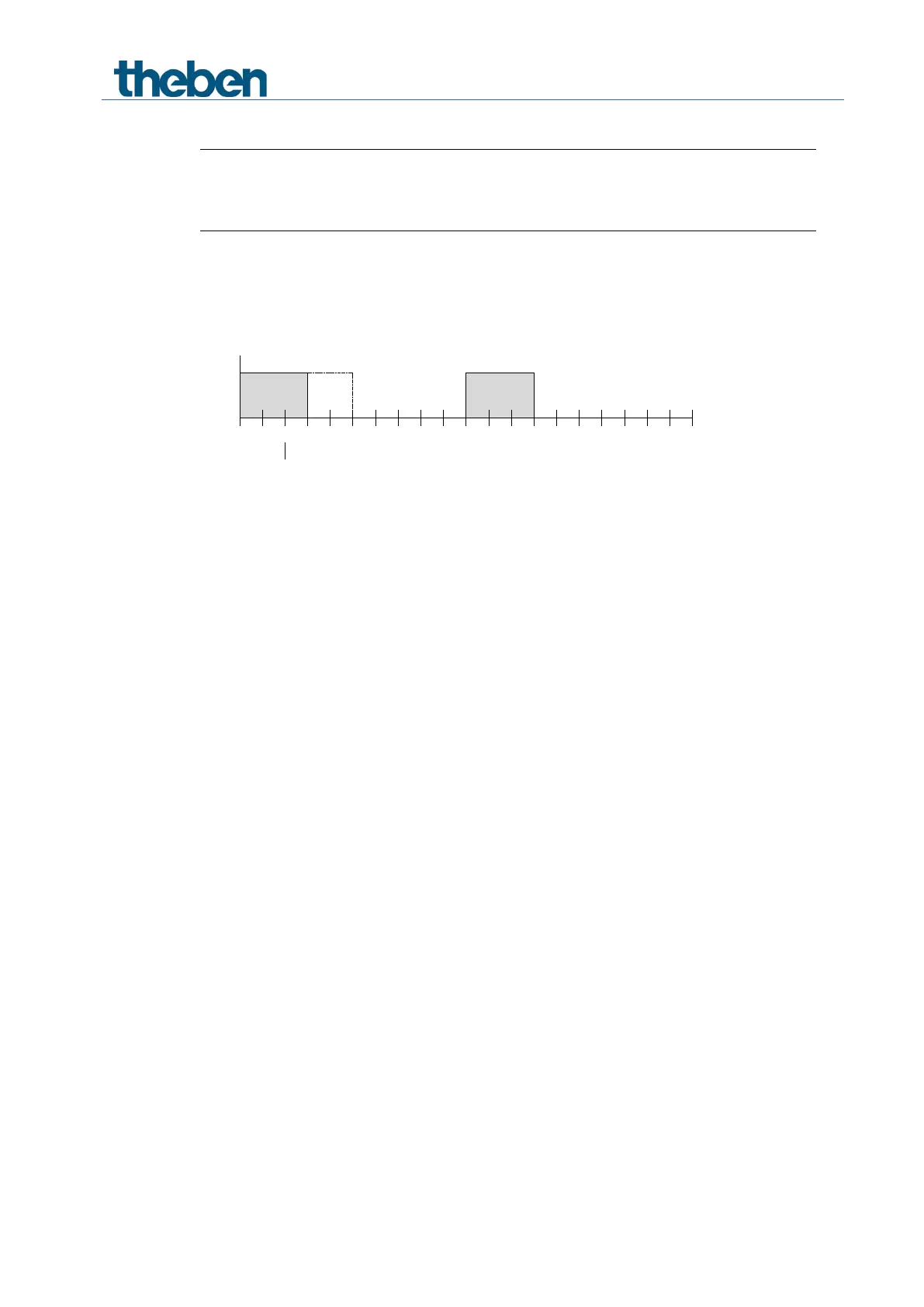

 If the rated switch-on time for the current cycle has already exceeded while receiving the
new actuating value, the output is immediately switched off and the new actuating value
is executed during the next cycle.
The last control variable was 50% (A)
A new actuating value of 30% is received during the cycle (B).
The output is switched off after completing 30% of the PWM cycle and thus the
new control variable is executed.
A
C
On
50%
Off
30%
20%
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
min
B
Example 2:

Theben KNX Series Specifications

General

Communication Protocol	KNX
Ambient Temperature	-5°C to +45°C
Storage Temperature	-25°C to +70°C
Protection Class	IP20
Relative Humidity	5% to 95%, non-condensing
Operating Voltage	24 V DC (via KNX bus)
