Thecus N0503 User Manual

11
 Solid blue: Device is powered on
LCD Display  Displays current system status and messages (Update time: 60
seconds).
Down Button ▼  Push to scroll DOWN when using the LCD display
Up Button ▲  Push to scroll UP when using the LCD display
Enter Button   Push to confirm information entered into the LCD display
Escape Button ESC
 Push to leave the current LCD menu

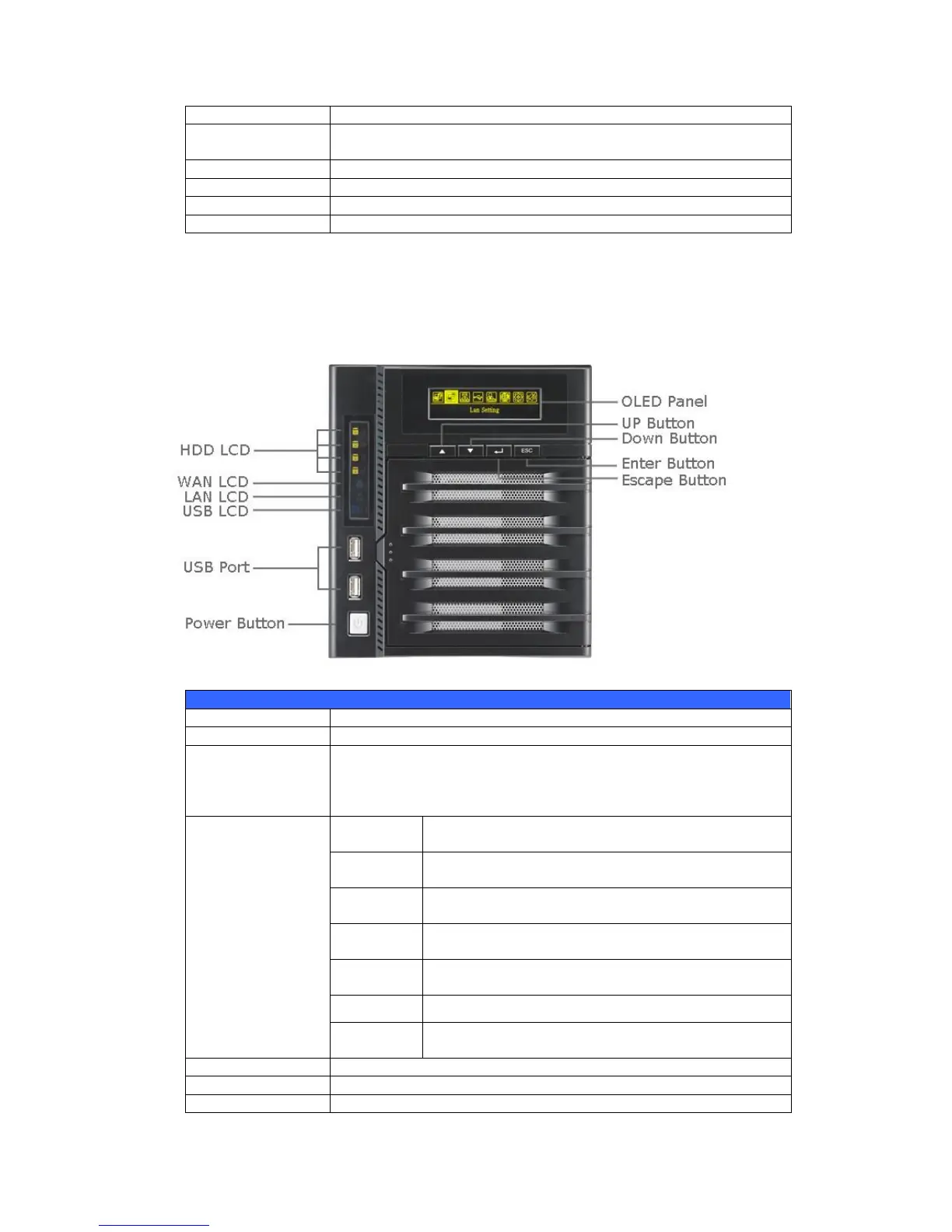

N4200 series:
The Thecus N4200series front panel has the device’s controls, indicators, and hard
disk trays:
Front Panel
Item Description
Power Button  Power on/off N4200series
OLED  Displays current system status and messages
 OLED screen saver will be enabled after screen is left idle for more
than 3 mins
 OLED screen will be diabled after it is left idle for more than 6 mins
HDD 1 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 2 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 3 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 4 LED
 Yellow: HDD activity
 Red: HDD failure
WAN/LAN1
LED
 Blinking green: network activity
LAN2 LED  Blinking green: network activity
OLED
USB Copy ● Blue: USB Copy activity
● Red: USB Copy failure
HDD Tray  Four HDD trays support 4x 3.5" or 4 x 2.5” HDDs
USB Copy Button  Copy USB storage contents to N4200series
USB Port  USB 2.0 port for compatible USB devices, such as USB disks.

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
