Front Panel
N0503:

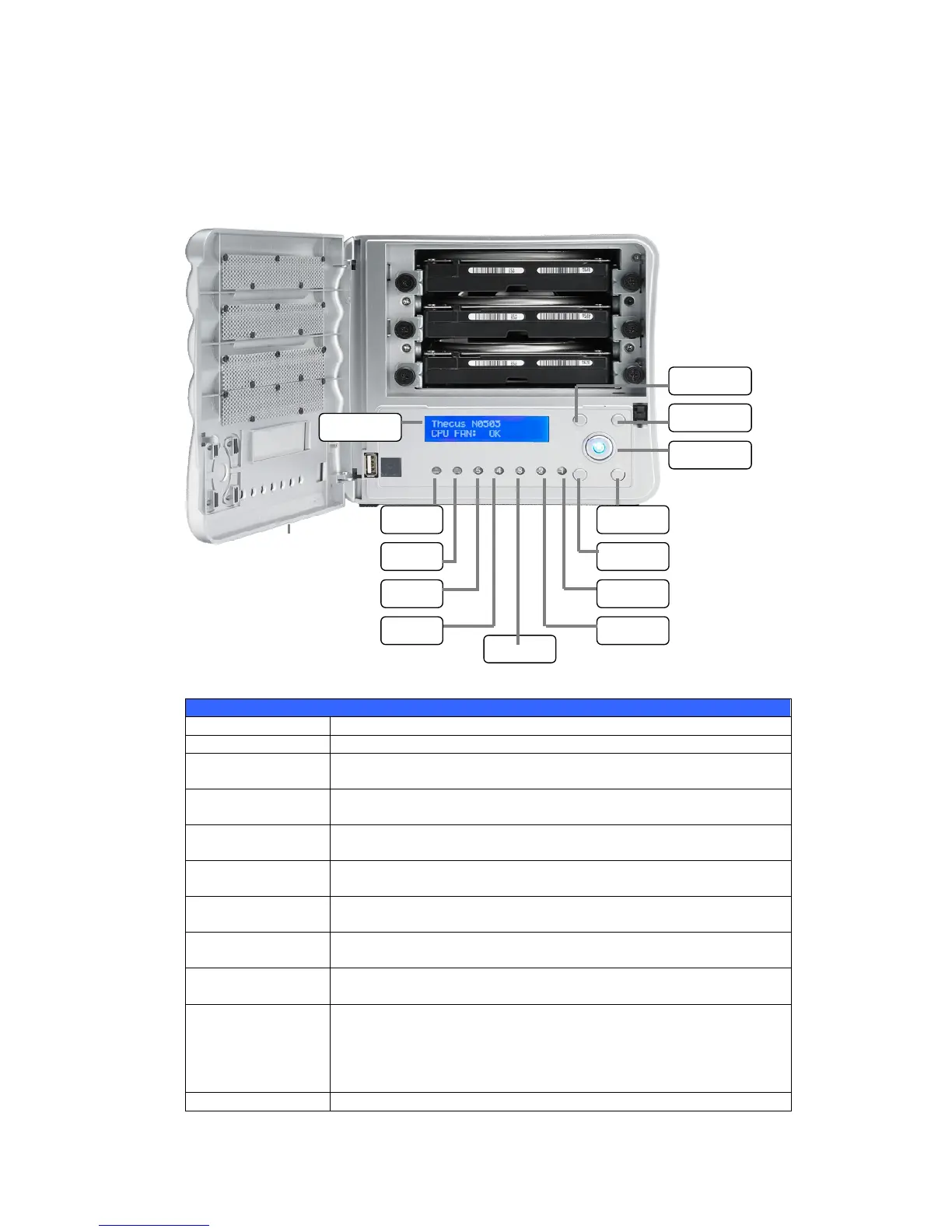

The Thecus N0503’s front panel has the device’s controls, indicators, and hard disk
trays:
Front Panel
Item Description
Power LED  Solid blue: system is powered on
WAN/LAN1 LED  Solid green: network link
 Blinking orange: network activity
LAN2 LED  Solid green: network link
 Blinking orange: network activity
HDD 1 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 2 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 3 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 4 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 5 LED  Solid red: HDD failed
 Blinking orange: HDD activity
USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, USB printers, and USB wireless dongles*
Note: For supported USB wireless dongles, please contact
support@thecus.com
Power Button  Power on/off N0503
Escape
Enter
Power
LCD Display
LAN2
WAN/LA
HDD 5
HDD 3
HDD 2
Up Button
Down
HDD 1
HDD 4

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
