Thecus N0503 User Manual

92

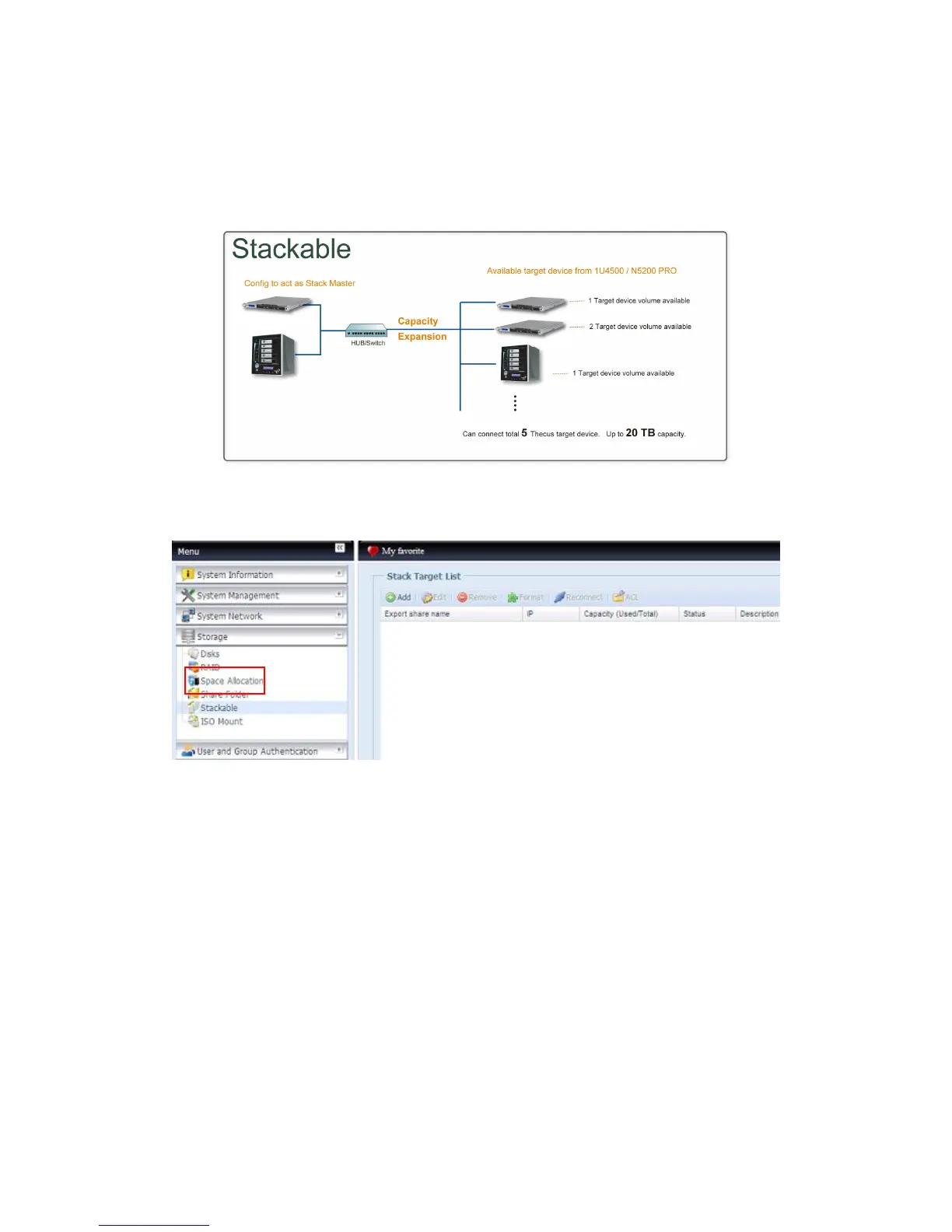

Stackable NAS
The Thecus IP storage’s capacity can be expanded even further using the stackable
function. With it, users can expand the capacity of their network storage systems up
to 5 other stack target volumes which are located in different systems. These can be
stacked through single network access like SMB or AFP acting as a share folder type.
From the main menu, the stackable feature is located under “Storage”. Please refer
the figure below for reference.
A. Add a Stack Target Volume
From the figure above, click Add to access the stackable target device configuration
page. Please refer to the figure below:
With the added stack target you could “Enable” or “Disable” now or later per usage
needed.

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
