Thecus N0503 User Manual

93

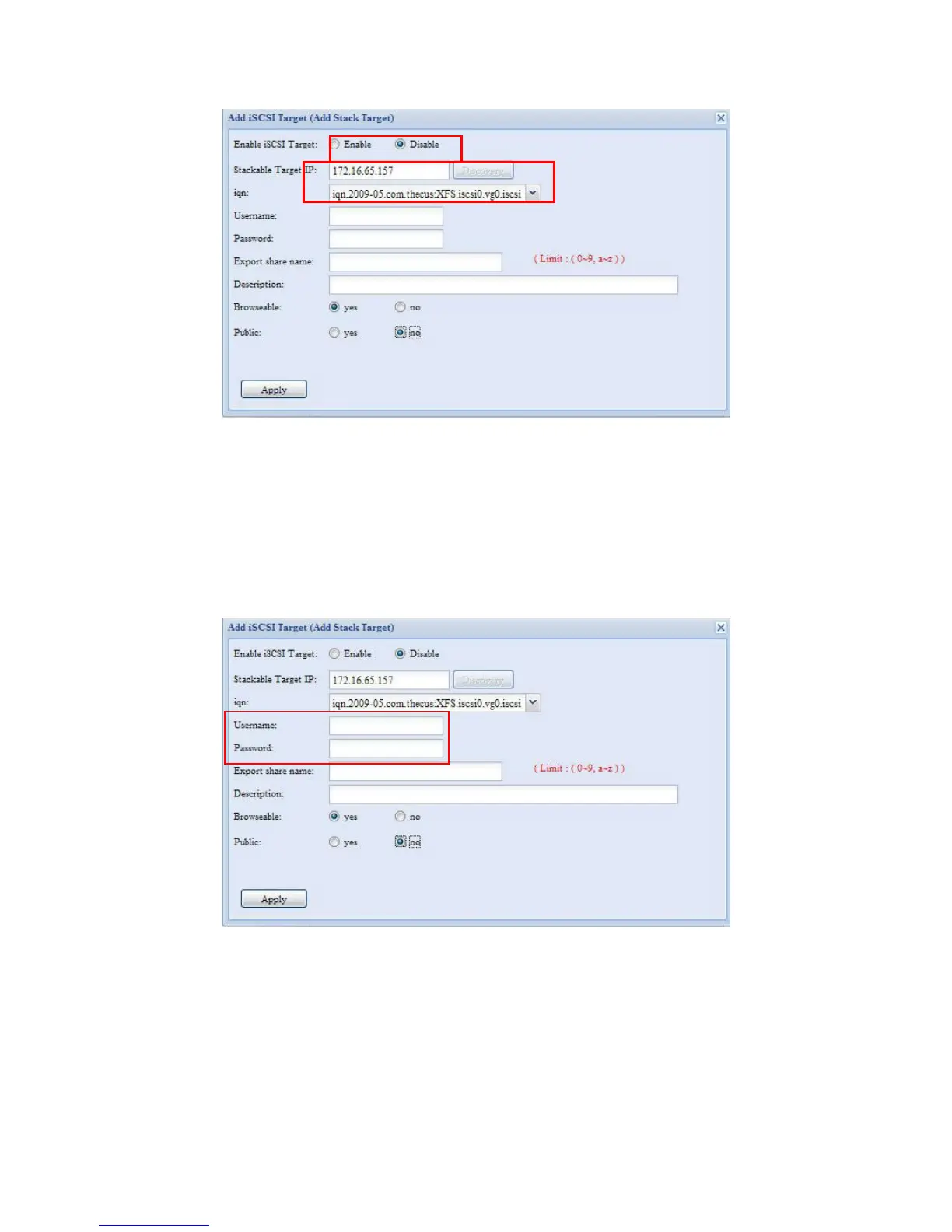

Next, input the target IP address of the stackable device and click the Discovery
button. The system will list available target volumes from the inputted IP address.
Once IP with volume have been set, you may need to input a valid user name and
password to validate your access rights. If there is no user name and password
needed to access target volume, then leave it blank.
Once IP with volume have been set, you may need to input a valid user name and
password to validate your access rights. If there is no user name and password
needed to access target volume, then leave it blank.
The Export share name will become the network share name and displayed
through network access such as SMB. You may refer the figures below to see the
result. Please note the naming limitation.

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
