Thecus N0503 User Manual

48
Example - Monday: On: 8:00; Off: 16:00
System will turn on at 8:00 AM on Monday, and off at 16:00 on Monday. System will
turn on for the rest of the week.
If you choose an on time, but do not assign an off time, the system will turn on and
remain on until a scheduled off time is reached, or if the unit is shutdown manually.
Example - Monday: On: 8:00
System will turn on at 8:00 AM on Monday, and will not shut down unless powered
down manually.
You may also choose two on times or two off times on a particular day, and the
system will act accordingly.
Example - Monday: Off: 8:00; Off: 16:00
System will turn off at 8:00 AM on Monday. System will turn off at 16:00 PM on
Monday, if it was on. If the system was already off at 16:00 PM on Monday, system
will stay off.

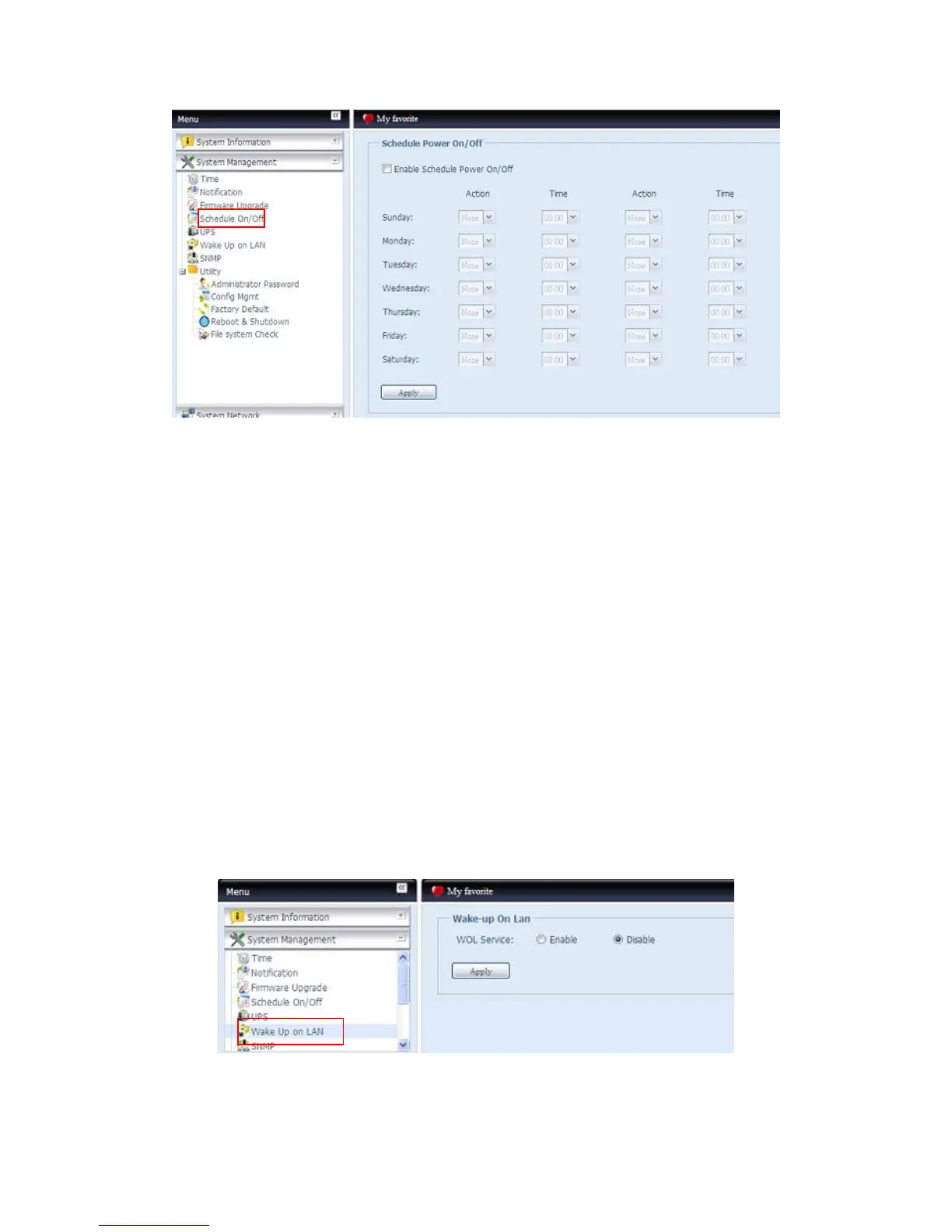

Wake-Up On LAN (WOL)
The Thecus IP storage has the ability to be awoken from sleep mode via WAN/LAN1
port.
From the menu, choose the WOL item, and the Wake-up On LAN screen appears.
From here, you can Enable or Disable.

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
