Chapter 2: Hardware Installation
Overview
Your Thecus IP storage is designed for easy installation. To help you get started, the
following chapter will help you quickly get your Thecus IP storage up and running.
Please read it carefully to prevent damaging your unit during installation.
Before You Begin
Before you begin, be sure to take the following precautions:
1. Read and understand the Safety Warnings outlined in the beginning of the
manual.
2. If possible, wear an anti-static wrist strap during installation to prevent static
discharge from damaging the sensitive electronic components on the N8800.
3. Be careful not to use magnetized screwdrivers around the Thecus IP
storage’s electronic components.
Cable Connections

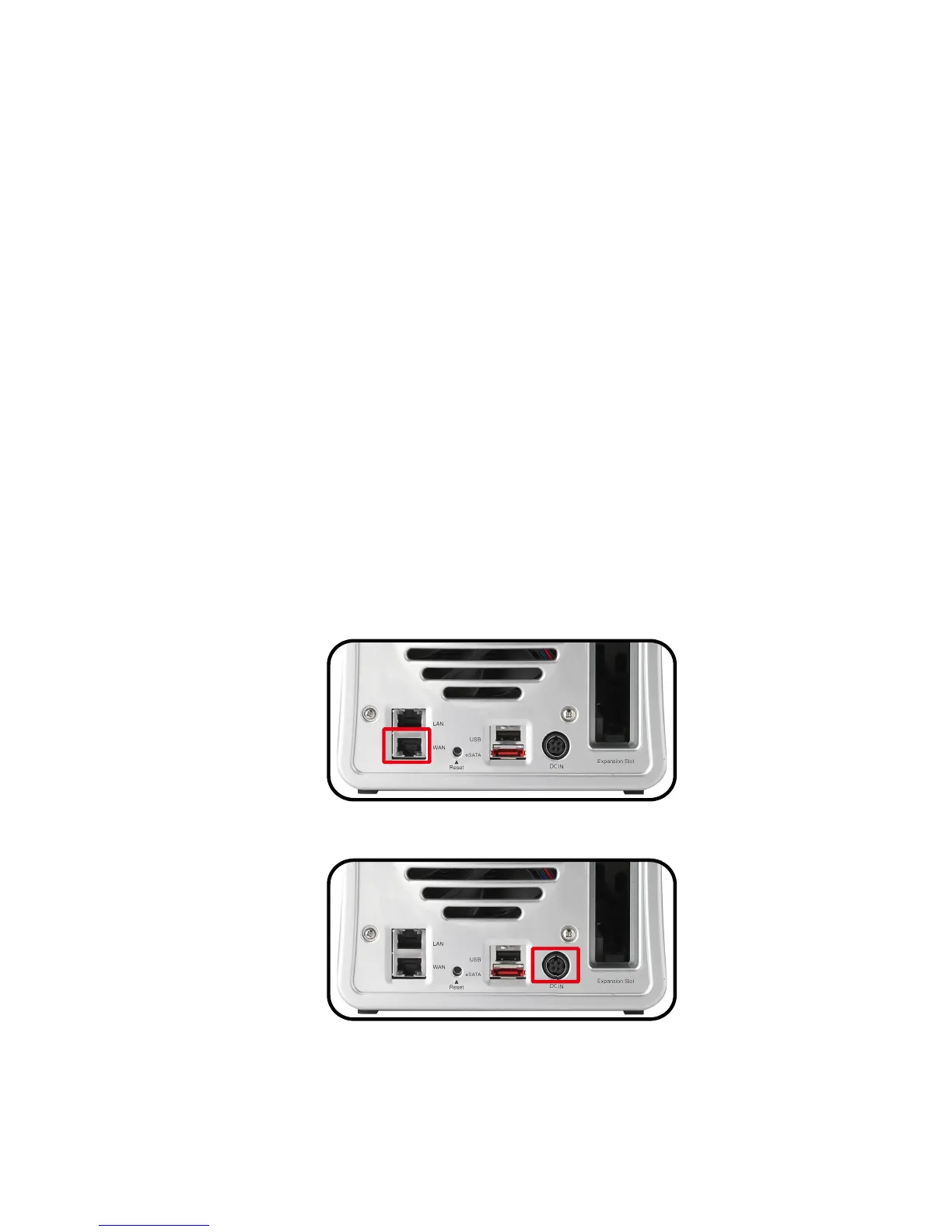

To connect the N0503 to your network, follow the steps below:
1. Connect an Ethernet cable from your network to the WAN/LAN1 port on the
back panel of the N0503.
2. Connect the provided power cord into the power socket on the back panel.
Plug the other end of the cord into a surge protector socket.

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
