Thecus N0503 User Manual

16

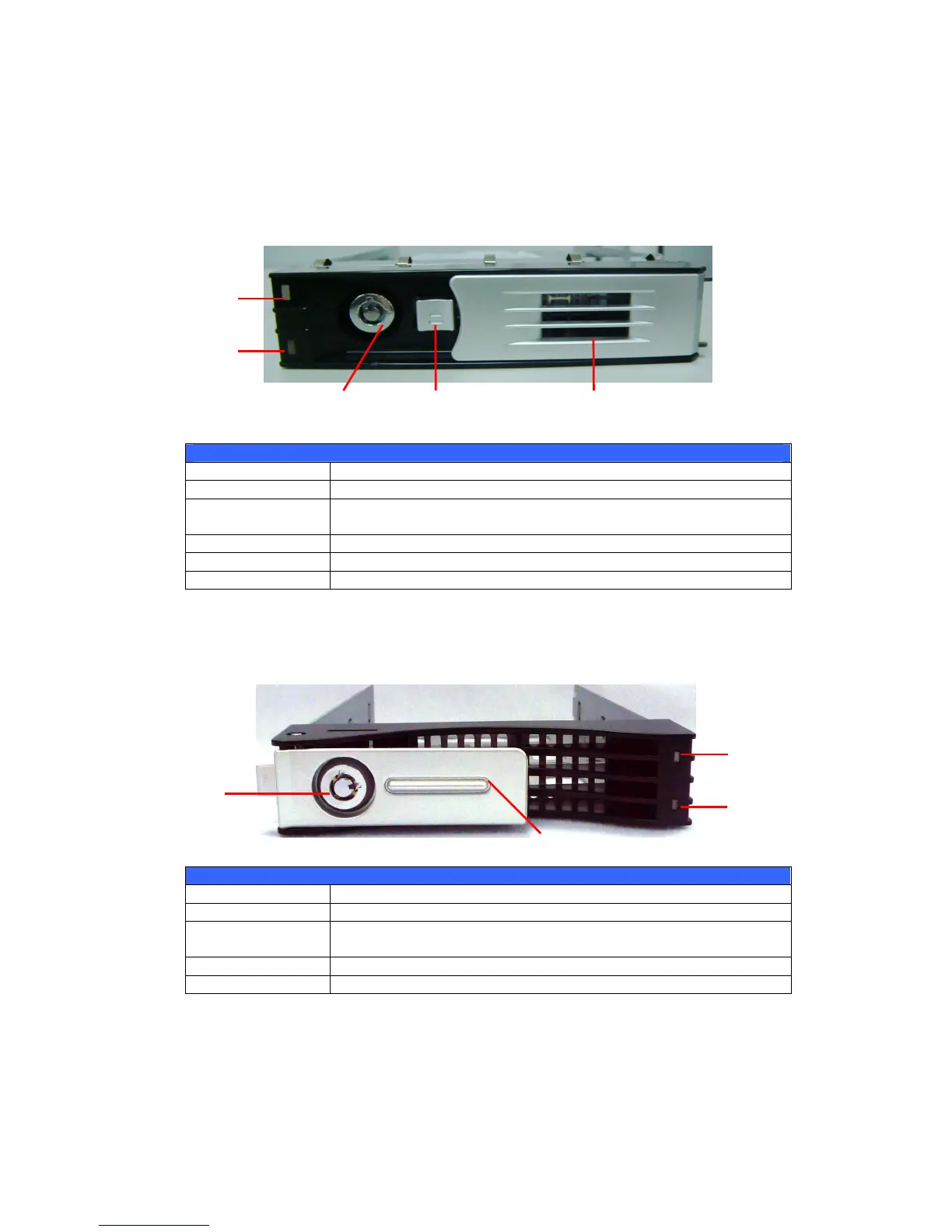

Hard Disk Trays
1U4600/N7700 series/N8800series:
Each of mentioned above models hard disk trays has a lock, a latch, and two LED
indicators:
Hard Disk Trays
Item Description
1.HDD Power LED  Solid blue: hard disk is powered on
2.HDD
Access/Error LED
 Blinking green: system is accessing data on the hard disk
3.Lock  Use the lock to physically secure the hard disk to the unit
4.Latch  Use to open and remove or close and secure the tray
5.Handle  Pull out HDD tray
N4200 series/N5500:
Each of the N5500’s hard disk trays has a lock, a latch, and two LED indicators:
Hard Disk Trays
Item Description
1.HDD Power LED  Solid blue: hard disk is powered on
2.HDD
Access/Error LED
 Blinking green: system is accessing data on the hard disk
3.Lock  Use the lock to physically secure the hard disk to the unit
4.Handle  Pull out HDD tray
1
2
3 4 5
5
1
2 3
4

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
