Thecus N0503 User Manual

31

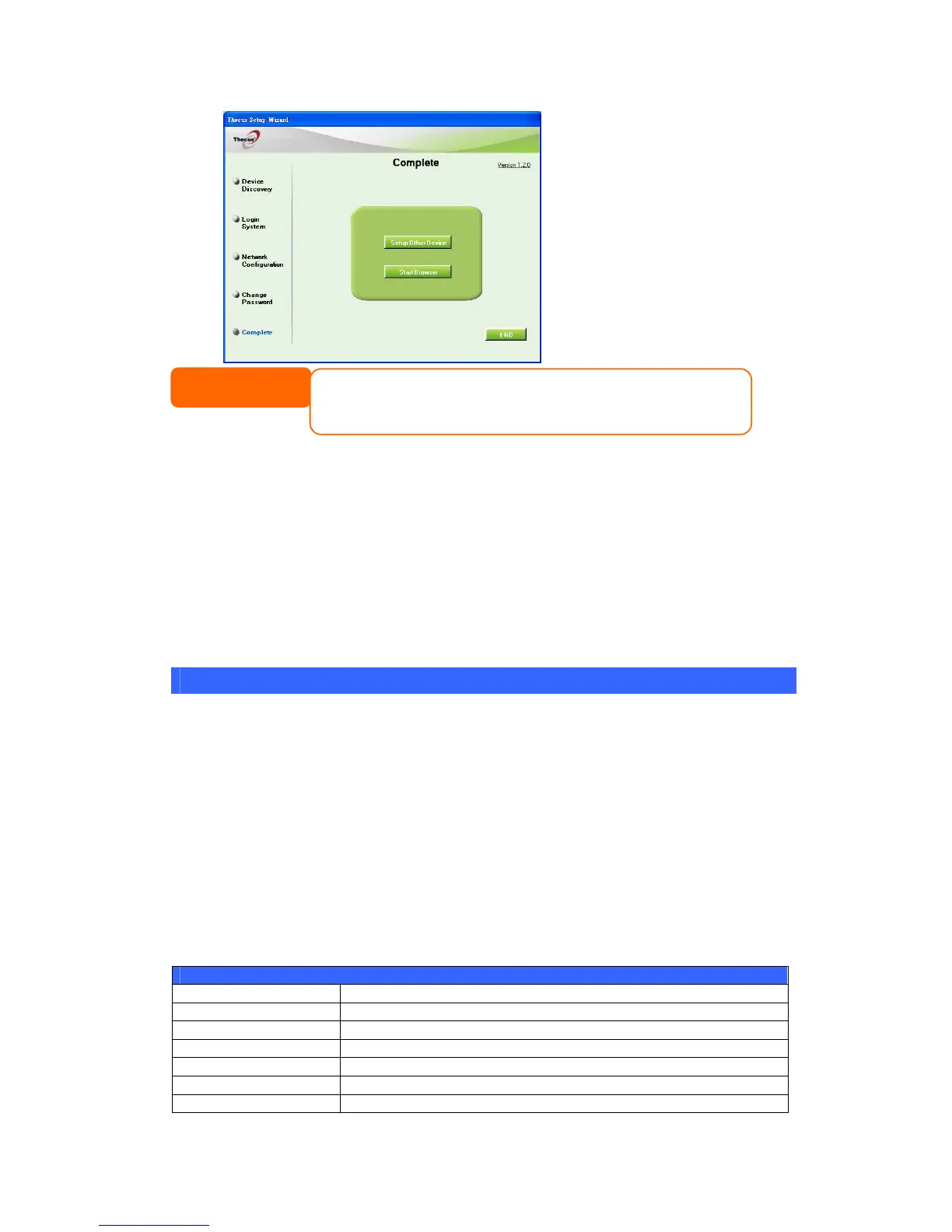

LCD Operation (N5500/1U4600/N7700 series/N8800 series)
The mentioned models above are equipped with an LCD on the front for easy status
display and setup. There are four buttons on the front panel to control the LCD
functions.
LCD Controls
Use the Up (▲), Down (▼), Enter () and Escape (ESC) keys to select various
configuration settings and menu options for Thecus IP storage configuration.
The following table illustrates the keys on the front control panel:
LCD Controls
Icon
Function Description
▲
Up Button Select the previous configuration settings option.
▼
Down Button USB copy confirmation display.
 Enter Enter the selected menu option, sub-menu, or parameter setting.
ESC Escape Escape and return to the previous menu.
There are two modes of operation for the LCD: Display Mode and Management
Mode.
Display Mode
During normal operation, the LCD will be in Display Mode.
Display Mode
Item Description
Host Name Current host name of the system.
WAN/LAN1 Current WAN/LAN1 IP setting.
LAN2 Current LAN2 IP setting.
Link Aggregation Current Link Aggregation status
System Fan1 Current system fan1 status.
System Fan2 Current system fan2 status.
NOTE
The Thecus Setup Wizard is designed for installation on systems running Windows
XP/2000/vista/7 or Mac OSX or later. Users with other operating systems will
need to install the Thecus Setup Wizard on a host machine with one of these
operating systems before using the unit.

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
