N0503:

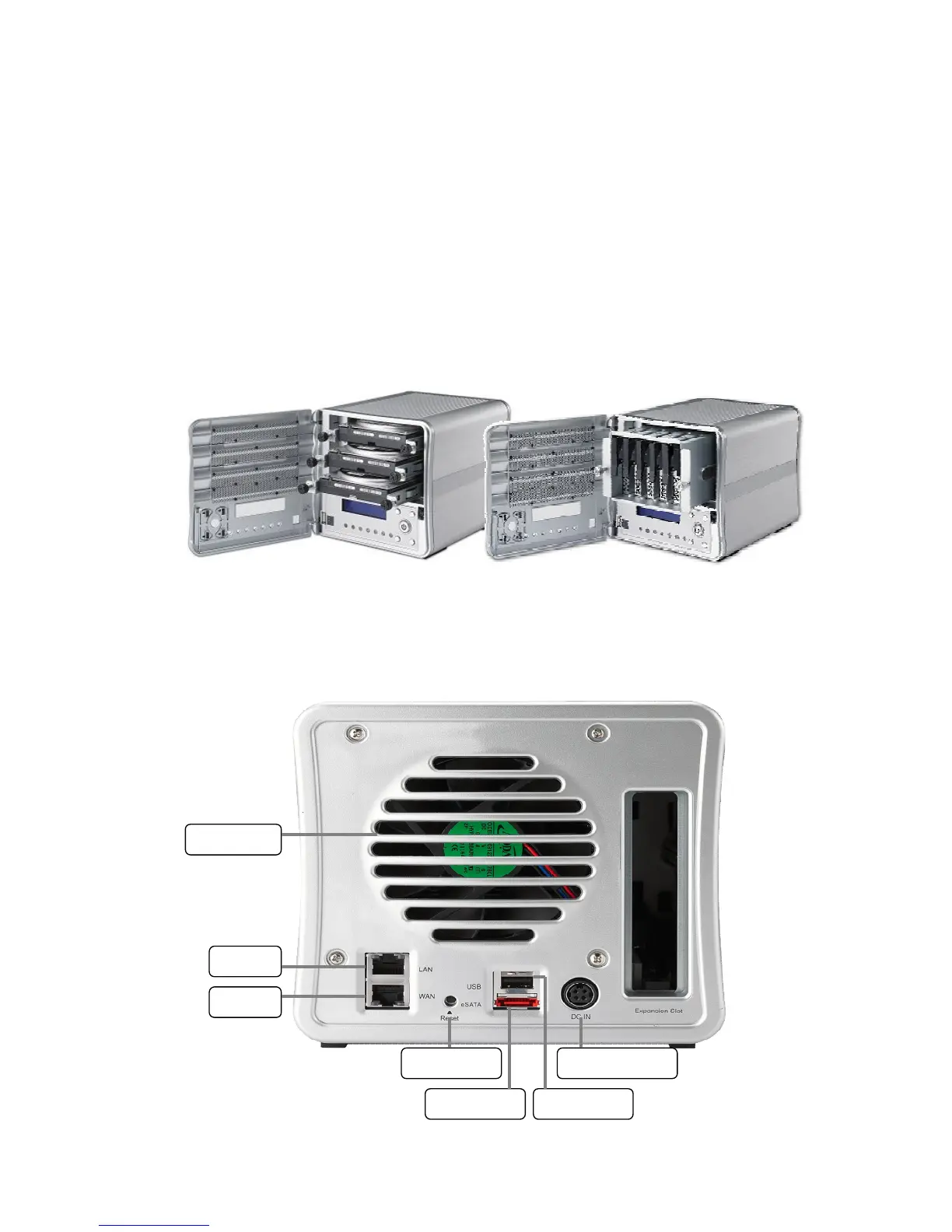

The N0503 supports both 2.5” and 3.5” Serial ATA (SATA) hard disks. To install a
hard disk into the N0503, follow the steps below:
1. Open front door of the N0503.
2. For 3.5” HDD
a. Get the hard drive rails and install them to your SATA hard disk(s).
b. Slide hard disks into the N0503 until they snap into place.
c. Replace the thumbscrews.
3. For 2.5” HDD
a. It has come with 2.5” HDD cage
b. Remove the 2.5” HDD tray
c. Install HDD into
d. Slide 2.5” HDD cage back in till it snap into place.
4. Replace the N0503 front cover.
Rear Panel
N0503:
The N0503 rear panel features ports and connectors.
System Fan
LAN2 Port
WAN/LAN
Reset Button
eSATA Port
USB Port
Power Connector

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
