Back Panel
Item Description
eSATA Port  eSATA port for high-speed storage expansion
USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers
WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a
switch or router
LAN2 Port  LAN2 port that can be used for connection sharing
System Fan  System fan that exhausts heat from the unit
Power Connector  Connect the included power cords to these connectors
Reset Button  Resets the N0503
 Immediately press and hold the Reset button on the back for 5
seconds. This will reset your network setting, password, and turn
off Jumbo Frame Support.

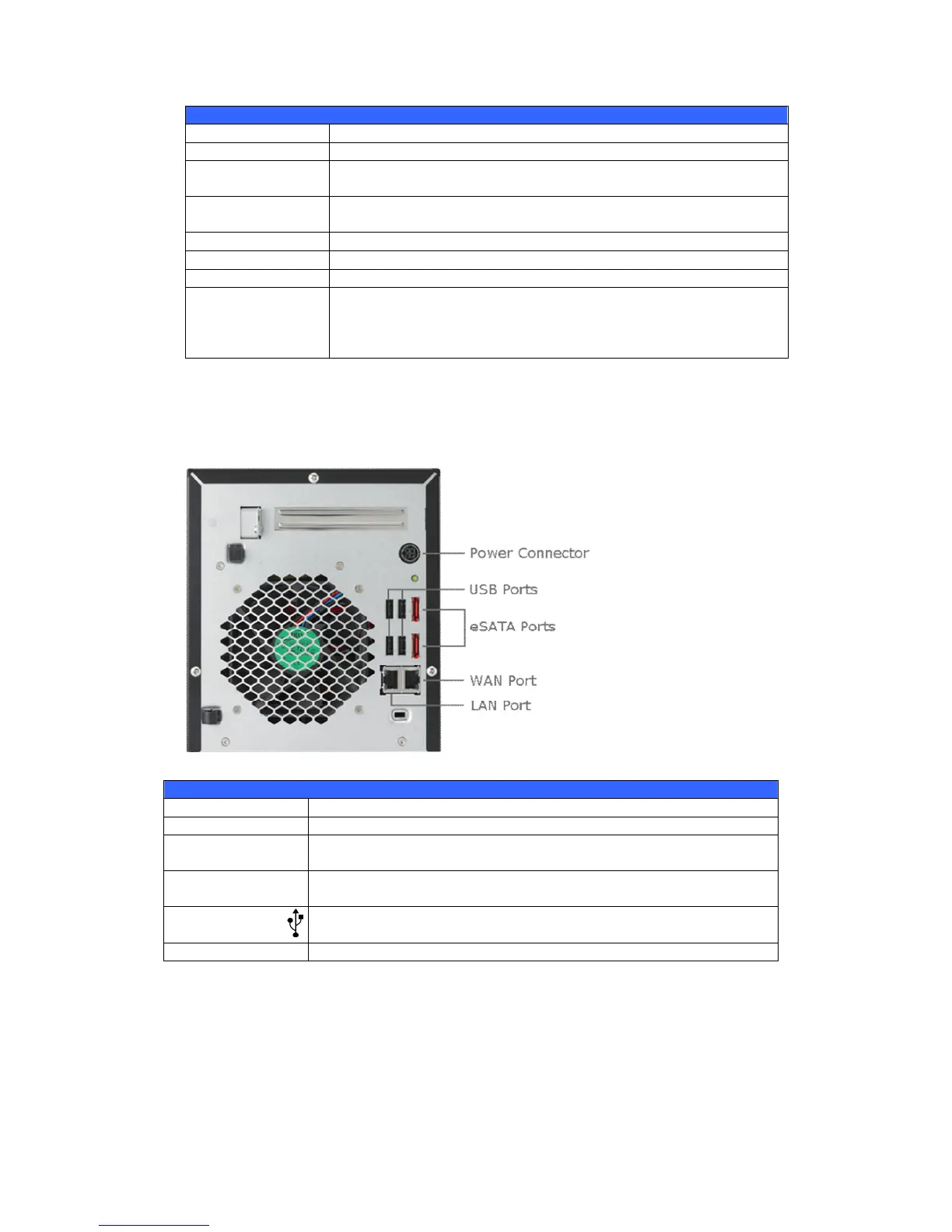

N4200 series:
The N4200 rear panel features ports and connectors.
Back Panel
Item Description
Power Connector  For connect the power adaptor
WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a
switch or router
LAN2 Port  LAN2 port for connecting to an Ethernet network through a switch
or router
USB Ports  USB 2.0 ports for storage expansion
eSATA Ports  eSATA port for high-speed storage expansion

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
