Thecus N0503 User Manual

25

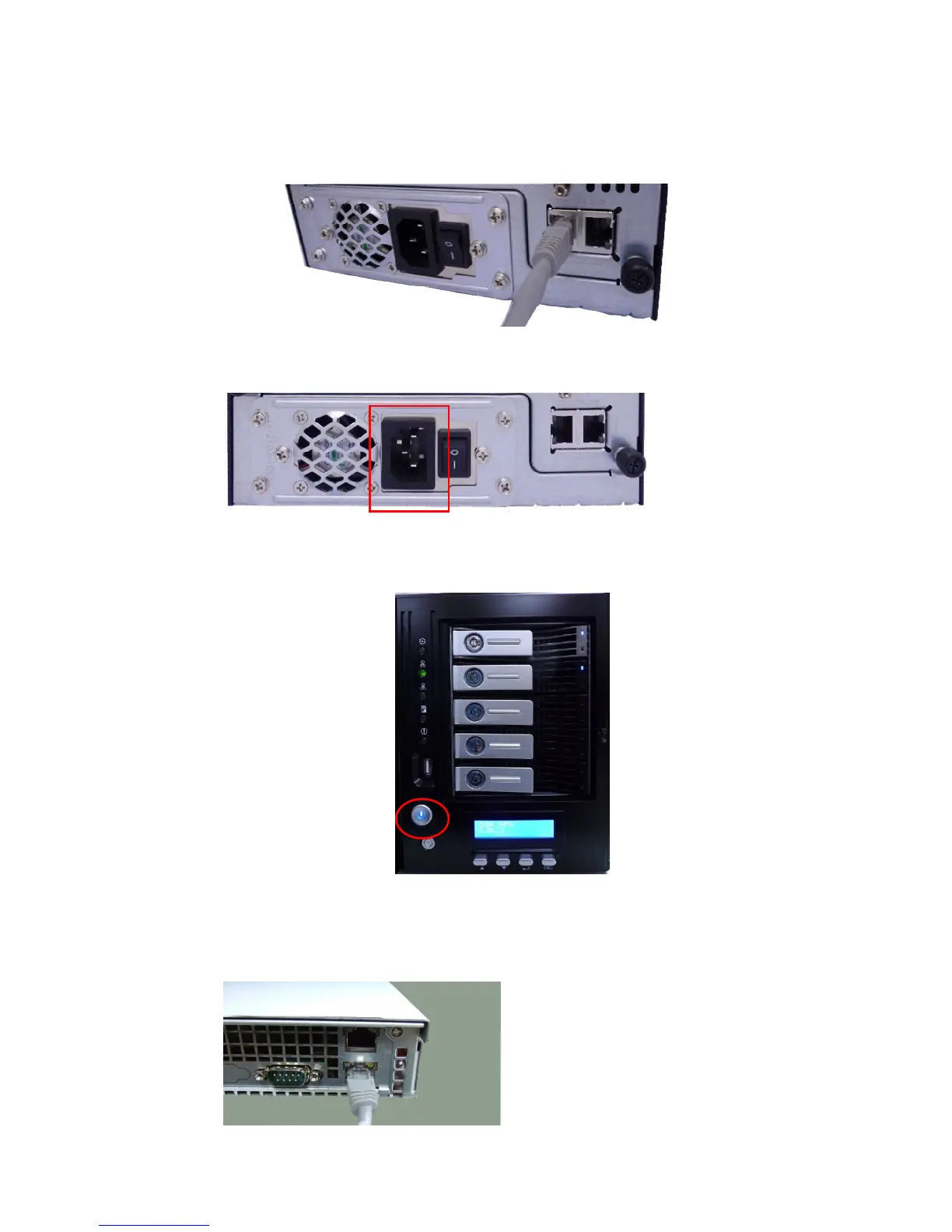

To connect the N5500 to your network, follow the steps below:
1. Connect an Ethernet cable from your network to the WAN/LAN1 port on the
back panel of the N5500.
2. Connect the provided power cord into the universal power socket on the back
panel. Plug the other end of the cord into a surge protector socket. Press the
power supply switch to turn on the power supply.
3. Press the power button on the Front Panel to boot up the N5500.
To connect the 1U4600 to your network, follow the steps below:
1. Connect an Ethernet cable from your network to the WAN/LAN1 port on the
back panel of the 1U4600.

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
