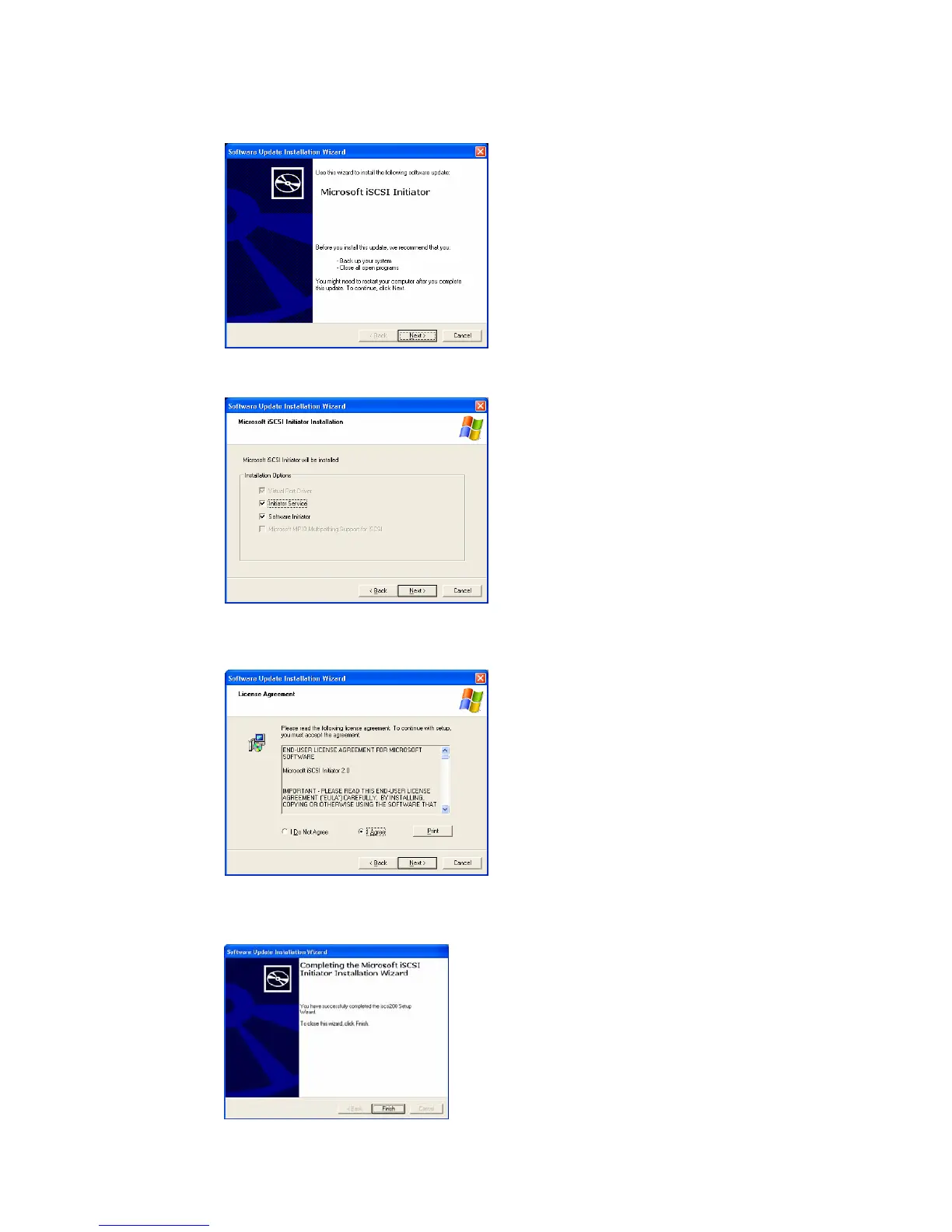

3. You will now install the iSCSI Initiator using the Setup Wizard. Click Next to

continue.

4. Leave the default selections and click Next.

5. Read the license agreement. To continue with the installation, click I Agree

and then click Next.

6. The iSCSI Initiator will now install automatically. Click Finish once

completed.
