Thecus N7700 User Manual

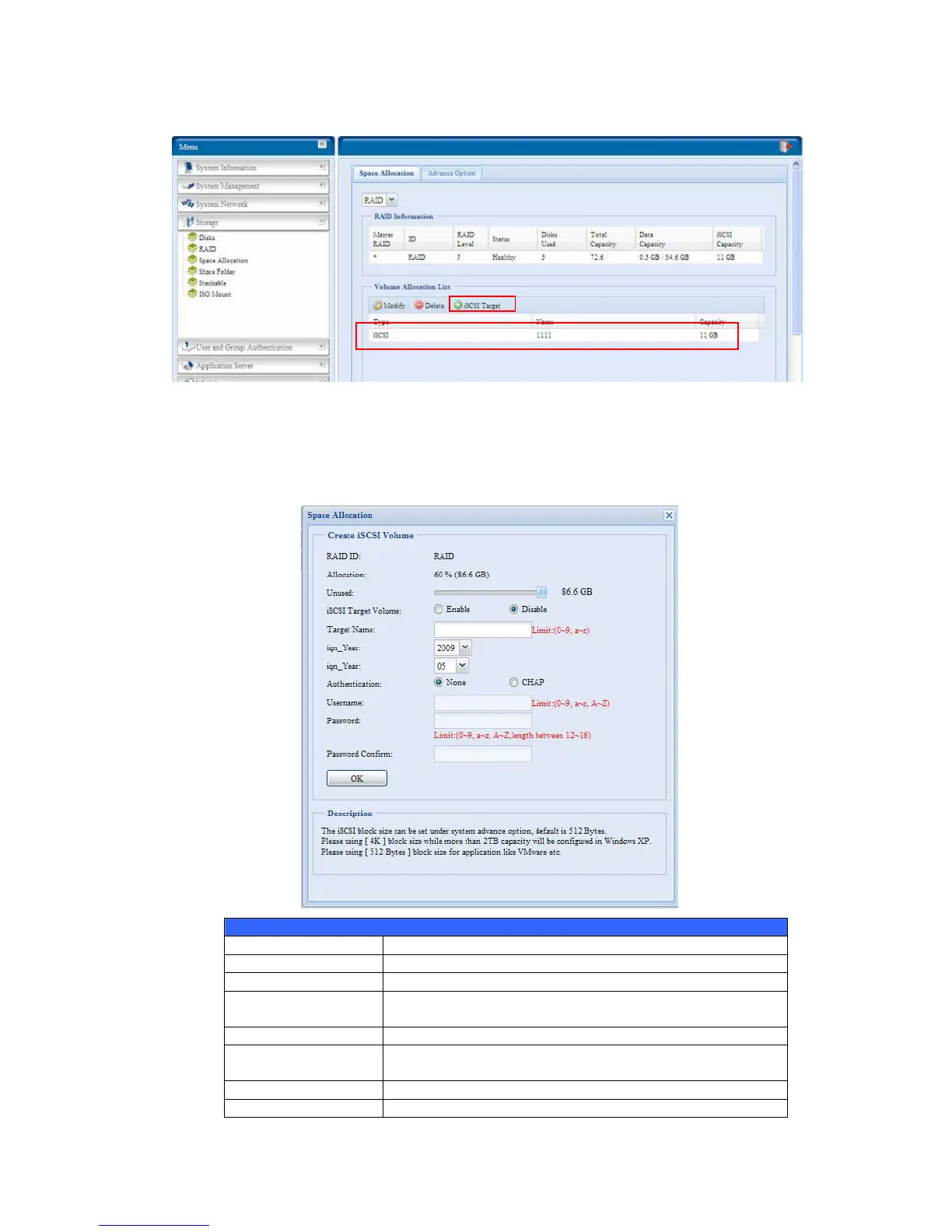

Allocating Space for iSCSI Volume
To allocate space for an iSCSI volume on the current RAID volume, follow the steps
below:
1. Under the Volume Allocation List, click iSCSI Target.
The Create iSCSI Volume screen appears.
Create iSCSI Volume
Item Description
RAID ID ID of current RAID volume.
Allocation Percentage and amount of space allocated to iSCSI volume.
Unused Percentage and amount of unused space on current RAID
volume.
iSCSI Target Volume Enable or Disable the iSCSI Target Volume.
Target Name Name of the iSCSI Target. This name will be used by the
Stackable NAS function to identify this export share.
Year Select the current year from the dropdown.
Authentication You may choose CHAP authentication or choose None.
61

Thecus N7700 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive size	3.5 \
Storage drive capacity	- GB
Storage drive interface	Serial ATA
Total installed storage capacity	14 TB
Number of storage drives installed	0
Number of storage drives supported	7
Flash memory	128 MB
Internal memory	2 GB
Internal memory type	DDR2
Processor frequency	1.86 GHz
iSCSI support	Yes
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Compliance industry standards	802.3ad
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Dimensions (WxDxH)	210 x 270 x 320 mm
Management platform	Linux
Compatible operating systems	Windows 7/2000/XP/2003/Vista UNIX/Linux Mac OS 9 / X
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %

Weight and Dimensions

Weight	8600 g
