Thecus N7700 User Manual

Next, input the target IP address of the stackable device and click the Discovery
button. The system will list available target volumes from the inputted IP address.
Once IP with volume have been set, you may need to input a valid user name and
password to validate your access rights. If there is no user name and password
needed to access target volume, then leave it blank.
Once IP with volume have been set, you may need to input a valid user name and
password to validate your access rights. If there is no user name and password
needed to access target volume, then leave it blank.

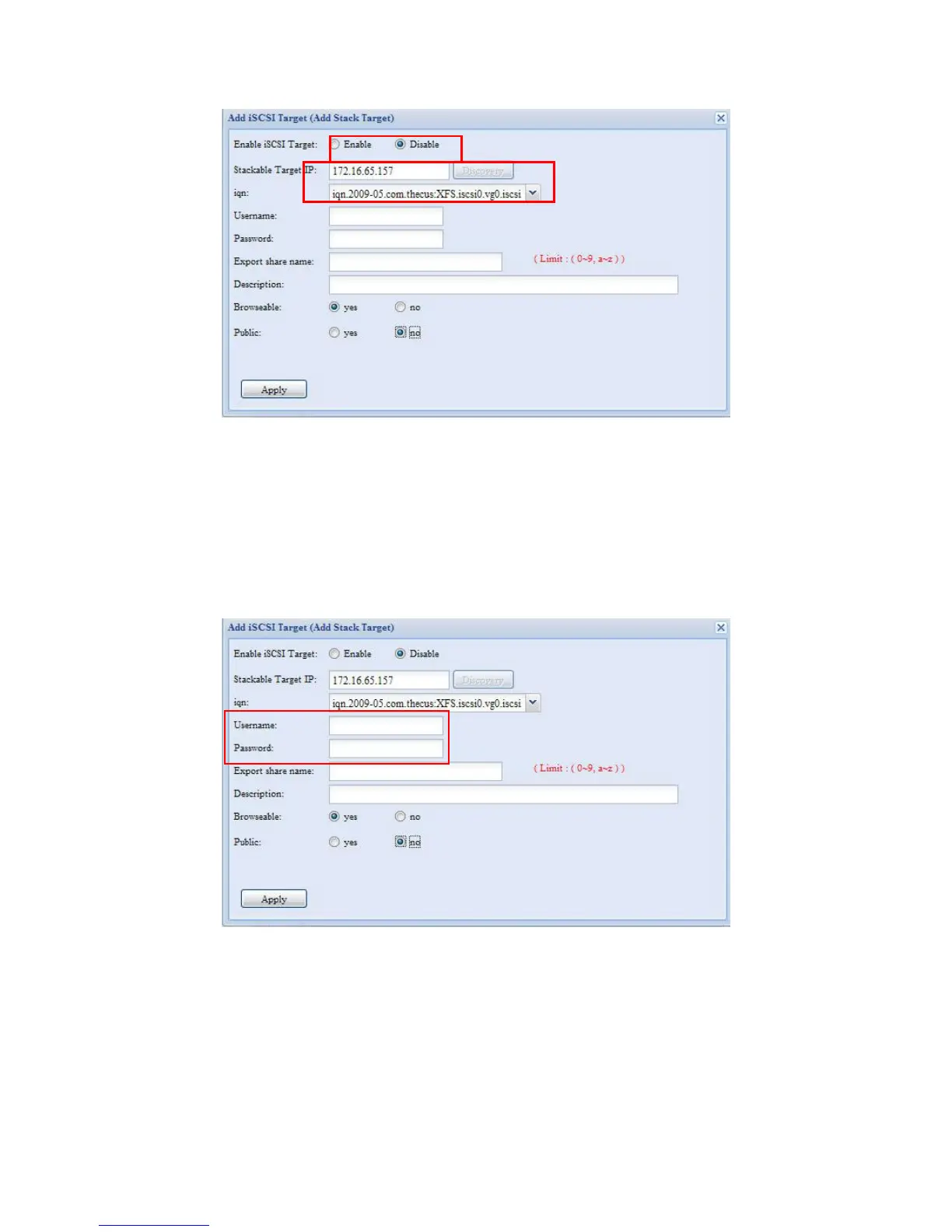

The Export share name will become the network share name and displayed
through network access such as SMB. You may refer the figures below to see the
result. Please note the naming limitation.
73

Thecus N7700 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive size	3.5 \
Storage drive capacity	- GB
Storage drive interface	Serial ATA
Total installed storage capacity	14 TB
Number of storage drives installed	0
Number of storage drives supported	7
Flash memory	128 MB
Internal memory	2 GB
Internal memory type	DDR2
Processor frequency	1.86 GHz
iSCSI support	Yes
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Compliance industry standards	802.3ad
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Dimensions (WxDxH)	210 x 270 x 320 mm
Management platform	Linux
Compatible operating systems	Windows 7/2000/XP/2003/Vista UNIX/Linux Mac OS 9 / X
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %

Weight and Dimensions

Weight	8600 g
