Back Panel
Item Description
eSATA Port  eSATA port for high-speed storage expansion
USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers
WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a
switch or router
LAN2 Port  LAN2 port that can be used for connection sharing
System Fan  System fan that exhausts heat from the unit
Power Connector  Connect the included power cords to these connectors
Reset Button  Resets the N0503
 Immediately press and hold the Reset button on the back for 5
seconds. This will reset your network setting, password, and turn
off Jumbo Frame Support.

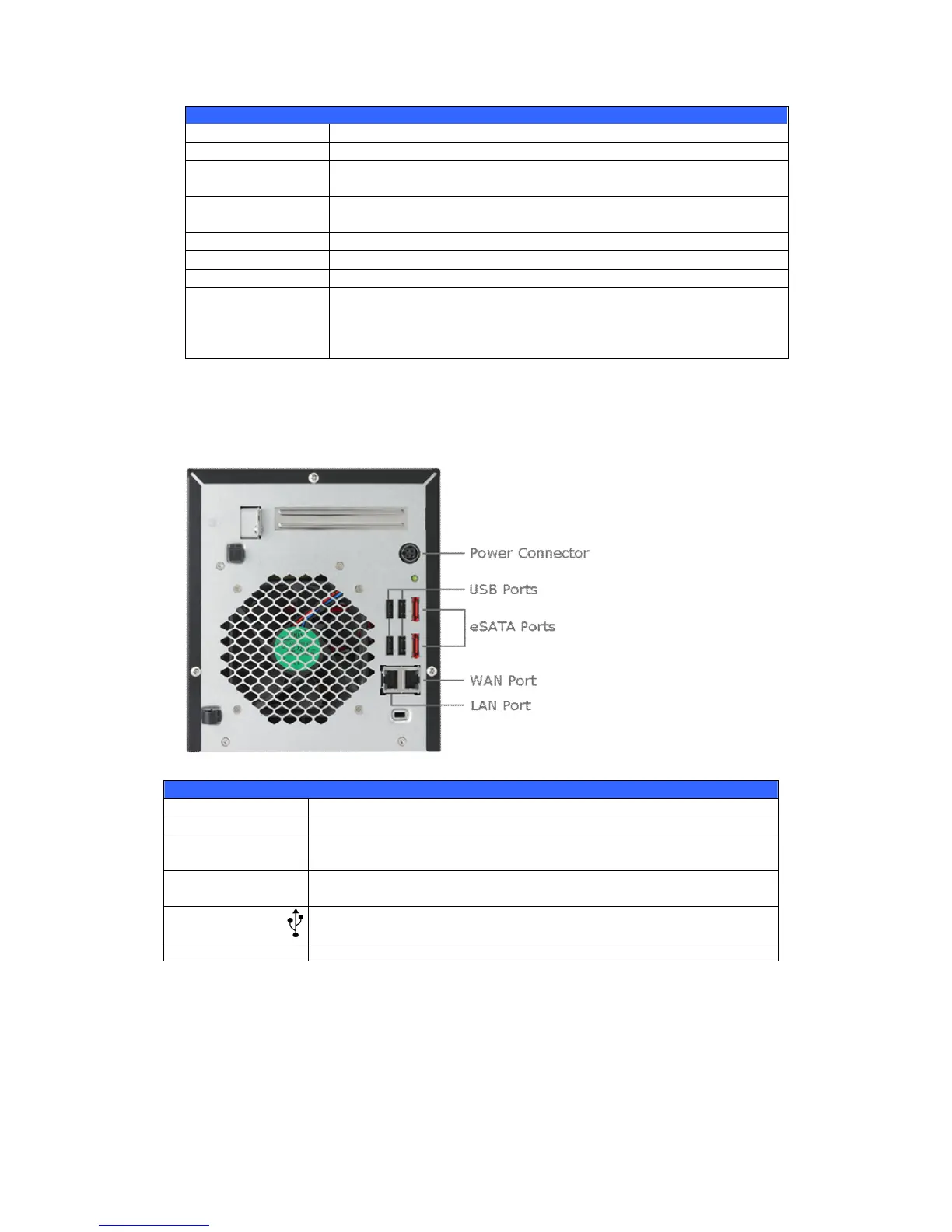

N4200 series:
The N4200 rear panel features ports and connectors.
Back Panel
Item Description
Power Connector  For connect the power adaptor
WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a
switch or router
LAN2 Port  LAN2 port for connecting to an Ethernet network through a switch
or router
USB Ports  USB 2.0 ports for storage expansion
eSATA Ports  eSATA port for high-speed storage expansion
