5
■
Ranges are dual rated for use on either 120/240 VAC or
120/208 VAC. See table for power ratings and circuit breaker
sizes based upon the supply voltage for each model:
POWER SUPPLY CONNECTORS
This appliance may be connected to the power supply by
installing flexible conduit or a power cord set. The electrical
rating of the power cord set (not supplied) must be 120/
240 volt, 40 amperes minimum for models REF/RES and 20
amperes minimum for models RDF/RDFS/RDSS. The power
cord set shall be marked “For Use with Ranges.”

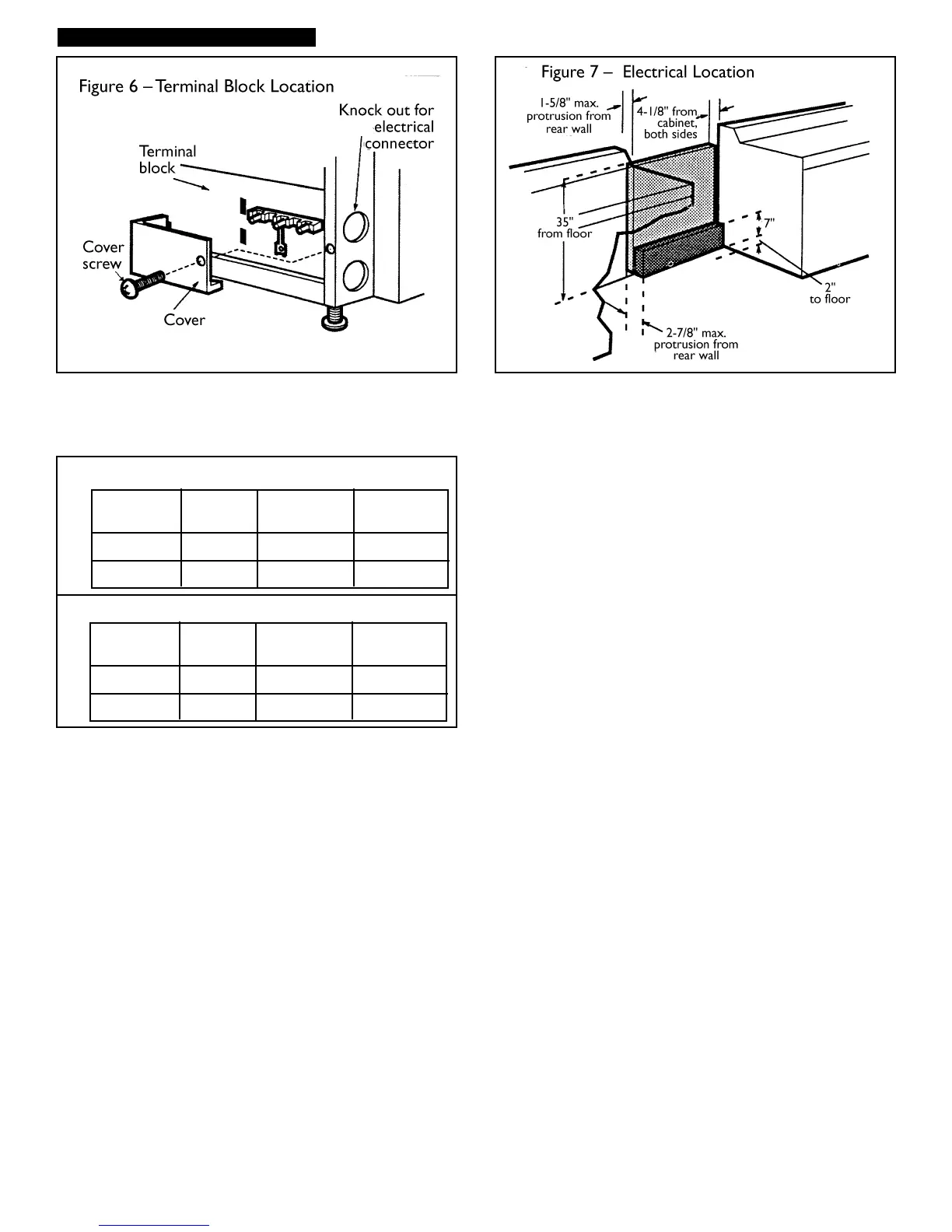

The power supply shall be connected to the range terminal
block compartment located in the lower left rear corner,
accessible by removing the storage drawer below the oven.
(See Figure 6.)
Remove the terminal box cover by removing the cover
screw. Install the proper connector in knockout(s) provided.
The electrical supply, including connectors or power cord,
can lie anywhere within the shaded area (See Figure 7.)
MODEL REDF30, RDFS30, RDSS30
VOLTS HZ RATING CIRCUIT
A.C. KW BREAKER
120/240 60 3.8 20 AMPS
120/208 60 2.9 15 AMPS
MODEL REF30, RES30
VOLTS HZ RATING CIRCUIT
A.C. KW BREAKER
120/240 60 12.0 40 AMPS
120/208 60 9.0 40 AMPS
ELECTRICAL
CONNECTION
(ALL
MODELS)
