6
■
The terminal provided will accept leads with ring terminals
or stripped conductors. A flat washer and cup washer must
be used with stripped leads (See Figure 8).
ELECTRICAL CONNECTION
A 3- or 4-conductor supply may be connected to the
terminal block. A 4-conductor supply shall be used only
when the range is installed in a mobile home or where
local codes do not permit grounding through the neutral.
3 WIRE LEAD CONNECTION
1. Remove upper nuts only from the terminal block studs.
Do not remove nuts which secure range internal
wiring leads.
2. Secure the neutral, grounded wire of the supply circuit,
to the center stud of the terminal block with nut. (Figure
9).
3. Secure the L1 (black) and L2 (red) power leads to the
outside terminal block studs (brass colored) with nuts.
4. Tighten nuts securely.
4-WIRE LEAD CONNECTION
1. Remove upper nuts only from the terminal block studs.
Do not remove lower nuts which secure range
internal wiring leads.
2. Remove ground strap screw and bend the strap up.
(See Figure 10a.)
3. Secure the neutral wire to the center stud of the
terminal block with nut. Tape neutral wire to strap, as
shown in Figure 10b, to insure strap does not contact a
grounded surface.
4. Secure the L1 (black) and L2 (red) power leads to the
outside terminal studs (brass colored) with nuts.
5. Secure the bare copper ground lead to the range chassis
using the ground screw previously used for the ground
strap.
6. Tighten all connections securely.
ELECTRICAL CONNECTION (ALL MODELS)

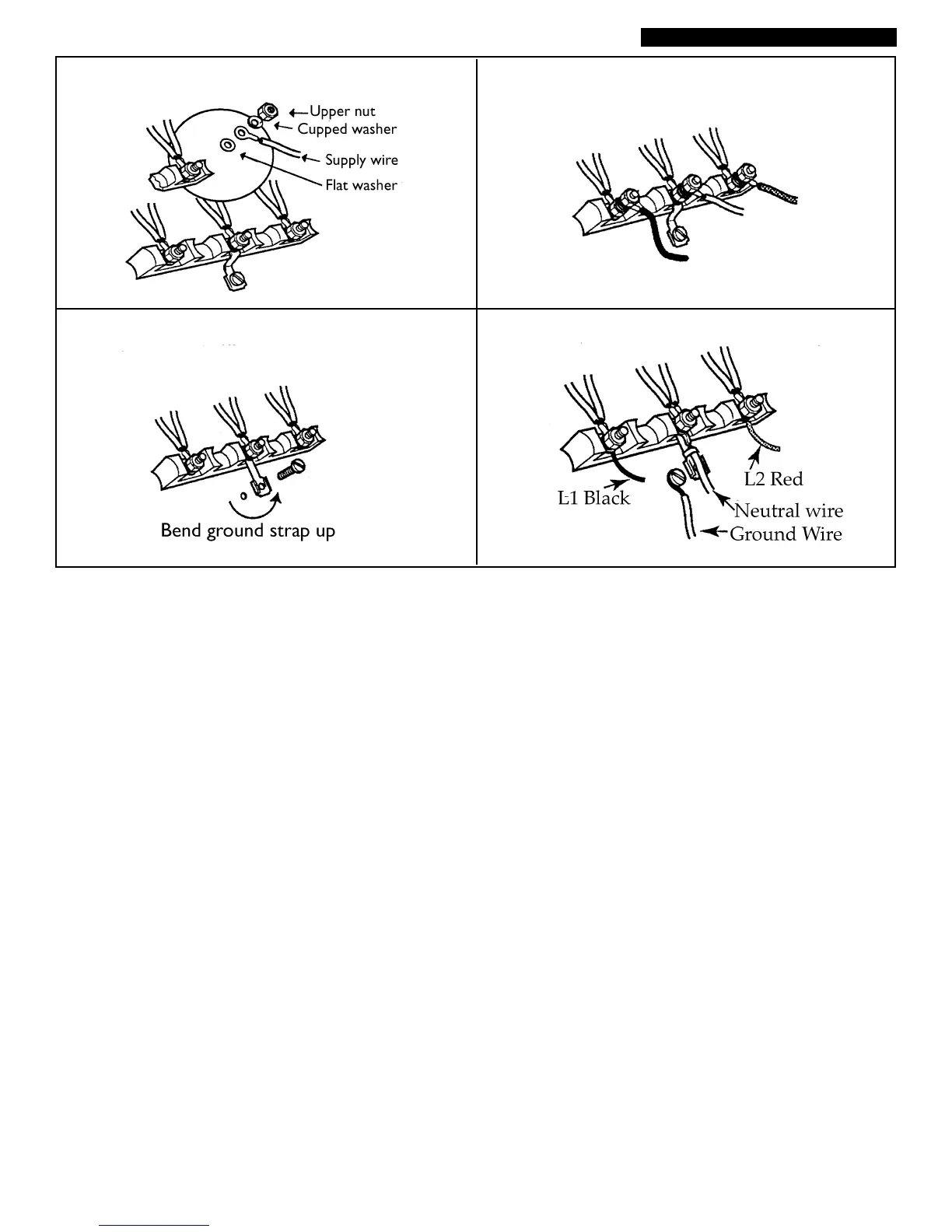

Figure 8 – Conductor Securement
Figure 9 – Wire Connection
Figure 10a – 4-Wire Connection Ground Strap Figure 10b – 4-Wire Connection Neutral Wire
