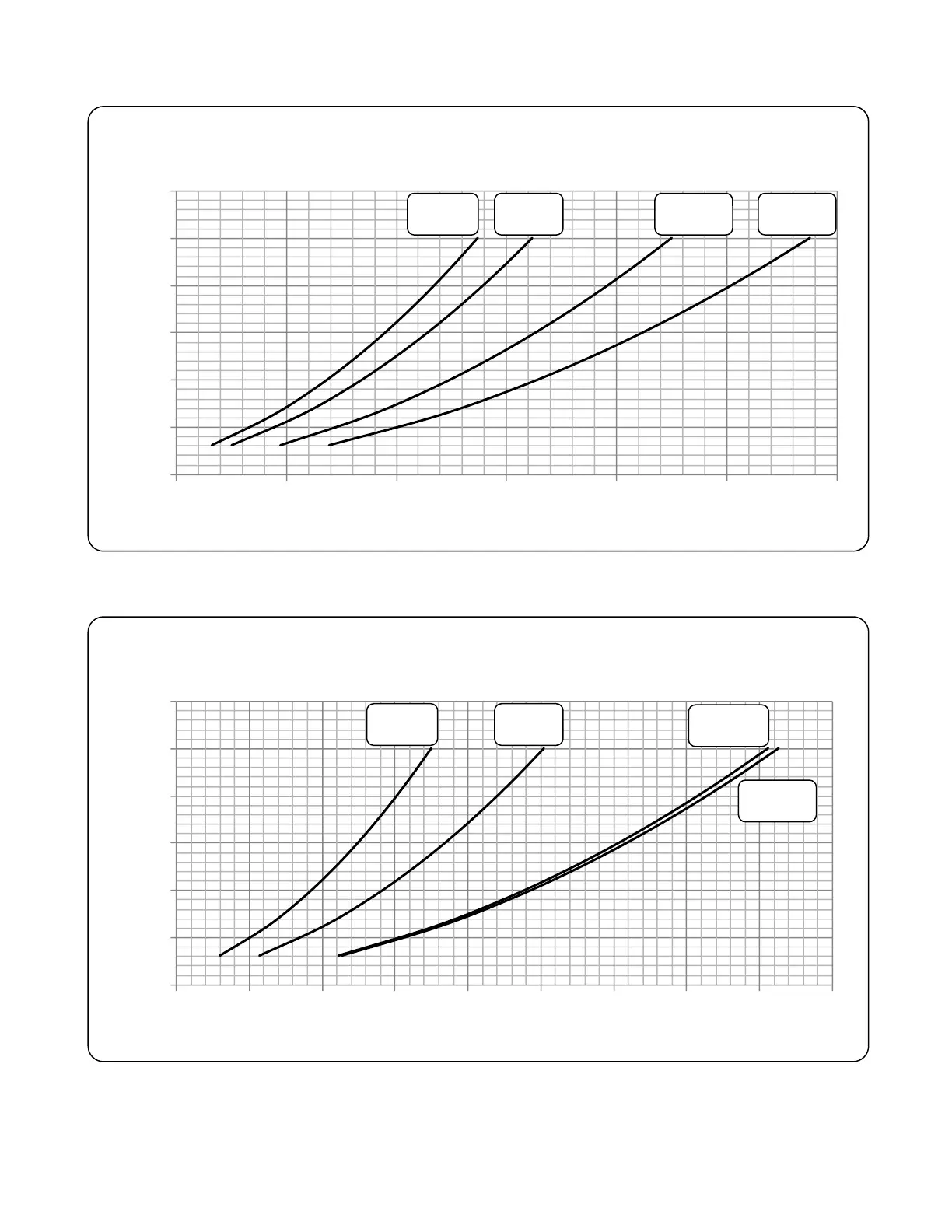

Figure 25 – Chiller Coolant Circuit Pressure Drop (7½-Ton and 10-Ton)
Figure 26 – Chiller Coolant Circuit Pressure Drop (13-Ton and 15-Ton)
0.0
5.0
10.0
15.0
20.0
25.0
30.0
10.0 20.0 30.0 40.0 50.0 60.0 70.0
Pressure Drop (psi)
Flow (gpm)
7½-Ton and 10-Ton Chiller Coolant Circuit Pressure Drop
(Based on Water at 50°F)
7½-ton
Std Flow
10-ton
Std Flow
7½-Ton
High Flow
10-Ton
High Flow
0.0
5.0
10.0
15.0
20.0
25.0
30.0
10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0
Pressure Drop (psi)
Flow (gpm)
13-Ton and 15-Ton Chiller Coolant Circuit Pressure Drop
(Based on Water at 50°F)
13-ton
Std Flow
15-ton
Std Flow
13-Ton
High Flow
15-Ton
High Flow
