Thermal Dynamics 1Torch SL100 Hand Torch - Page 53

Manual 0-2962 6-13 PARTS LISTS

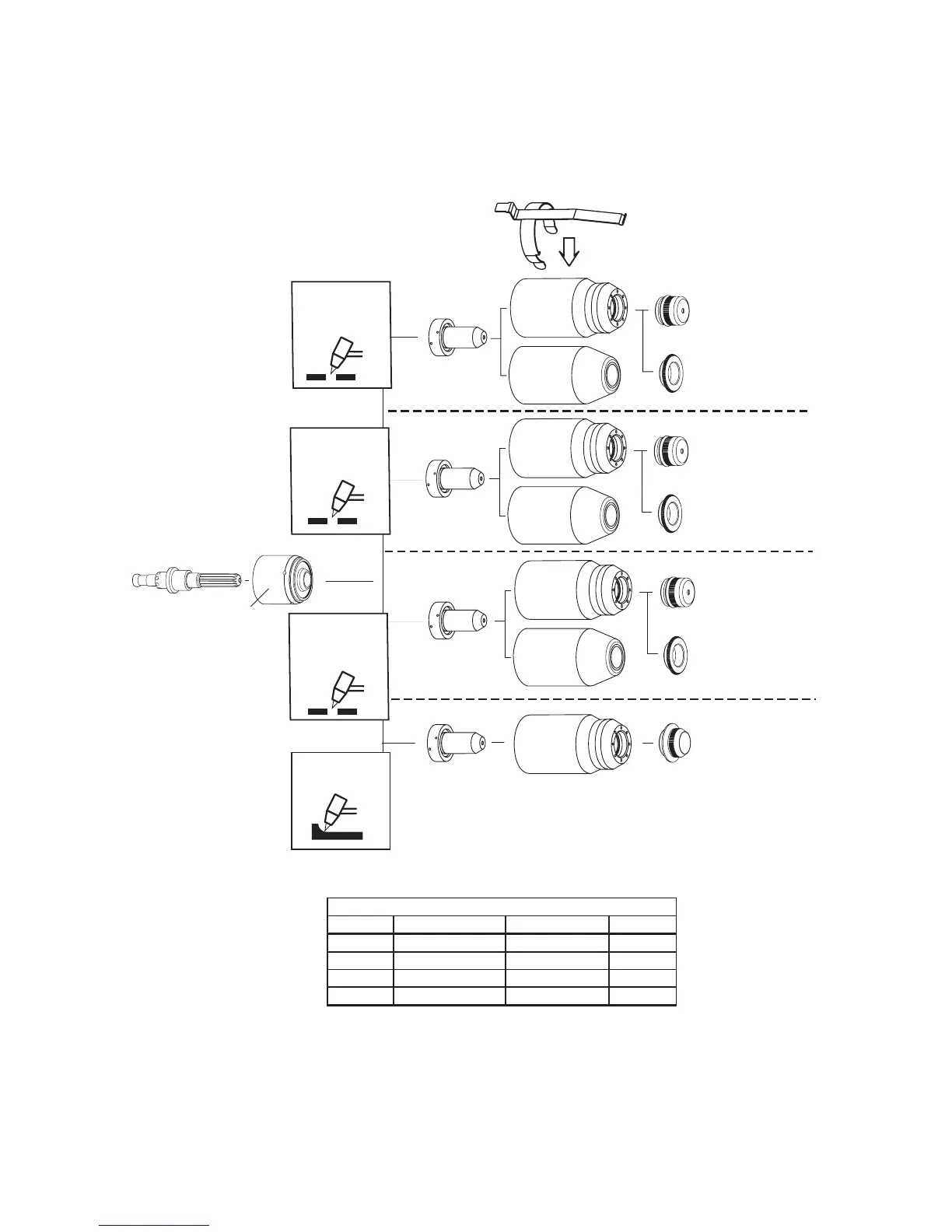

Automated Torch Consumables Selection
Starter
Cartridge
9-8213
Electrode
9-8215
Shield Cap, Deflector
9-8243
Tip A 9-8225 (40 Amps Max.)
Tip B 9-8226 (40 - 100 Amps)
Tip C 9-8227 (40 - 100 Amps)
Tip D 9-8228 (40 - 100 Amps)
Shield Cup, Gouging
9-8241
Shield Cap, Machine
40A 9-8245
20A 9-8205
30A 9-8206
40A 9-8208
Shield
Cup Body,
9-8237
50-55A 9-8209
60A 9-8210
70A 9-8231
80A 9-8211
90/100A 9-8212
Shield Cup
9-8218
Shield
Cup Body,
9-8237
50-60A
Tip:
Tips:
Tips:
Tips:
40-100A
GOUGING
CUTTING
Shield
Cup Body,
9-8237
Shield Cup
9-8218
Shield Cap, Deflector
9-8243
Shield
Cup Body,
9-8237
Shield Cup
9-8218
Shield Cap, Machine
50-60A 9-8238
Shield Cap, Machine
70-100A 9-8239
Art # A-03663
STANDOFF
CUTTING
STANDOFF
70-100A
CUTTING
STANDOFF
20-40A
Shield Cap, Deflector
9-8243
Ohmic Clip
9-8224
Output RangeDepth Width
Tip A40 Amps Max. ShallowNarrow
Tip B40-100 Amps Deep Narrow
Tip C40-100 Amps Moderate Moderate
Tip D40-100 Amps Shallo
wW
ide
Gouging Profiles
