When to Replace the
White AF2 Filter
• Replace only when filter is visually covered and overloaded with dust
particles.
• Every 4 to 6 weeks depending on local soil conditions and frequency of
vacuuming or about a dozen vacuumings.
• Since soil type varies from state to state, city to city, and even home to
home, the type of soil contained in your carpets will have an effect on
filter replacement frequency.
• e AF2 Electrostatic filter can appear to be completely soiled and
still remain 100% effective in filter and airflow efficiency. erefore,
as a general rule, we recommend usage for at least 4 weeks between
replacement.
• e “dirt” you see on the surface of the AF2 filter represents millions
of non water soluable and microscopic sized particulates that would
normally escape undetected into the surrounding environment with any
other standard type vacuum.
• During hot water extraction if urethane foam filter is not available.
Motorized Power Head Service
QUARTERLY CLEANING
• To keep your power head operating at its peak, we recommend the
following:

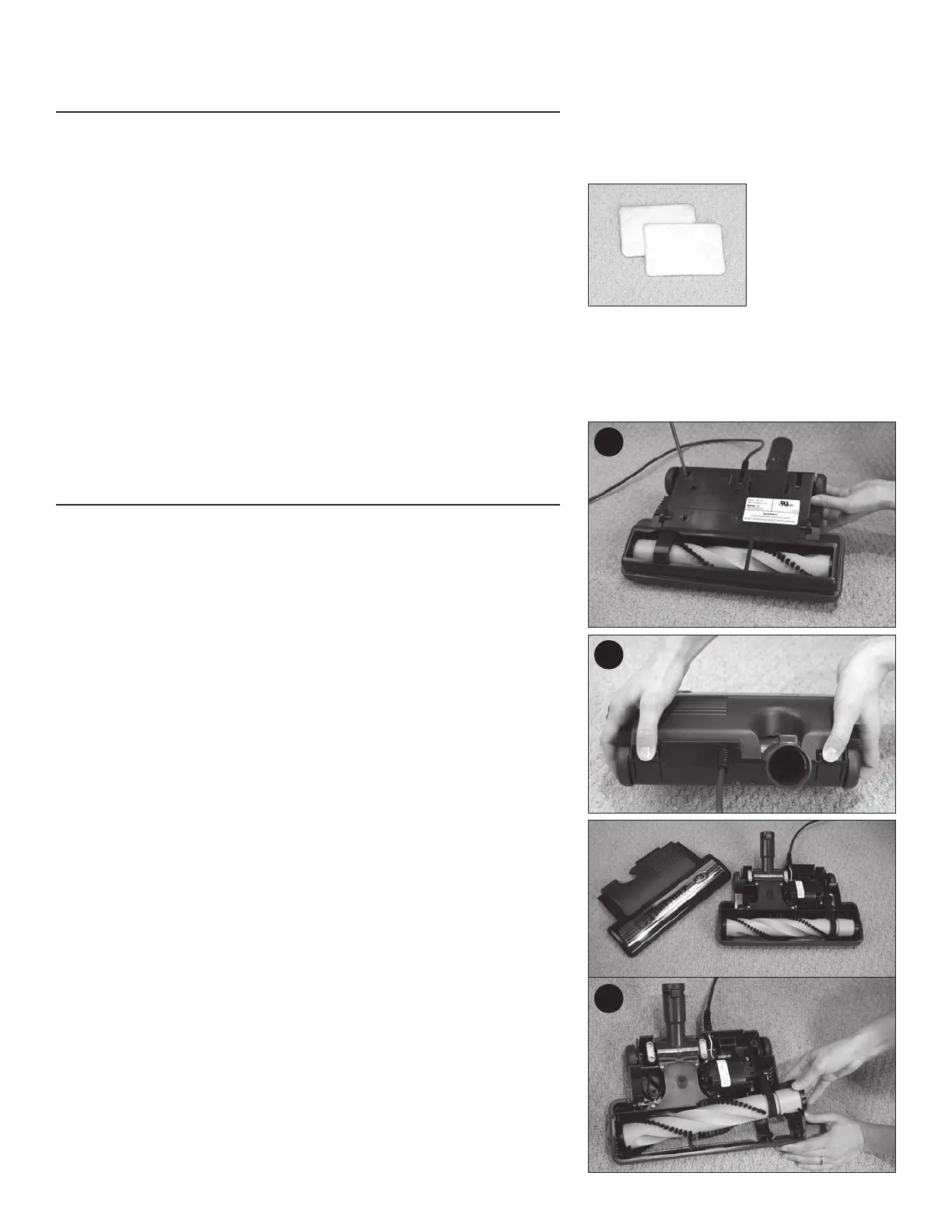

A) Remove the case top from your power head by first removing the
single screw from the underside of the unit. It is clearly marked with
engraving. B) At the rear of the unit are two tabs. Press tabs in and lift.
Case will now lift off. c) Remove the brush roll by simply lifting it
out of its cradle. e ends of the brush roll where the locating tabs are
should be cleaned throughly. Any carpet strings, hair or other debris
around the brush roll should be removed. d) Any dust build up around
the motor or air vents should be removed. Any dust build up around
the air passage should also be cleared.
• To reinstall the belt and brush roll put belt around the brush roll and
slip the belt over the motor shaft. en insert the end of the brush roll
furthest from the motor. (Note: the orientation tab is in the shape of
a half circle). Once this end is in place, roll the opposite end in place
until it pushes all the way in. It also has an orientation tab in the shape
of a rectangle. Spin brush roll until belt is on track.
• Replace the case top by inserting the front of the case nearest the brush
roll and then snap the back in place over the tabs. Replace the screw in
the underside of the unit.
• Periodically remove debris that may wrap around brush roll.
ANNUALLY
• Over a period of time the belt will stretch out and the brush roll will
wear. It is recommended that on an annual basis the belt and brush roll
be replaced. is will ensure the power head is operating at its peak
performance.
PARTS LIST:
1. Agitator Brush 05-342-00
2. Drive Belt 05-349-00
